Manual Pallet Stacker Adjustable Forks 1100lbs Cap. 63" Lift Height Y-3002
Apollolift Manual Pallet Stacker Adjustable Forks 1100lbs Cap. 63" Lift Height (6814948917416)
Apollolift Manual Pallet Stacker Adjustable Forks 1100lbs Cap. 63" Lift Height - APOLLOLIFT (6814948917416)
  • High-quality steel mast for rigidity and durability.
  • Adjustable forged forks.
  • Efficient pump for easier operation.
  • Foot and hand controls reduce physical strain on the operator.
  • Metal grid protects the user from lift chains.
  • Safety wheel guard and brake system ensure secure operation.

Manual Pallet Stacker Adjustable Forks 1100lbs Cap. 63" Lift Height Y-3002

Price:
$1,280.00
$1,280.00 $1,800.00
Save 28%
  • SKU:
    Y-3002
Manual Pallet Stacker Adjustable Forks 1100lbs Cap. 63" Lift Height Y-3002

Manual Pallet Stacker Adjustable Forks 1100lbs Cap. 63" Lift Height Y-3002

$1,280.00
$1,280.00 $1,800.00
Description
  • Compact design for pallets, perfect stacking, and pallet positioning as well as stocking and refilling shelves.
  • High-quality steel mast and strong steel construction ensure rigidity and durability.
  • Highly efficient pumps make the control easier to operate.
  • Metal grid protects users from lift chains.
  • With a safety wheel guard and brake system to ensure safety during operation.
  • Manually raise and lower loads with foot pump and handle operation.
*MANUAL STACKERS
MODEL NO. CAPACITY  LIFTING HEIGHT  WHEEL DIAMETER WEIGHT  PRICE EACH
A-3002 1100 lbs  63'' 5.8'' 355 lbs $1600
A-3003 2200 lbs 63'' 5.8'' 550 lbs $1900
*SHIPS ASSEMBLED VIA MOTOR FREIGHT

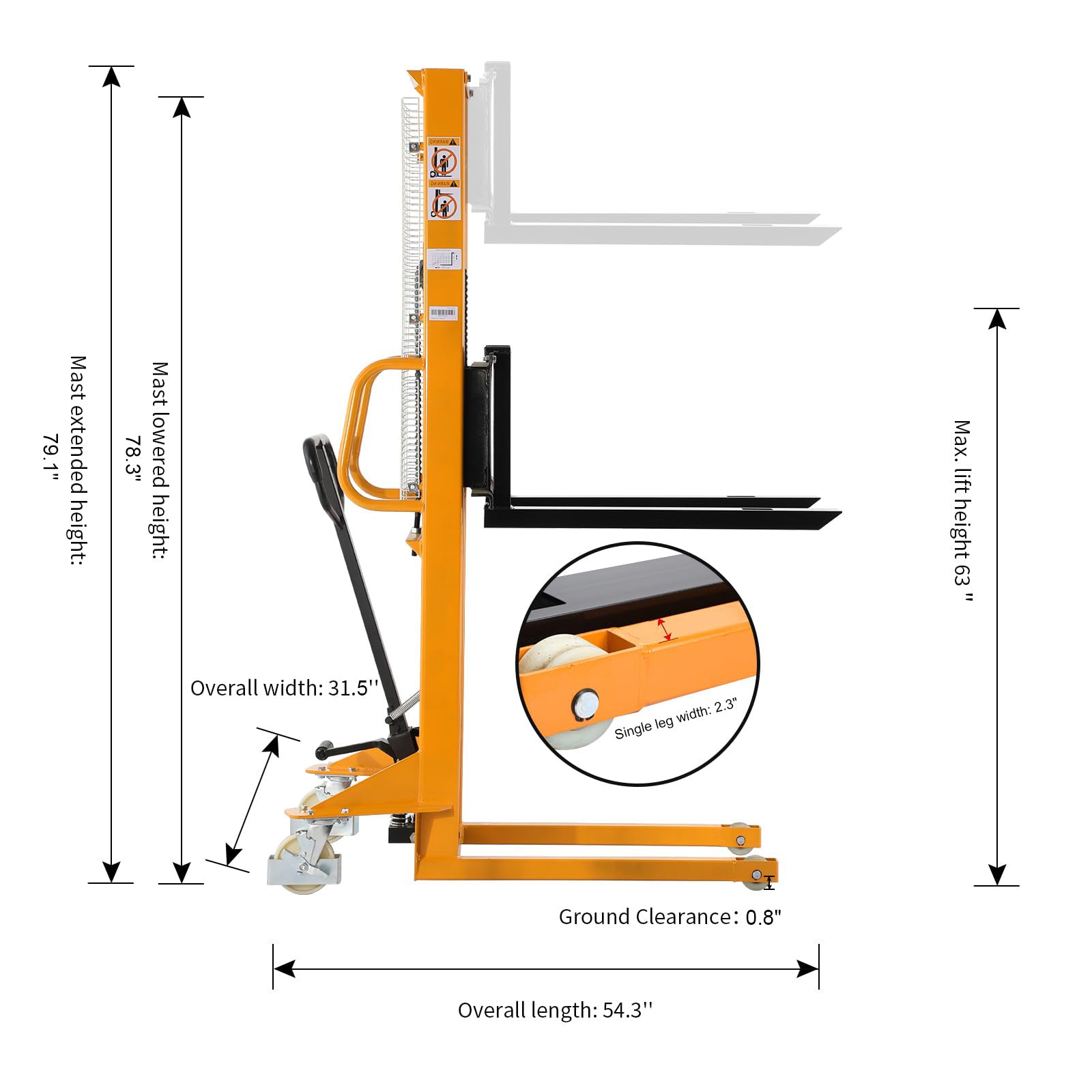

DIMENSIONS

  • Overall width: 31.7''
  • Overall length: 54.3''
  • Load center: 19.7''
  • Recommended Aisle Width: 75.4"
  • Turning radius: 48.6''
  • Inner legs width: 16.5''
  • Outer legs width: 20.5''

MAST

  • Lifting height: 63''
  • Mast lowered height:78.7''
  • Mast extended height: 79''

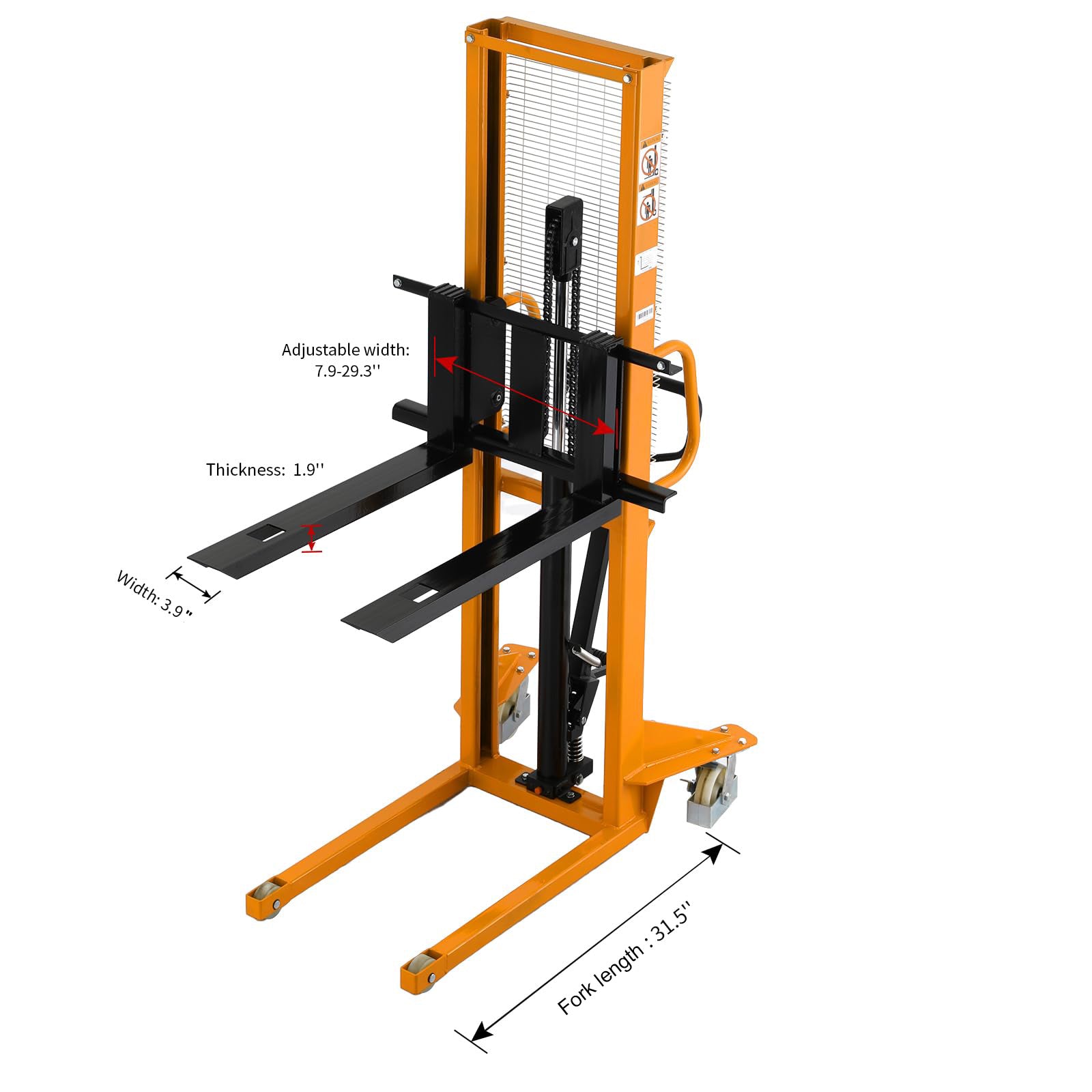

FORKS

  • Adjustable width: 7.9-29.3''
  • Thickness: 1.9''
  • Width: 3.94''
  • Length: 31.5''
  • Fork lowered height: 3.5''

FEATURES

  • Foot Operated Pump: Lift Height nearly 1'' per stroke.
Warranty

Warranty

1-Year Warranty (from delivery date):

  • First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
  • 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
  • After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).

Special Warranty Terms:

  • Spare Parts: 3-month warranty.
  • Batteries: 6-month warranty.
  • Used Machines: 3-month parts-only warranty (no labor or returns).
  • Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.

Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
