Manual Hydraulic Stacker Pallet Stacker Adjustable Forks 2200lbs Cap. 63" Lift Height Y-3003
• High-quality steel mast for rigidity and durability.
• Adjustable forged forks.
• Efficient pump for easier operation.
• Foot and hand controls reduce physical strain on the operator.
• Metal grid protects the user from lift chains.
• Safety wheel guard and brake system ensure secure operation.
Manual Hydraulic Stacker Pallet Stacker Adjustable Forks 2200lbs Cap. 63" Lift Height Y-3003
Price:
Regular price
$1,760.00
Sale price
$1,760.00
Regular price
$2,100.00
Save 16%
Estimated Shipping Widget will be displayed here!
Description
Warranty
Features
- Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
- High quality steel mast and strong steel construction ensures rigidity and durability.
- High efficient pumps makes the control easier to operate.
- Metal grid protects user from lift chains.
- With safety wheel guard and brake system to ensure safety during operation.
- Manually raise and lower loads with foot pump and handle operation.
| *MANUAL STACKERS | |||||
| MODEL NO. | CAPACITY | LIFTING HEIGHT | WHEEL DIAMETER | WEIGHT | PRICE EACH |
| A-3003 | 2200 lbs | 63'' | 5.8'' | 550 lbs | $1900 |
| A-3002 | 1100 lbs | 63'' | 5.8'' | 355 lbs | $1600 |
| *SHIPS ASSEMBLED VIA MOTOR FREIGHT | |||||
DIMENSIONS
- Overall width: 37.6''
- Overall length: 66.1''
- Load center: 19.7''
- Recommended Aisle Width: 84.5"
- Turning radius: 48.6''
- Inner legs width: 12.7''
- Outer legs width: 21.8''
MAST
- Lifting height: 63''
- Mast lowered height: 82.3''
- Mast extended height: 82.3''

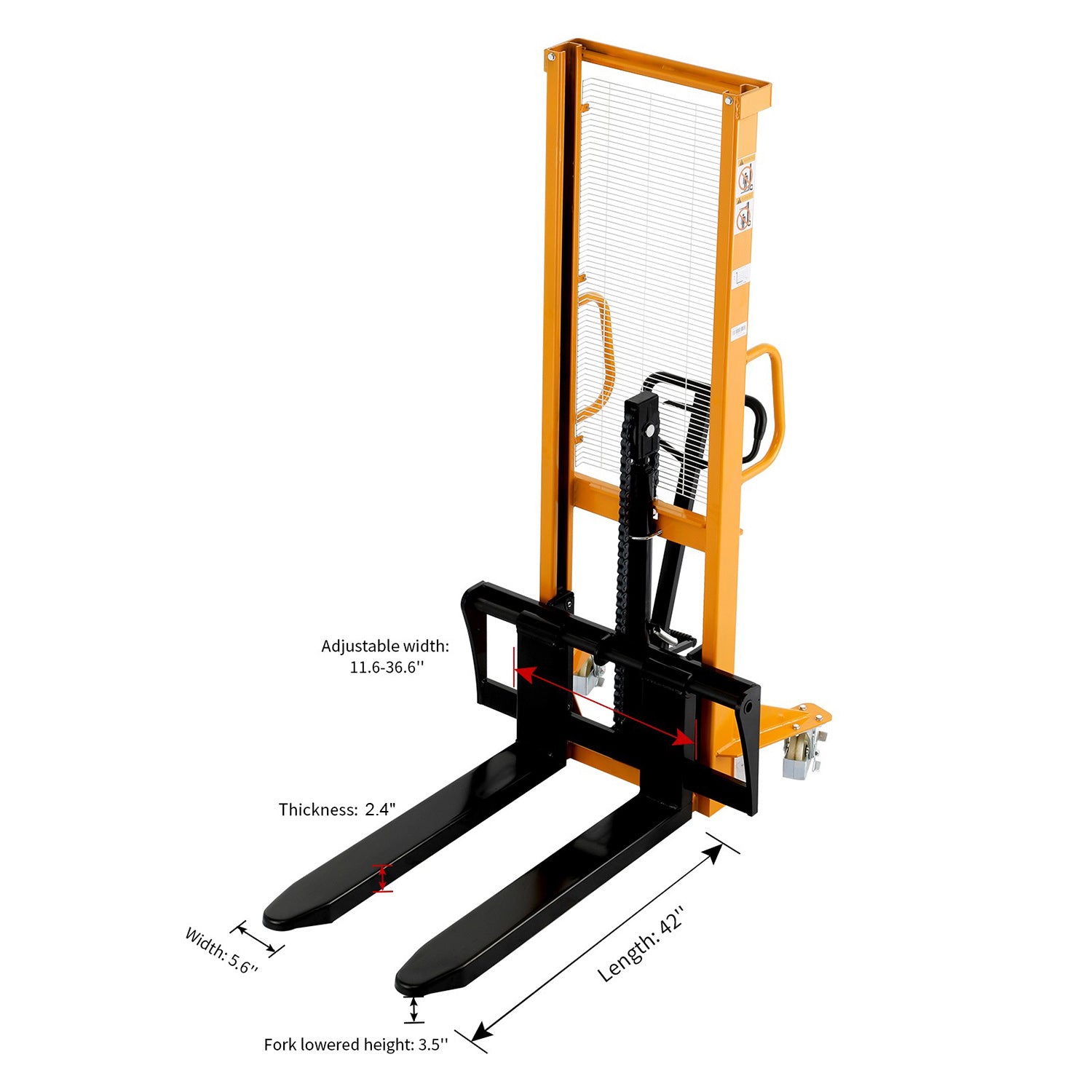

FORKS
- Adjustable width: 11.6-36.6''
- Thickness: 2.4''
- Width: 5.6''
- Length: 42''
- Fork lowered height: 3.5''
FEATURES
- Foot Operated Pump: Lift Height nearly 1'' per stroke.
Warranty
1-Year Warranty (from delivery date):
- First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
- 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
- After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).
Special Warranty Terms:
- Spare Parts: 3-month warranty.
- Batteries: 6-month warranty.
- Used Machines: 3-month parts-only warranty (no labor or returns).
- Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.
Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
