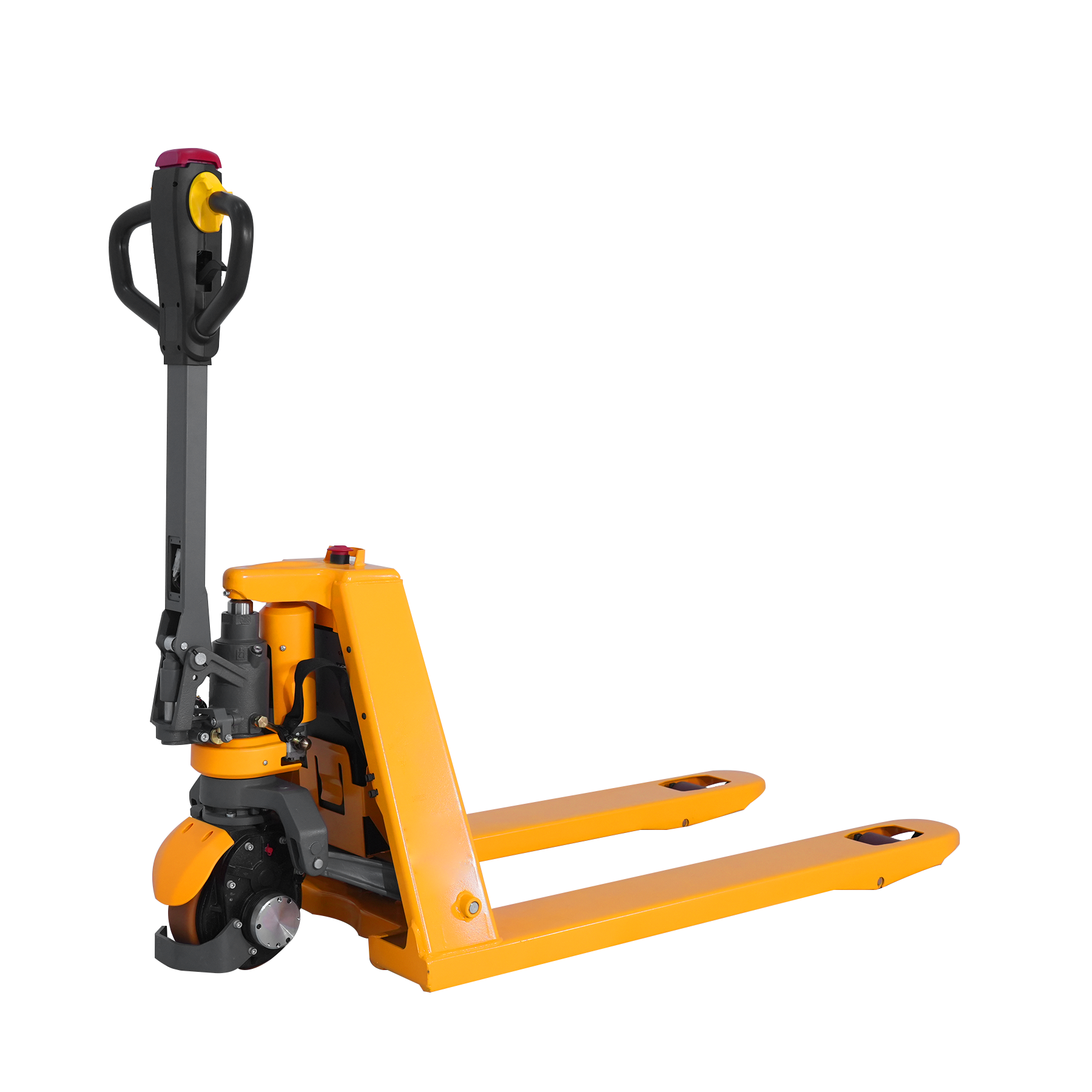

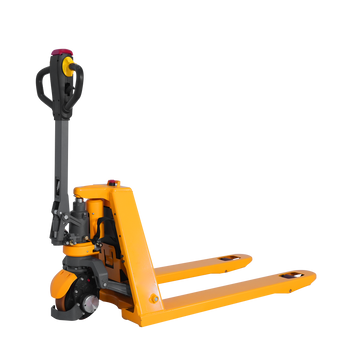

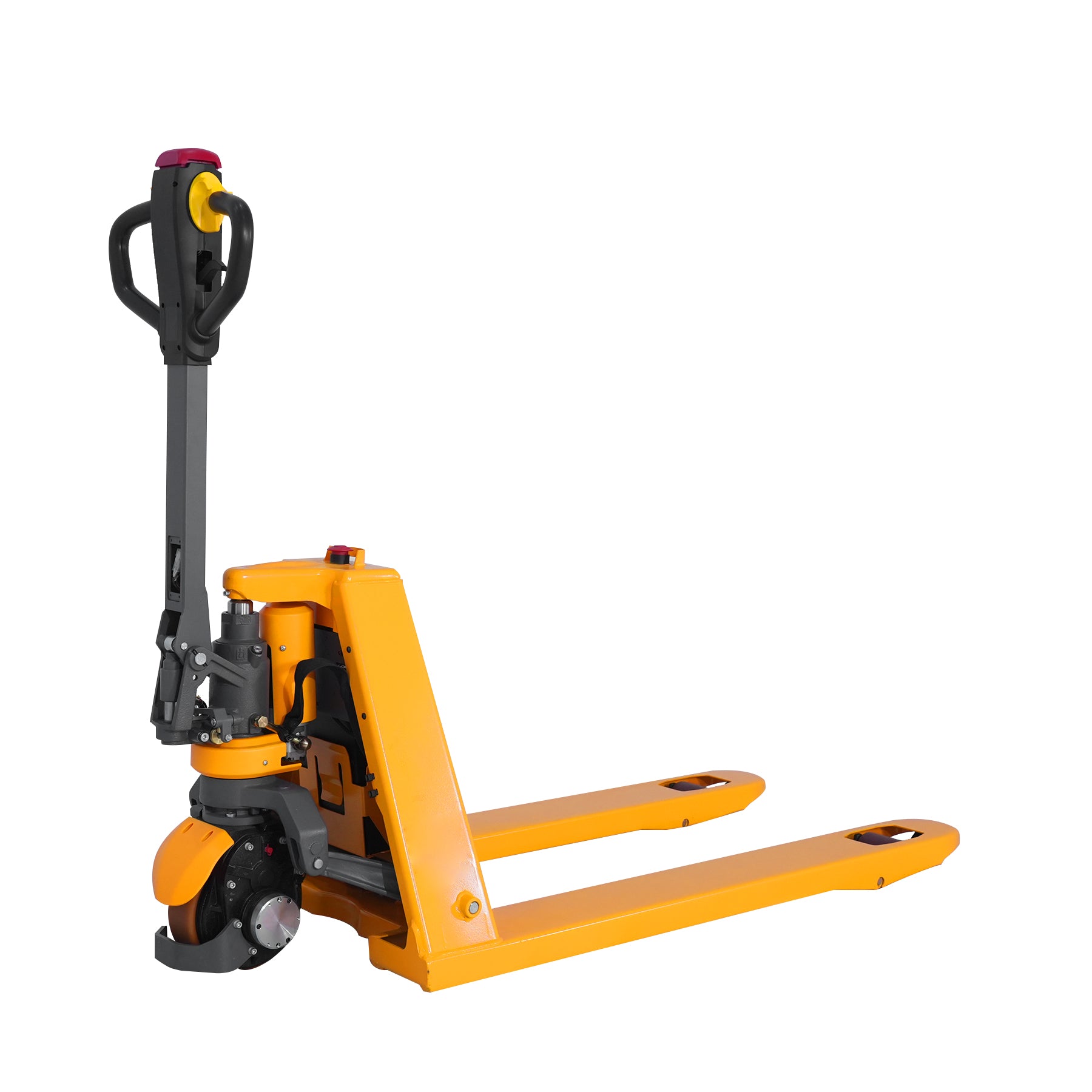

Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck Y-1034
Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck (6814936662184)
Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck (6814936662184)
Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck (6814936662184)
  • Lithium battery: 24V/20AH.
  • Ruyi handle with bully switch.
  • High-quality emergency switch (key switch).
  • Integrated rocker arm for even stress and long-lasting use.
  • Horizontal-mounted motor for easy maintenance.
  • External battery charger connector for separate charging.
  • Single fork roller for smooth operation.

Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck Y-1034

Price:
$1,510.00
$1,510.00 $1,680.00
Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck Y-1034

Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck Y-1034

$1,510.00
$1,510.00 $1,680.00
Description

Powered navigation for urban deliveries, small markets, and limited stock space with reliable function.

  • Quick-change battery reduces downtime.
  • Push-button lift control and forward/reverse thumb wheels on the handle.
  • 3 hours of service per charge. 3 hours charge time. Battery life may depend on the usage and environment.
  • 24 hours continuous use with 1 extra battery.
  • Gradeability(laden/unladen): 5%/20%

* BATTERY POWERED PALLET TRUCKS

MODEL NO. FORK SIZE L x W LOAD CAPACITY WT.(LBS) RECHARGEABLE
BATTERY		 DRIVE
MOTOR		 WHEEL
DIAMETER		 PRICE EACH
Y-1034 48x27" 3,300 lbs. 251 24V/20AH 0.75 kw DC 8.3"/3.15" $1,510
Y-1037 48x27" 3,300 lbs. 290 24V/20AH 0.75 kw DC 8.27"/2.95" $1,680

*Includes one lithium-ion battery and charger

*REPLACEMENT PARTS

MODEL NO. DESCRIPTION SPECIFICATION WT.(LBS) PRICE EACH
S-1001 Replacement Lithium Ion Battery 24V/20AH 18 $420
S-1009 Replacement Charger 24V/6A 11 $135

DIMENSIONS:

  • Overall: 65" x 27"x47.24" (L xWx H)
  • Lowered height: 3.3''
  • Raised height: 7½"

FORKS:

  • Actual: 48 x 27"
  • Width: 6.3"
  • Thickness: 2.1"
  • Distance Between Forks (Inside): 14.37"

FEATURES:

  • Non-marking polyurethane wheels. 180° steering arc.

SPEED:

  • Empty: 2.8mph
  • Loaded: 2.67 mph

CHARGING:

  • Charger plugs into standard 110V-120V outlets.
  • Fully charge the battery before use to avoid damaging cells.
  • Charge the truck once a month even if it's without use.
  • LED light on charger shows battery charge status.
    • Green: Fully Charged
    • Red: Charging

SPECIFICATIONS:

  • Not explosion proof.
  • This truck is designed to be used on flat ground. Avoid uneven grounds with potholes, and large ramps.
  • Temperature range of working environment 50˚F~104˚F.
