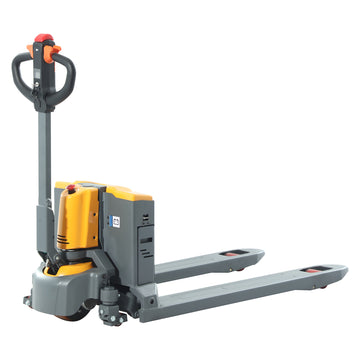

Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck Y-1037
-
Low noise, energy-saving, and environmentally friendly.
-
Compact size with a simple, sturdy design.
-
Durable metal outer cover resists impact damage.
-
High-performance integrated rocker arm enhances strength and stability.
-
Multi-function control handle combines lift, lower, move, emergency reverse, electric lock, and display functions.
Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck Y-1037
Price:
Estimated Shipping Widget will be displayed here!
Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck Y-1037
Small turning radius and strong power allow easy operation in tight spaces like car trunks, containers, urban deliveries, or small markets..
- Side-mounted battery design allows for a 10-second swap.;
- Push-button lift control and forward/reverse thumb wheels on handle.
- 3 hours service per charge. 3 hours charge time. Battery life may depend on the usage and environment.
- 24 hours continous use with 1 extra battery.
- Gradeability(laden/unladen): 5%/20% .
- Equipped with a display screen to clearly show battery status.
* BATTERY POWERED PALLET TRUCKS
| MODEL NO. | FORK SIZE L x W | LOAD CAPACITY | WT.(LBS) | RECHARGEABLE BATTERY |
DRIVE MOTOR |
WHEEL DIAMETER |
PRICE EACH |
| Y-1034 | 48x27" | 3,300 lbs. | 251 | 24V/20AH | 0.75 kw DC | 8.3"/3.15" | $1,510 |
| Y-1037 | 48x27" | 3,300 lbs. | 290 | 24V/20AH | 0.75 kw DC | 8.27"/2.95" | $1,680 |
*Includes one lithium-ion battery and charger

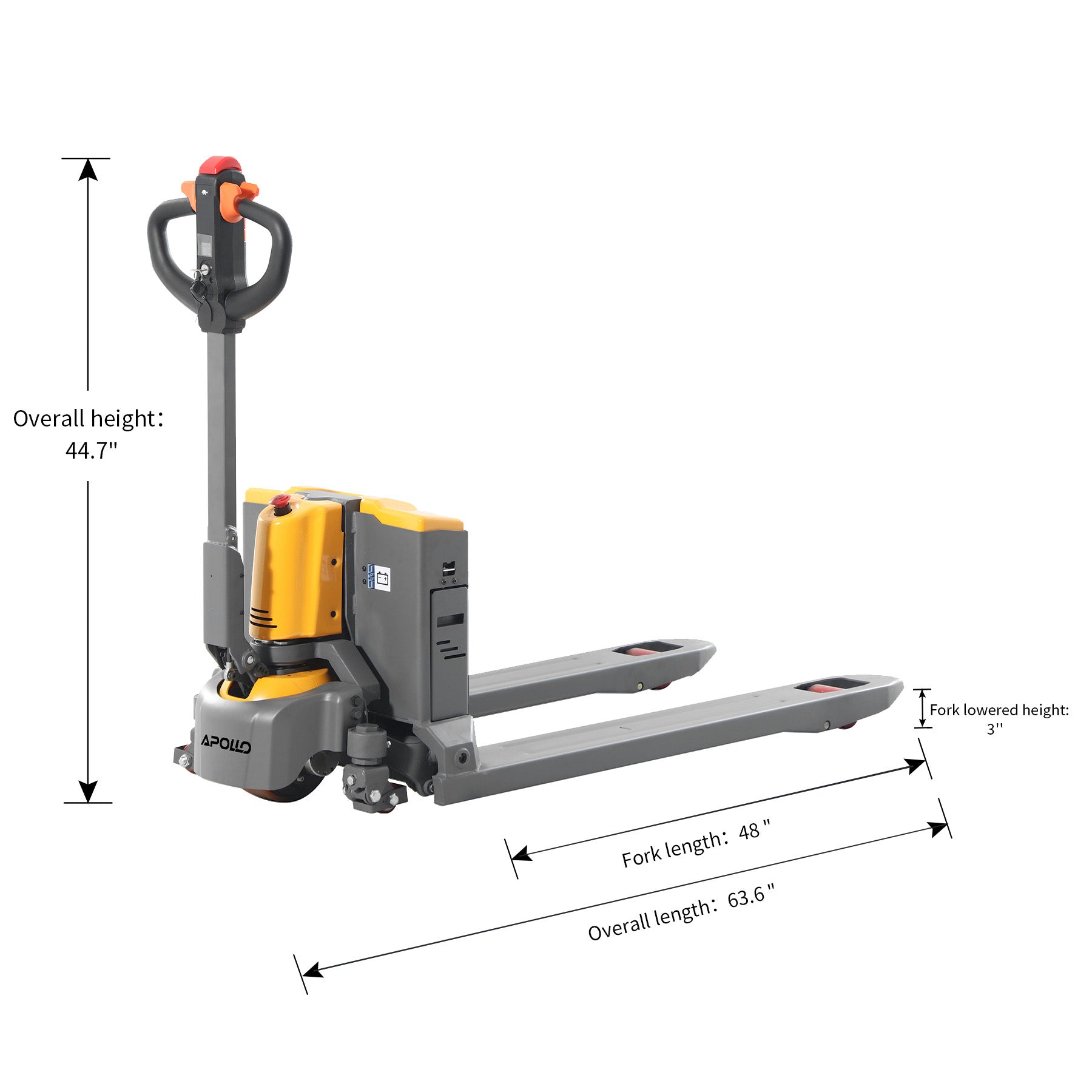

Dimensions
- Overall: 63.6" x 27"x44.7" (L xWx H)
- Lowered height: 3.1''
- Raised height: 4.3"

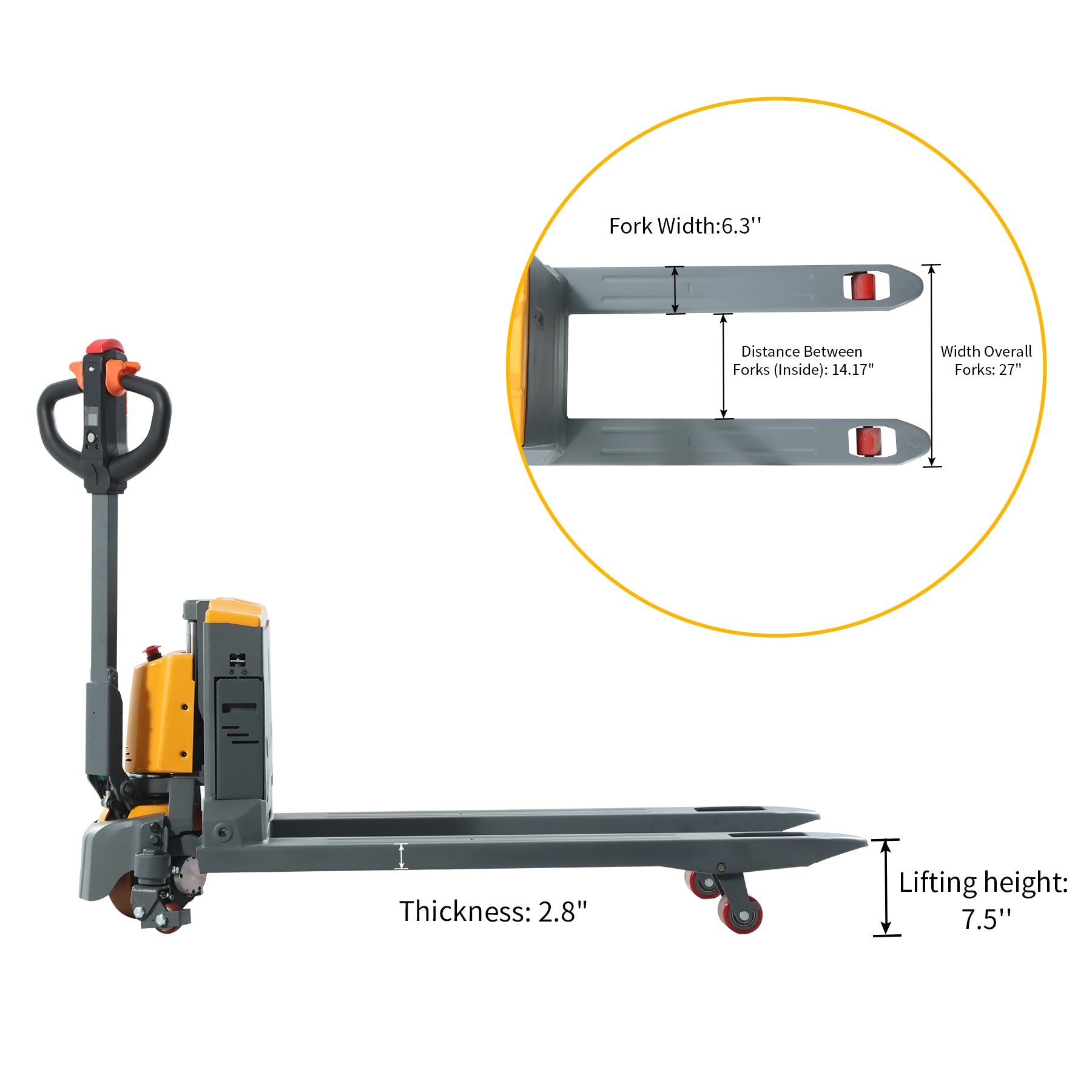

FORKS
- Actual: 48*27"
- Width: 6.3"
- Thickness: 2.8"
- Distance Between Forks (Inside): 14.17"
FEATURES
Non-marking polyurethane wheels. 180° steering arc.
SPEED
- Empty: 2.8mph
- Loaded: 2.67 mph
BATTERY
- Capacity: 24V/20Ah
CHARGING
- Charger plugs into standard 110V-120V outlets.
- Fully charge battery before use to avoid damaging cells.
- Charge the truck once a month even it's without use.
- LED light on charger shows battery charge status.
- Green: Fully Charged
- Red Flash: Charging
SPECIFICATIONS
- Not explosion proof.
- This truck is designed to be used on flat ground.Avoid uneven grounds with potholes,and large ramp.
- Temperature range of working environment 50˚F~104˚F.
Specifications
|
Load capacity |
3300LBS |
|
Load Center Distance
|
23.6 inch |
|
Aisle width |
87inch |
|
Lifting height |
4.3inch |
|
Fork lowered height |
3.1inch |
|
Overall length |
63.6inch |
|
Distance between forks(inside) |
14.17inch |
|
Overall width |
27inch |
|
Fork dimensions（Thickness*Width*Length） |
2.8*6.3*48inch |
|
Width overall forks |
27inch |
|
Turning radius |
55.7inch |
|
Fork Lowering speed, laden/unladen |
0.078/0.056mph |
|
Gradeability, laden/unladen |
5%/20% |
|
Travel Speed, laden/unladen |
2.67/2.8mph |
|
Battery |
24V/20AH |
|
Charger |
24/6A built-out |
Warranty
1-Year Warranty (from delivery date):
- First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
- 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
- After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).
Special Warranty Terms:
- Spare Parts: 3-month warranty.
- Batteries: 6-month warranty.
- Used Machines: 3-month parts-only warranty (no labor or returns).
- Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.
Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
