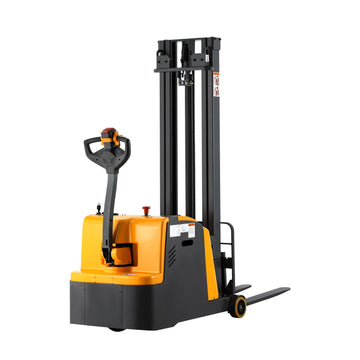

Counterbalanced Electric Stacker 1200lbs 118" High Y-3031
-
Adjustable forks and straddle legs fit most pallets
-
Hydraulic lift control, powered by a 1,500-watt motor
-
Foot pedal brake for safety and smooth ramp use.
-
Explosion-proof valve prevents sudden fork drop, ensuring operator safety.
Counterbalanced Electric Stacker 1200lbs 118" High Y-3031
Price:
Regular price
$7,400.00
Sale price
$7,400.00
Regular price
Save 0
-
Shipping calculated based on your ZIP code

Counterbalanced Electric Stacker 1200lbs 118" High Y-3031
Regular price
$7,400.00
Sale price
$7,400.00
Regular price
Description
Warranty
- 650-watt drive motor, 2,200-watt lift motor.
- Perfect for approaching racks and trucks, as there are no straddle legs to obstruct to close approach.
- With upright walking function, especially suitable for narrow aisle.
- 2 minutes will replacement thanks to the wheel because of the upper horizontal structure design.
- 4-5 hours service per charge: two 12-volt, 105 Ah rechargeable GEL batteries
- 24V/10A Built-in charger.
*COUNTERBALACED ELECTRIC STACKERS
MODEL NO. | DESCRIPTION | LOAD CAPACITY | HEIGHT LOWERED | HEIGHT RAISED | WHEEL DIAMETER | WT (LBS) | PRICE |
Y-3031 | Light duty stacker | 1,200 lbs | 1.38'' | 118'' | 7.7''/5.9'' | 1,920 | $7,400 |
Y-3032 | Heavy duty stacker | 3,300 lbs | 1.38'' | 177'' | 9.8''/7.9'' | 4,580 | $17,300 |
Y-3040 | Medium duty stacker | 2,200 lbs | 1.38'' | 118'' | 7.7''/5.9'' | 2,601.45 | $8,390 |
Y-3043 | Medium duty stacker | 2,200 lbs | 1.38'' | 98'' | 7.7''/5.9'' | $8,170 |
*SHIPS ASSEMBLED VIA MOTOR FREIGHT
REPLACEMENT PARTS
MODEL NO. | BATTERY TYPE | BATTERY CAPACITY | WT. (LBS) | DIMENSIONS | PRICE EACH | 2 PCS PRICE |
S-1005 | Gel Battery | 24V/105AH | 115 | 10.2x6.6x8.5" | $600 | $1,150 |

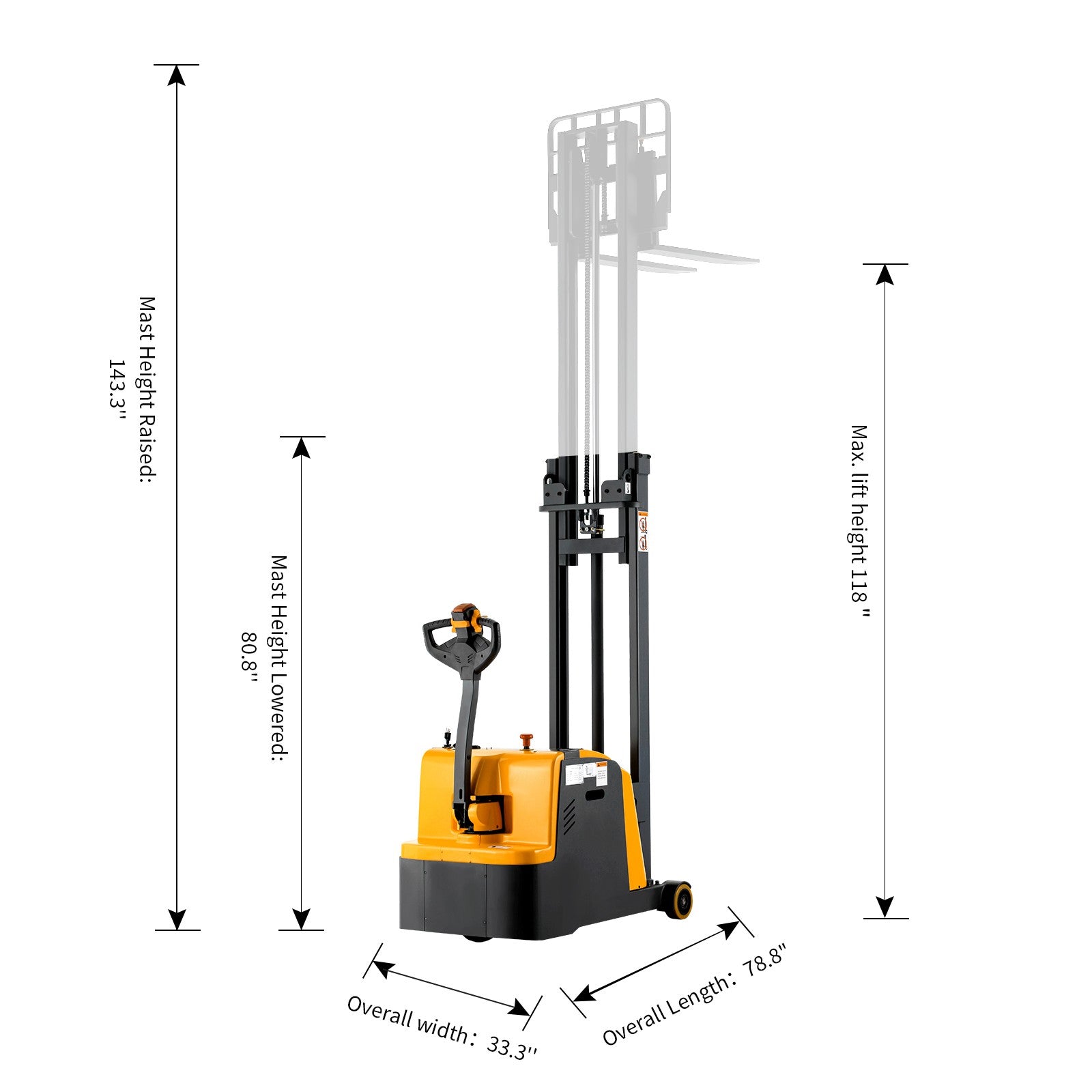

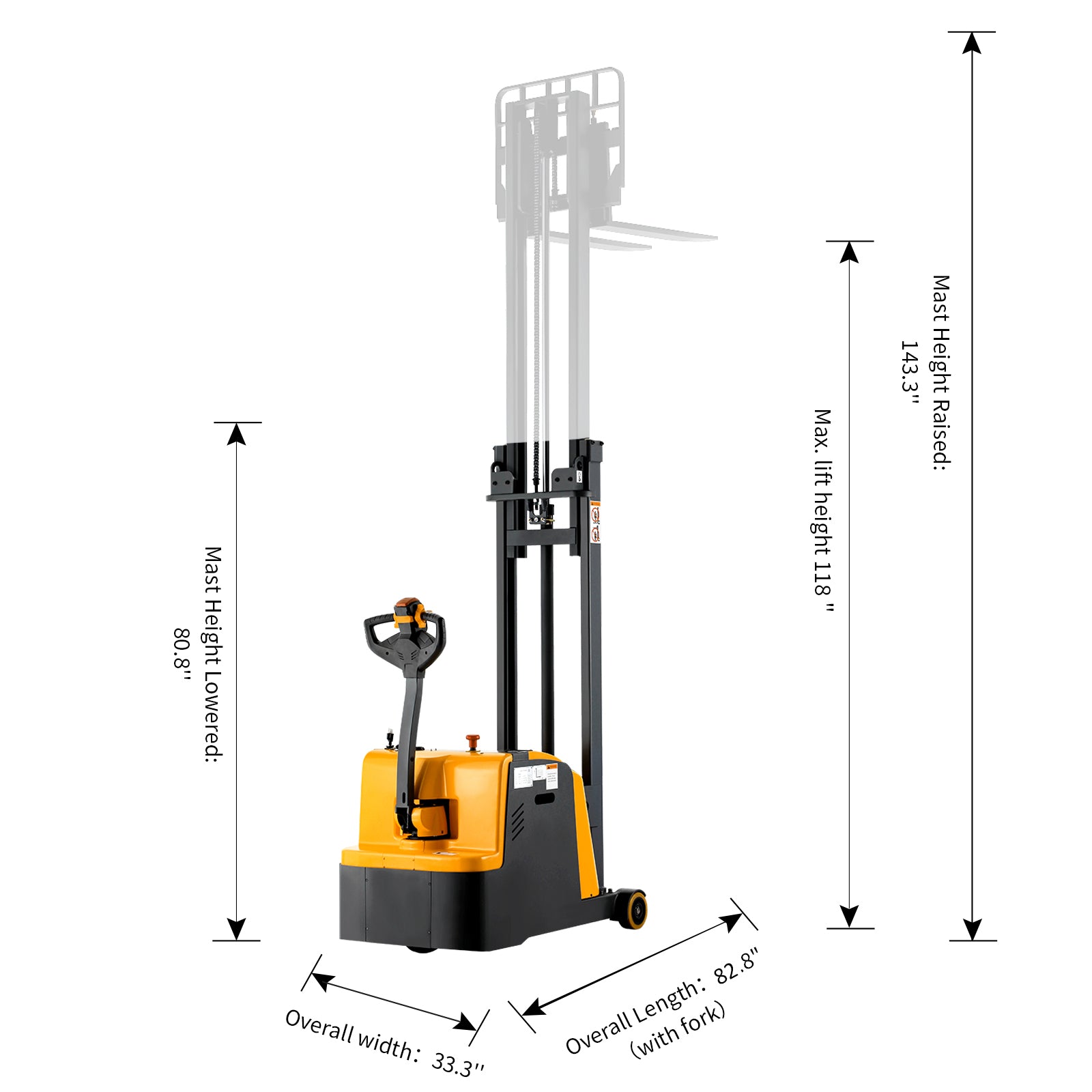

DIMENSIONS
- Overall Length:78.8"
- Overall Width: 33.3''
- Recommended Aisle Width:108.3"/ 9 feet
- Turning Radius:46.1"
- Load Center: 15.7"
- Gradeability(laden/unladen):6%/10%
MAST
- Mast Height Lowered: 80.8''
- Mast Lifting Height: 118''
- Mast Height Raised: 143.3''
- Mast tilt(forward/backward):1°/3°

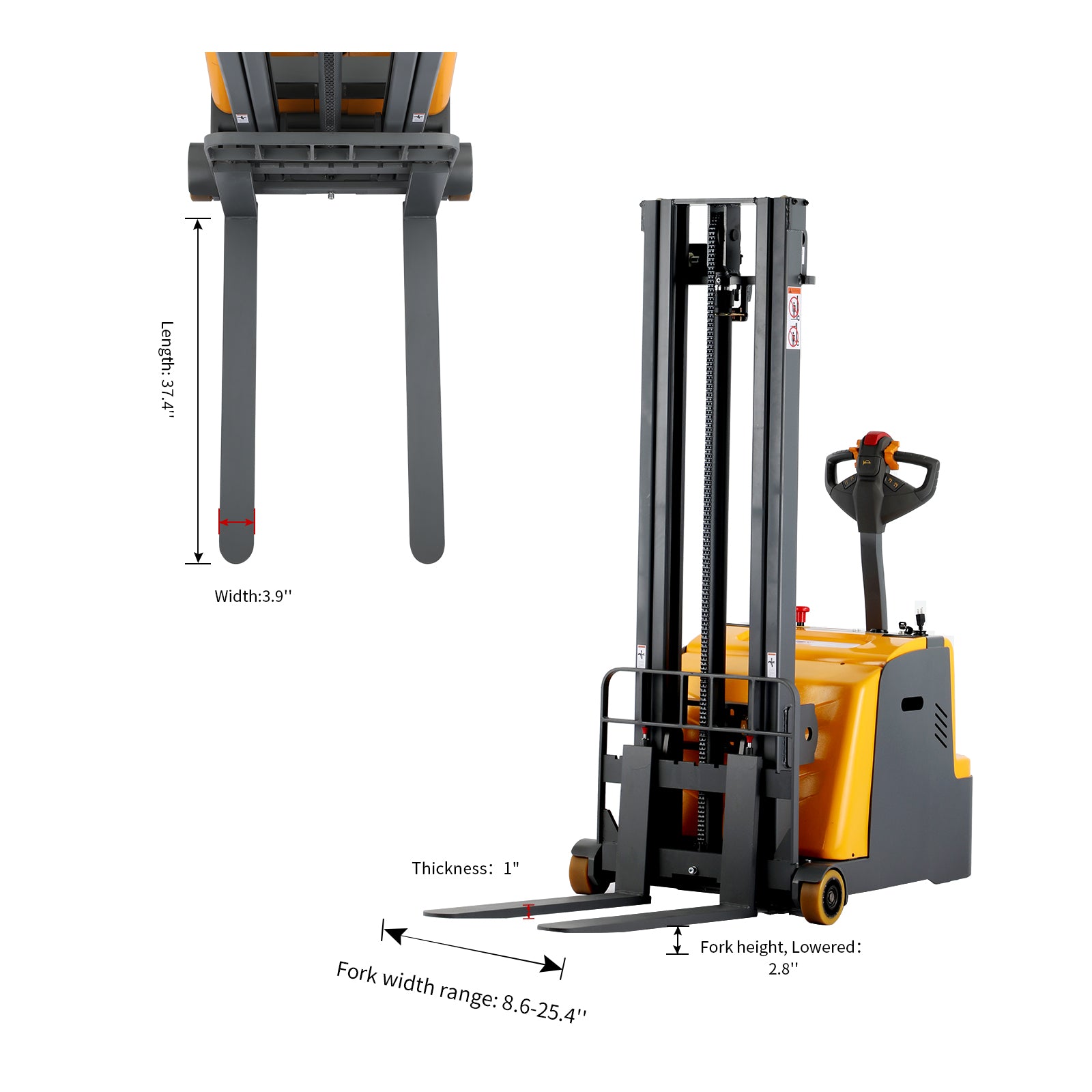

FORKS
- Thickness: 1''
- Width:3.9''
- Length: 37.4"
- Fork width range: 8.6-25.4''
FEATURES
- Long handle structure makes truck steering light and flexible
- Thoughtful mast design for wide viewing angles
SPEED
- Lifting speed(laden/unladen) : 6.7/9.8 mile/s
- Lowering speed(laden/unladen) : 5½/5½ mile/s
- Travel speed(laden/unladen):2½/2.8 mph
SPECIFICATIONS
- Not explosion proof.
- This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the truck once a month even it's not in use.
- Time to fully charge battery: 8 - 10 hrs
Load Capacity | 1,200 lbs |
Load Center | 15.7" |
Turning Radius | 46.1" |
Aisle Width | 108.3" |
Fork Dimensions | 37.4" L × 8.6–25.4" W × 1" Thick |
Inside Fork Width | 0.1"–17.5" |
Overall Dimensions | 78.8" L × 33.3" W |
Max Lifting Height | 118" |
Mast Height (Lowered/Extended) | 80.8" / 143.3" |
Fork Lowered Height | 0.1" |
Battery | 24V / 105Ah (Maintenance-Free) |
Charger | 24V / 10A Built-in |
Travel Speed (Laden/Unladen) | 2.5 / 2.8 mph |
Lifting Speed (L/U) | 6.7 / 9.8 inch/s |
Lowering Speed (L/U) | 5.5 / 5.5 inch/s |
Service Weight | 2038 lbs |
Warranty
1-Year Warranty (from delivery date):
- First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
- 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
- After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).
Special Warranty Terms:
- Spare Parts: 3-month warranty.
- Batteries: 6-month warranty.
- Used Machines: 3-month parts-only warranty (no labor or returns).
- Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.
Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
