Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.98" lifting Local Pick-Up Y-3050
-
Upper horizontal drive motor for easier wheel replacement
-
Fixed legs with adjustable forks for versatile use
-
4-point design for improved stability
-
Large 5.9 x 2.6-inch balance wheels for smoother movement over rough floors
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.98" lifting Local Pick-Up Y-3050
Price:
-
Shipping calculated based on your ZIP code
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.98" lifting Local Pick-Up Y-3050
THE BEST CHOICE FOR NARROW SITE
- 650-watt drive motor, 2,200-watt lift motor.
- Forks are adjustable to fit most pallets.
- Use GEL batteries that require no maintenance.
- Compact and agile, with a 52.9" turning radius for efficient operation in tight spaces.
-
The display shows working hours, battery levels, and low-voltage alerts.
DIMENSIONS
- Overall Length: 70.3"
- Recommended Aisle Width: 88.3"
- Turning Radius: 52.9"
- Max. Lifting Height: 118''
- Mast Height Lowered: 84.4''
- Mast Height Raised: 143.5''
- Load Center: 23.6"
- Ground Clearance: 2.56"

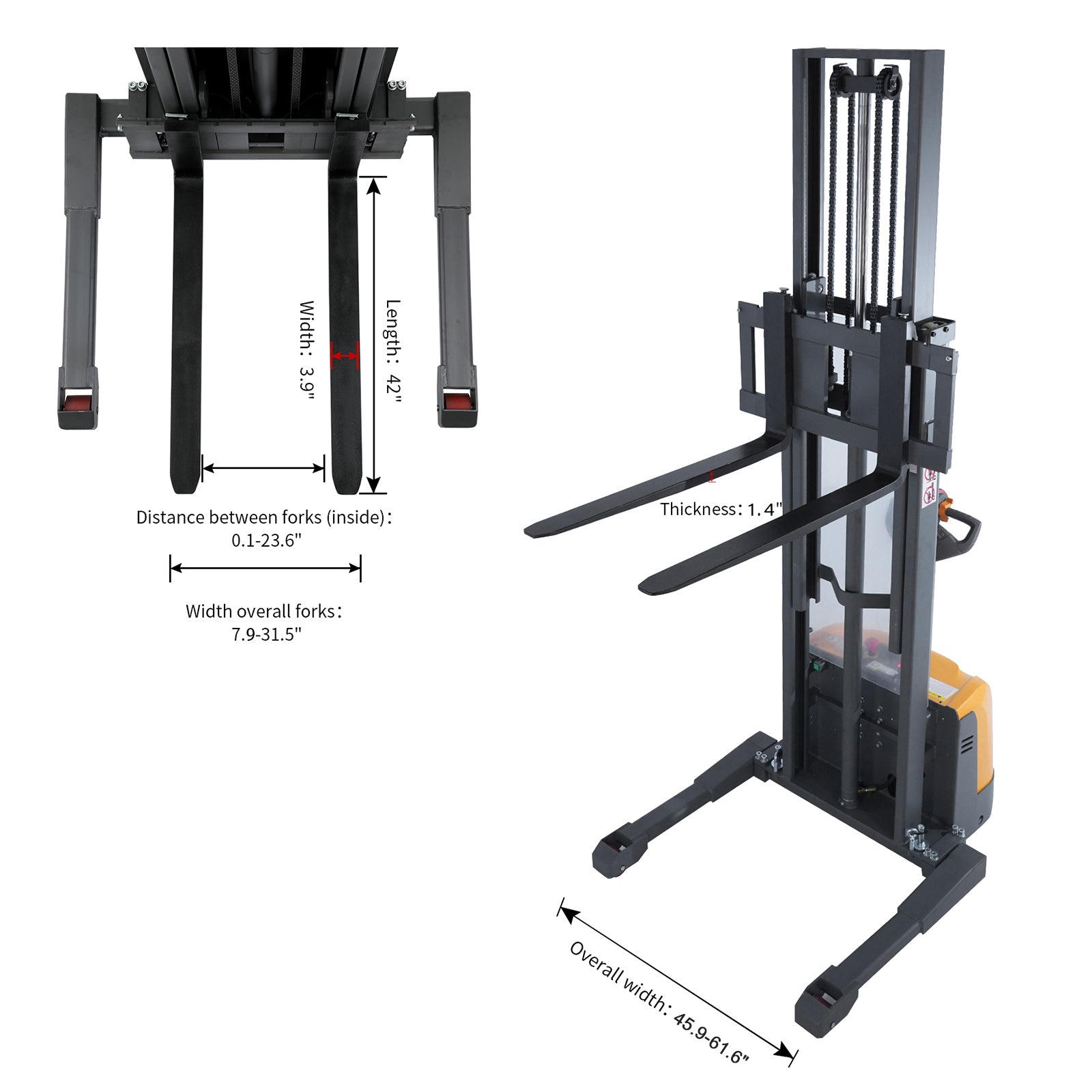

FORKS
- Fork height, Lowered: 2.8''
- Adjustable Forks: 7.8"-31.5"
- Thickness: 1.3"
- Width: 3.9"
- Length: 42"
STRADDLE LEGS
- Height: 4.7"
- Adjustable range: 44" - 60"
FEATURES
- Smooth rolling polyurethane wheels; 180° steering arc.
- High component integration for easy maintenance and repairs.
- 110V Built-in Charger.
- 6 hours of service per charge: two 12-volt, 100 Ah rechargeable GEL batteries.
- Safety-enhancing warning lights and buzzer included.
SPEED
- Travel Speed (laden/unladen): 2.8/3.1mph
- Lifting speed(laden/unladen) : 3.5/5.9inch/s
- Lowering speed(laden/unladen) : 5.9/4.3inch/s
SPECIFICATIONS
- Not explosion proof.
- This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the forklift once a month even it's not in use.
|
Load Capacity |
3300lbs |
|
Load Center Distance
|
23.6 inch |
|
Height, Mast Lowered |
74.6 inch |
|
Max. Lifting Height |
98 inch |
|
Height, Mast Extended |
123.8 inch |
|
Fork Lowered Height |
2.8 inch |
|
Overall Length |
70.3 inch |
|
Overall Width |
46.5-62.3 inch |
|
Width Overall Forks |
7.8-31.5 inch |
|
Fork Dimension（thickness*width*length） |
1.3*3.9*42 inch |
|
Distance Between Forks (inside) |
0.1-23.6 inch |
|
Fork Lowered Height |
2.8 inch |
|
Turning Radius |
52.9 inch |
|
Travel Speed, Laden/Unladen |
2.8/3.1 mph |
|
Lift Speed, Laden/Unladen |
3.5/5.9 inch/s |
|
Lowering Speed, Laden/Unladen |
5.9/4.3 inch/s |
Warranty
1-Year Warranty (from delivery date):
- First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
- 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
- After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).
Special Warranty Terms:
- Spare Parts: 3-month warranty.
- Batteries: 6-month warranty.
- Used Machines: 3-month parts-only warranty (no labor or returns).
- Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.
Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
