Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049.
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049.
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049.
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049.
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049.
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049.
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049.
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049.
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049.
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049.
  • Upper horizontal drive motor for easier wheel replacement
  • Fixed legs with adjustable forks for versatile use
  • 4-point design for improved stability
  • Large 5.9 x 2.6-inch balance wheels for smoother movement over rough floors

Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049

Price:
Regular price $5,450.00
Sale price $5,450.00 Regular price
Save 0
  • SKU:
    Y-3049
  • Shipping calculated based on your ZIP code

Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049.

Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting Local Pick-Up Y-3049

Regular price $5,450.00
Sale price $5,450.00 Regular price
Description

THE BEST CHOICE FOR NARROW SITE

  • 650-watt drive motor, 2,200-watt lift motor.
  • Forks are adjustable to fit most pallets.
  • Use GEL batteries that require no maintenance.
  • Compact and agile, with a 52.9" turning radius for efficient operation in tight spaces.
  • The display shows working hours, battery levels, and low-voltage alerts.

FEATURES

  • Smooth rolling polyurethane wheels; 180° steering arc.
  • High component integration for easy maintenance and repairs.
  • 110V Built-in Charger.
  • 6 hours of service per charge: two 12-volt, 100 Ah rechargeable GEL batteries.
  • Safety-enhancing warning lights and buzzer included.

SPECIFICATIONS

  • Not explosion proof.
  • This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
  • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
  • Fully charge battery before use to avoid damaging cells.
  • Charger plugs into standard 110V-120V outlets.
  • Charge the forklift once a month even it's not in use.

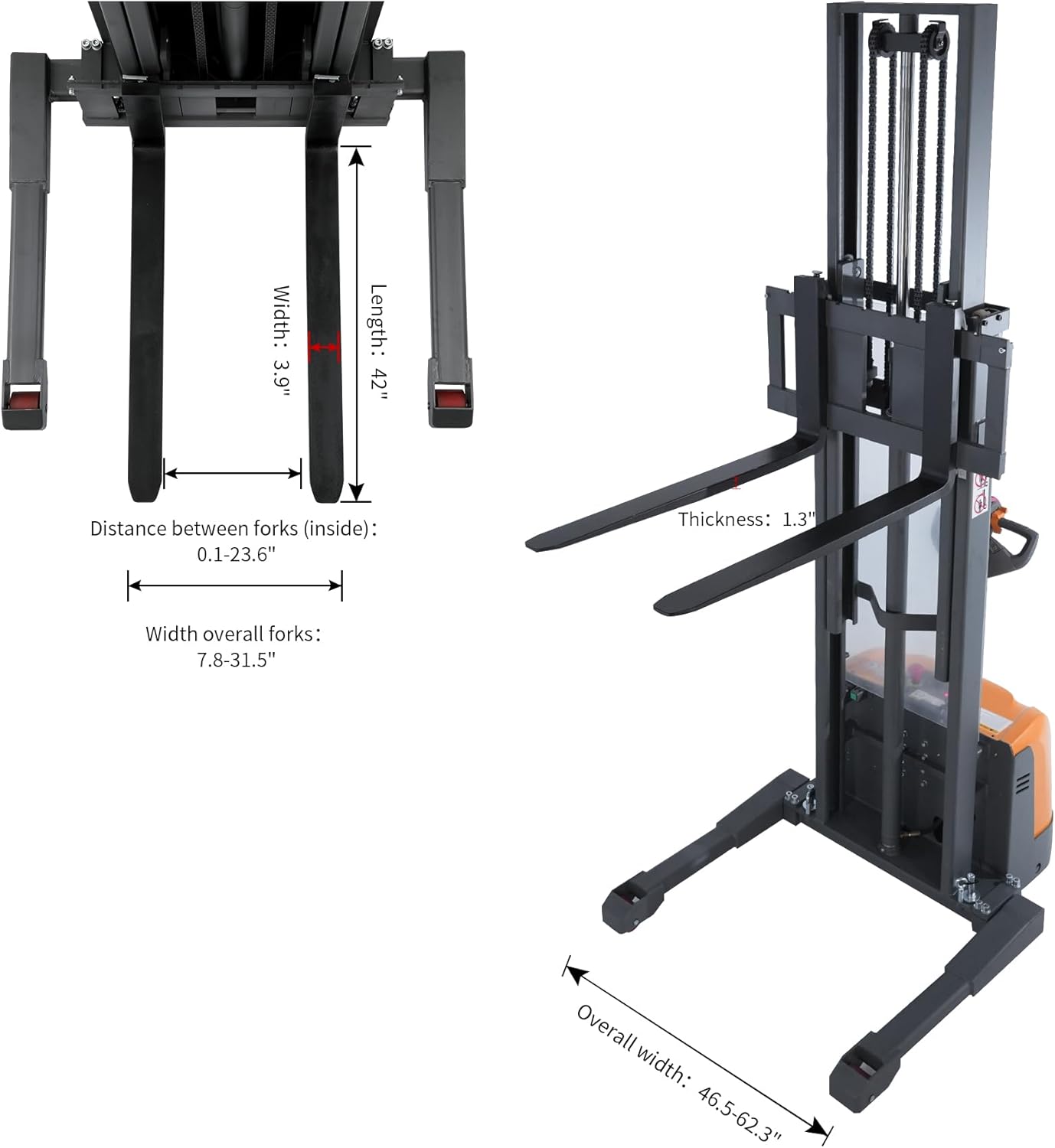

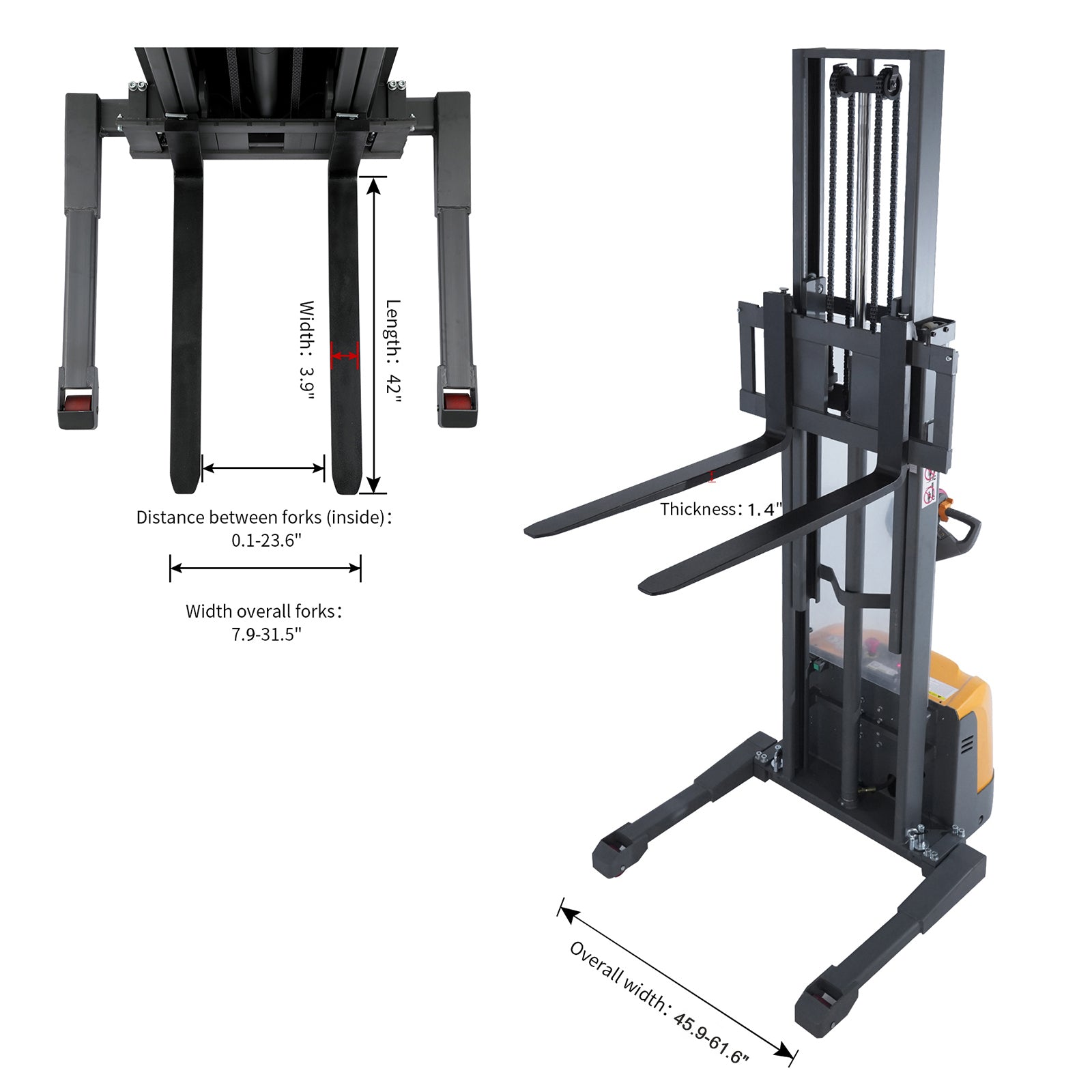

Specification Value
Load Capacity 3300 lbs
Load Center Distance 23.6 inch
Height, Mast Lowered 90.4 inch
Max. Lifting Height 130 inch
Height, Mast Extended 157 inch
Fork Lowered Height 2.8 inch
Overall Length 70.3 inch
Overall Width 46.5–62.3 inch
Width Overall Forks 7.8–31.5 inch
Fork Dimensions (thickness × width × length) 1.3 × 3.9 × 42 inch
Distance Between Forks (inside) 0.1–23.6 inch
Turning Radius 52.9 inch
Travel Speed (Laden / Unladen) 2.8 / 3.1 mph
Lift Speed (Laden / Unladen) 3.5 / 5.9 inch/s
Lowering Speed (Laden / Unladen) 5.9 / 4.3 inch/s
Service Weight 1270 lbs

User Documentation

Product Manual (PDF)

Warranty

Warranty

1-Year Warranty (from delivery date):

  • First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
  • 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
  • After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).

Special Warranty Terms:

  • Spare Parts: 3-month warranty.
  • Batteries: 6-month warranty.
  • Used Machines: 3-month parts-only warranty (no labor or returns).
  • Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.

Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
