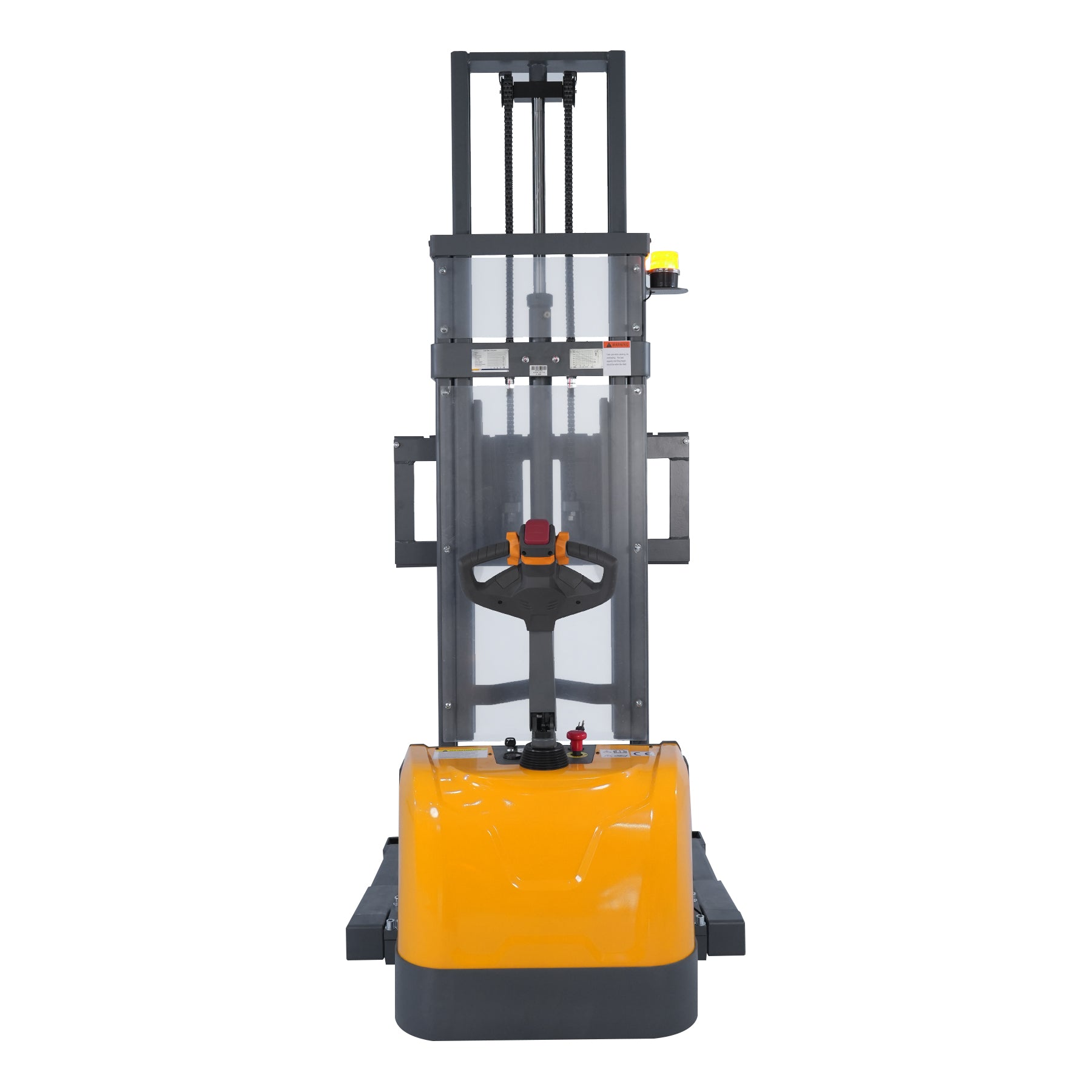

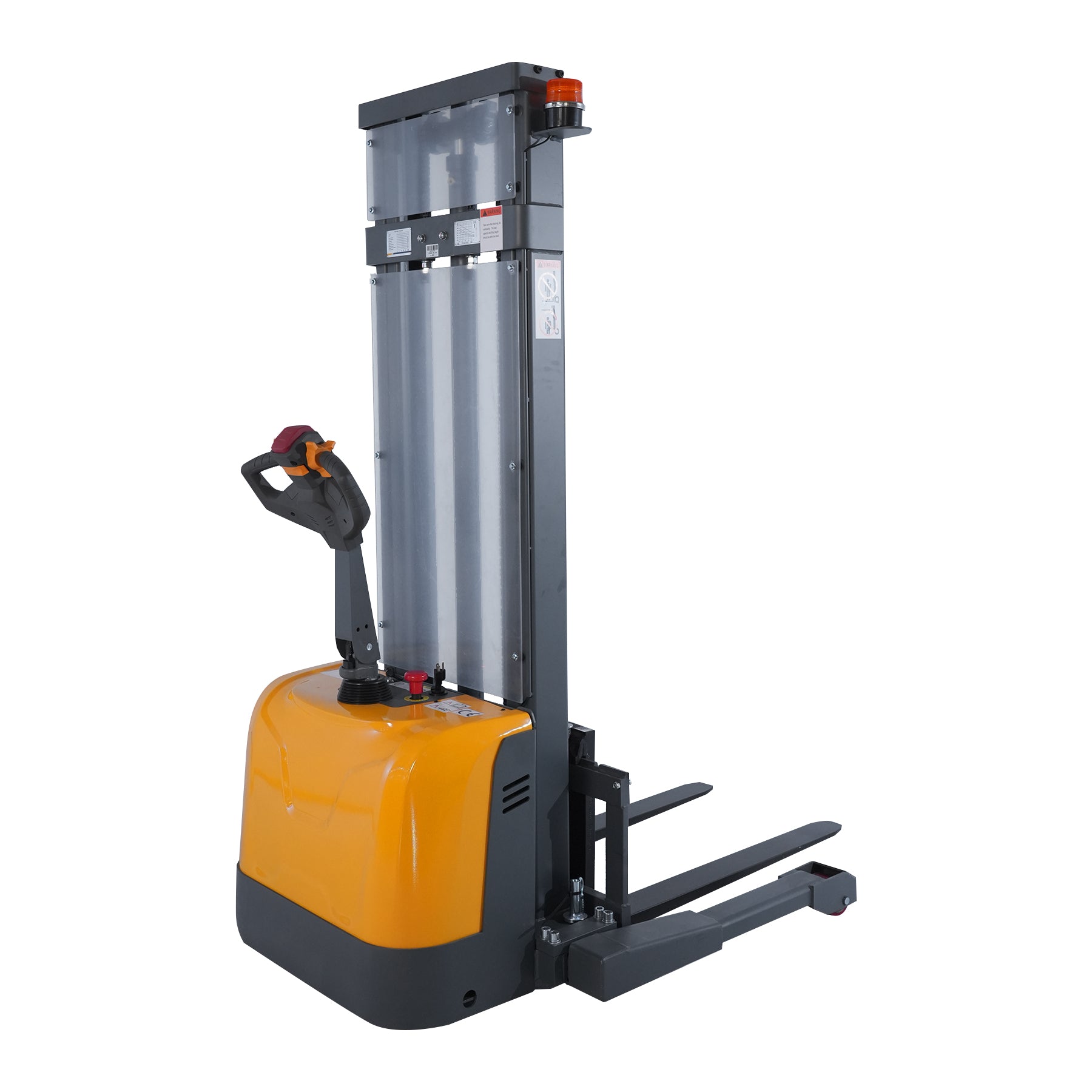

Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.118" lifting Local Pick-Up Y-3047
  • Upper horizontal drive motor for easier wheel replacement.
  • Fixed legs with adjustable forks for versatile use.
  • 4-point design for improved stability.
  • Large 5.9 x 2.6-inch balance wheels for smoother movement over rough floors.

Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.118" lifting Local Pick-Up Y-3047

Price:
$5,380.00
$5,380.00
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.118" lifting Local Pick-Up Y-3047

Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.118" lifting Local Pick-Up Y-3047

$5,380.00
$5,380.00
Description

THE BEST CHOICE FOR NARROW SITE

  • 650-watt drive motor, 2,200-watt lift motor.
  • Forks are adjustable to fit most pallets.
  • Use GEL batteries that require no maintenance.
  • Compact and agile, with a 52.9" turning radius for efficient operation in tight spaces.
  • The display shows working hours, battery levels, and low-voltage alerts.

DIMENSIONS

  • Overall Length: 70.3"
  • Recommended Aisle Width: 88.3"
  • Turning Radius: 52.9"
  • Max. Lifting Height: 118''
  • Mast Height Lowered: 84.4''
  • Mast Height Raised: 143.5''
  • Load Center: 23.6"
  • Ground Clearance: 2.56"

FORKS

  • Fork height, Lowered: 2.8''
  • Adjustable Forks: 7.8"-31.5"
  • Thickness: 1.3"
  • Width: 3.9"
  • Length: 42"

STRADDLE LEGS

  • Height: 4.7"
  • Adjustable range: 44" - 60"

FEATURES

  • Smooth rolling polyurethane wheels; 180° steering arc.
  • High component integration for easy maintenance and repairs.
  • 110V Built-in Charger.
  • 6 hours of service per charge: two 12-volt, 105 Ah rechargeable GEL batteries.
  • Safety-enhancing warning lights and buzzer included.

SPEED

  • Travel Speed (laden/unladen): 2.8/3.1mph
  • Lifting speed(laden/unladen) : 3.5/5.9inch/s
  • Lowering speed(laden/unladen) : 5.9/4.3inch/s

SPECIFICATIONS

  • Not explosion proof.
  • This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
  • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
  • Fully charge battery before use to avoid damaging cells.
  • Charger plugs into standard 110V-120V outlets.
  • Charge the forklift once a month even it's not in use.
