Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.118" lifting Local Pick-Up O-3047
-
Upper horizontal drive motor for easier wheel replacement
-
Fixed legs with adjustable forks for versatile use
-
4-point design for improved stability
-
Large 5.9 x 2.6-inch balance wheels for smoother movement over rough floors
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.118" lifting Local Pick-Up O-3047
Price:
Regular price
$5,380.00
Sale price
$5,380.00
Regular price
Save 0
-
Shipping calculated based on your ZIP code
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.118" lifting Local Pick-Up O-3047
Regular price
$5,380.00
Sale price
$5,380.00
Regular price
Description
Warranty
THE BEST CHOICE FOR NARROW SITE
- 650-watt drive motor, 2,200-watt lift motor.
- Forks are adjustable to fit most pallets.
- Use GEL batteries that require no maintenance.
- Compact and agile, with a 52.9" turning radius for efficient operation in tight spaces.
-
The display shows working hours, battery levels, and low-voltage alerts.
FEATURES
- Smooth rolling polyurethane wheels; 180° steering arc.
- High component integration for easy maintenance and repairs.
- 110V Built-in Charger.
- 6 hours of service per charge: two 12-volt, 100 Ah rechargeable GEL batteries.
- Safety-enhancing warning lights and buzzer included.
SPECIFICATIONS
- Not explosion proof.
- This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the forklift once a month even it's not in use.
| Load Capacity | 3300 lbs |
| Load Center Distance | 23.6 inch |

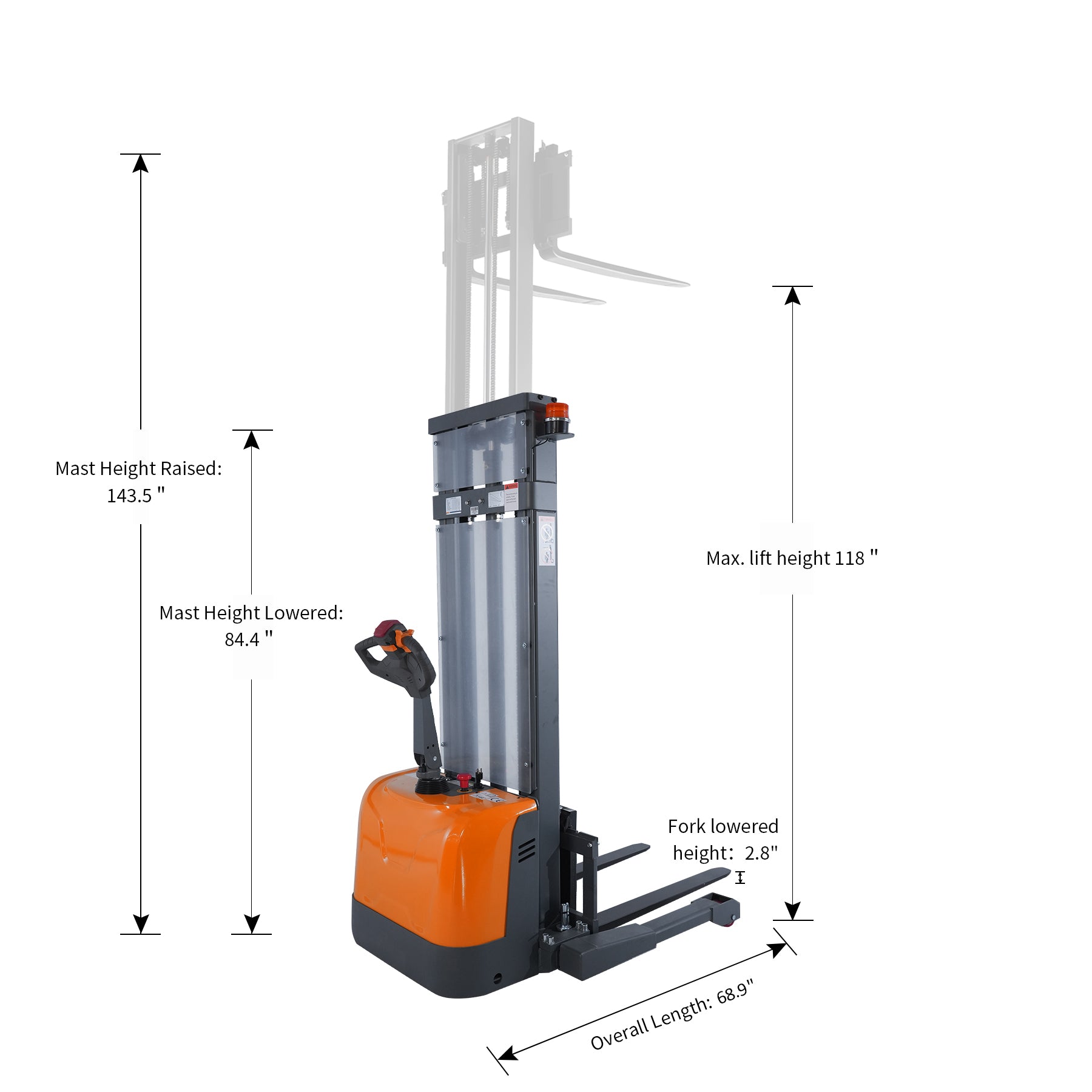

| Height, Mast Lowered | 84.4 inch |
| Max. Lifting Height | 118 / inch |
| Height, Mast Extended | 143.5 inch |
| Fork Lowered Height | 2.8 inch |
| Overall Length | 70.3 inch |

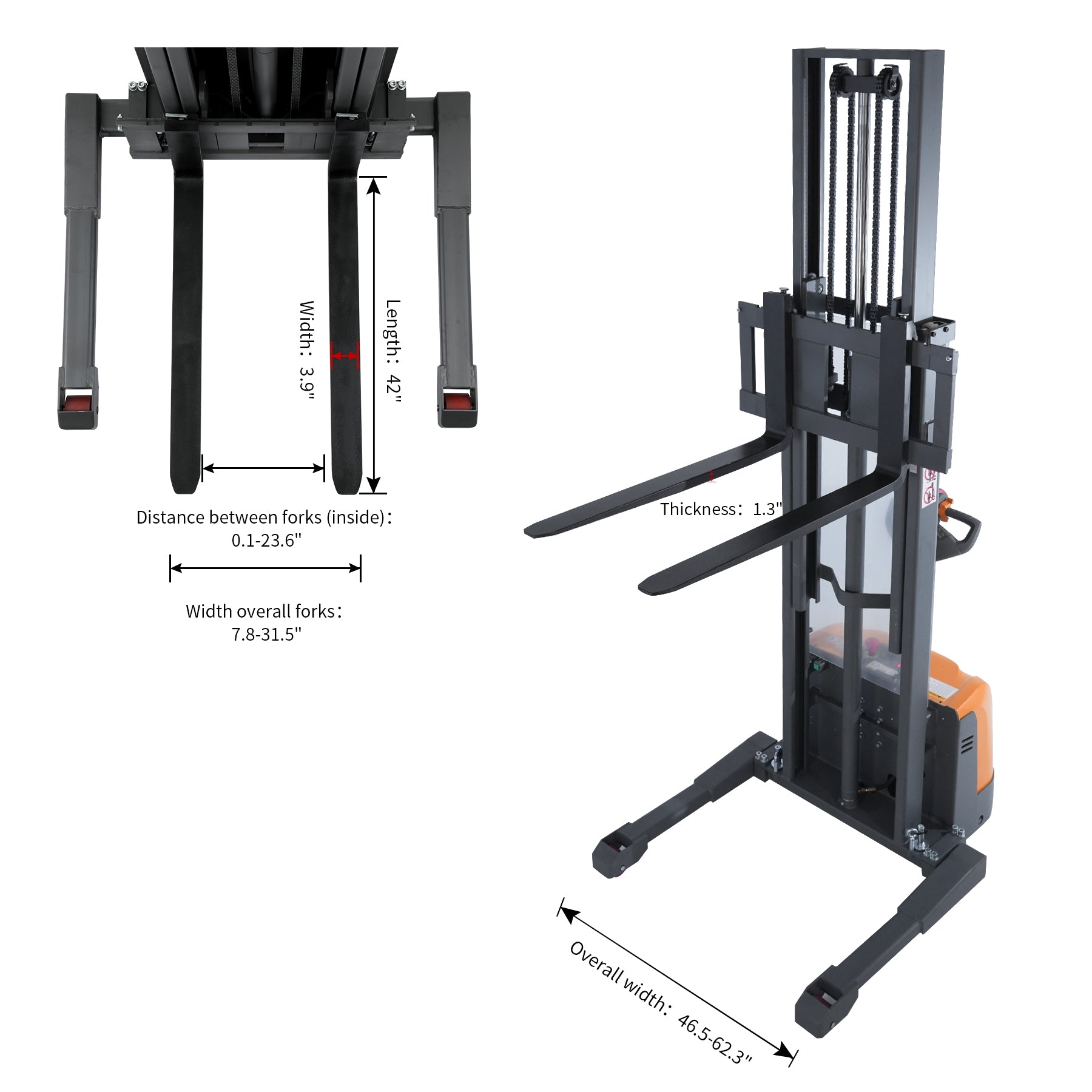

| Overall Width | 46.5 - 62.3 inch |
| Width Overall Forks | 7.8 - 31.5 inch |
| Fork Dimensions (thickness × width × length) | 1.3 × 3.9 × 42 inch |
| Distance Between Forks (inside) | 0.1 - 23.6 inch |
| Turning Radius | 52.9 inch |
| Travel Speed (Laden / Unladen) | 2.8 / 3.1 mph |
| Lift Speed (Laden / Unladen) | 3.5 / 5.9 inch/s |
| Lowering Speed (Laden / Unladen) | 5.9 / 4.3 inch/s |
| Service Weight | 1220 lbs |
User Documentation
Warranty
1-Year Warranty (from delivery date):
- First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
- 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
- After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).
Special Warranty Terms:
- Spare Parts: 3-month warranty.
- Batteries: 6-month warranty.
- Used Machines: 3-month parts-only warranty (no labor or returns).
- Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.
Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
