Power Lift Straddle Stacker 3300Lbs 98"Lifting Y-3011
Power Lift Straddle Stacker 3300Lbs 98"Lifting (6992584736936)
Power Lift Straddle Stacker 3300Lbs 98"Lifting (6992584736936)
Power Lift Straddle Stacker 3300Lbs 98"Lifting (6992584736936)
Power Lift Straddle Stacker 3300Lbs 98"Lifting (6992584736936)
Power Lift Straddle Stacker 3300Lbs 98"Lifting (6992584736936)
  • Adjustable forks and straddle legs fit most pallets
  • Hydraulic lift control, powered by a 1,500-watt motor
  • Foot pedal brake for safety and smooth ramp use.
  • Explosion-proof valve prevents sudden fork drop, ensuring operator safety.

Power Lift Straddle Stacker 3300Lbs 98"Lifting Y-3011

Price:
Regular price $3,810.00
Sale price $3,810.00 Regular price $3,887.00
Save 1%
  • SKU:
    Y-3011

Estimated Shipping Widget will be displayed here!

Description

MANUAL PUSH AND PULL, POWERED LIFTING AND LOWERING

  • 1,500-watt lift motor.
  • Special chain steering system.
  • Easy operation for lifting and lowering.
  • Strong battery with 12V/100AH capacity and over charge design.
  • Adjustable forks & straddle legs.
MODEL NO. LOAD CAPACITY  LEGS TYPE BATTERY CAPACITY LIFTING HEIGHT HEIGHT        LOWERED  WT (LBS)  PRICE EACH
A-3016 3,300 lbs Fixed 12V/100AH 118'' 3.5'' 910 $3337
A-3011 3,300 lbs Straddle 12V/100AH 98" 3.5'' 950 $3537
A-3012 3,300 lbs Straddle 12V/100AH 118" 3.5'' 990 $3737

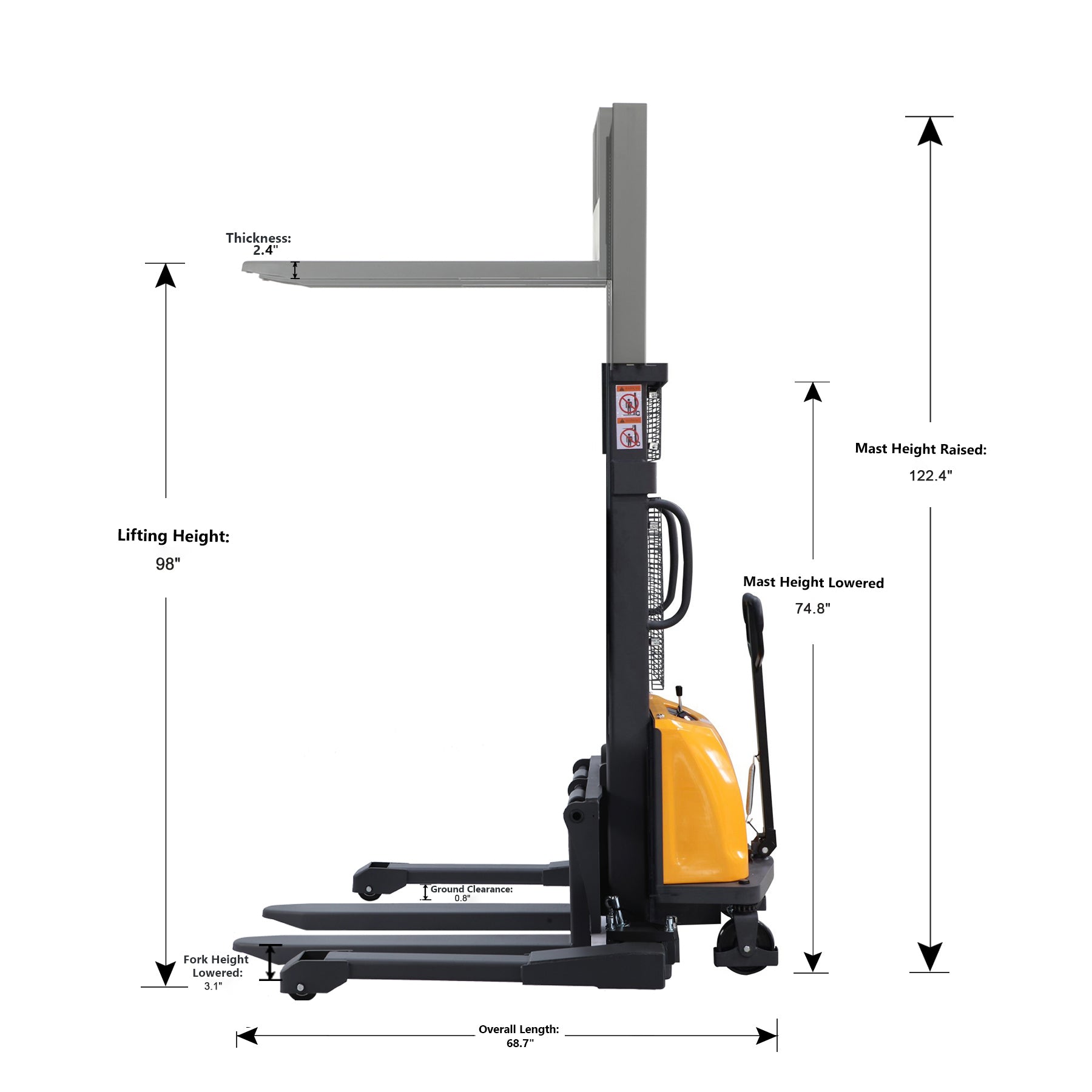

DIMENSIONS:
  • Overall Length:68.7"
  • Overall Width: 46"-60.3"
  • Recommended Aisle Width:90"
  • Turning Radius: 59.3"
  • Mast Height Lowered: 72.8”
  • Mast Height Raised: 120.4"
  • Load Center: 15.7"
  • Wheel Diameter:   7''/3.15''

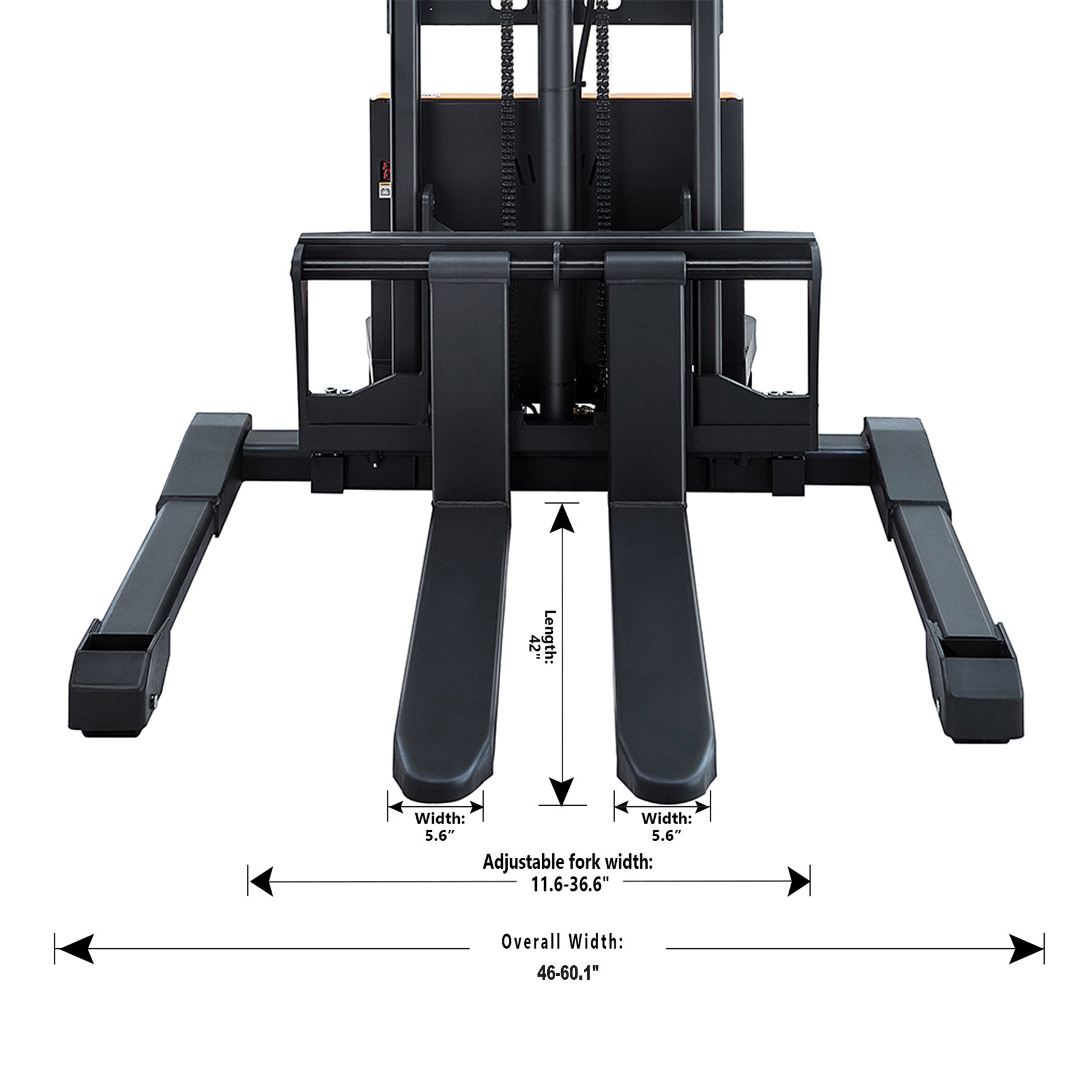

FORKS:

  • Fork height, Lowered: 3.5''
  • Thickness: 2.3''
  • Width: 5.6''
  • Length: 42''
  • Adjustable fork width: 11.8"~36.6"

FEATURES:

  • Foot pedal brake for safety and ramp usage.
  • Equipped with explosion-proof valve, against sudden drop of forks and prevent operator from harm.
  • With hydraulic leveler control lifting and lowering, speed is adjustable.

SPEED:

  • Lifting speed(laden/unladen) : 2/3.2mph
  • Lowering speed(laden/unladen) : 3.9/3.5mph

SPECIFICATIONS:

  • Not explosion proof.
  • This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramps.
  • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
  • Fully charge the battery before use to avoid damaging cells.
  • Charger plugs into standard 110V-120V outlets.
  • Charge the truck once a month even if it's not in use.
    Warranty

    Warranty

    1-Year Warranty (from delivery date):

    • First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
    • 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
    • After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).

    Special Warranty Terms:

    • Spare Parts: 3-month warranty.
    • Batteries: 6-month warranty.
    • Used Machines: 3-month parts-only warranty (no labor or returns).
    • Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.

    Battery Maintenance:
    To extend battery life and ensure proper function, charge the battery once a month when not in use.
