Semi-Electric Stacker 3300lbs 118"Lifting Fixed Legs & Adjustable Forks Y-3016
Wix CTD pallet.jpeg (6814928142504)
  • Adjustable forks & fixed legs fit for standard pallets.
  • Hydraulic lift control, powered by a 1,500-watt motor.
  • Foot pedal brake for safety and smooth ramp use.
  • Explosion-proof valve prevents sudden fork drop, ensuring operator safety.

Semi-Electric Stacker 3300lbs 118"Lifting Fixed Legs & Adjustable Forks Y-3016

Price:
$3,510.00
$3,510.00 $3,987.00
Save 11%
  • SKU:
    Y-3016

  • Shipping calculated based on your ZIP code
Description

MANUAL PUSH AND PULL, POWERED LIFTING AND LOWERING

  • 1,500-watt lift motor.
  • Special chain steering system.
  • Easy operation for lifting and lowering.
  • Strong battery with 12V/100AH capacity and over charge design.
  • Adjustable forks & fix legs.

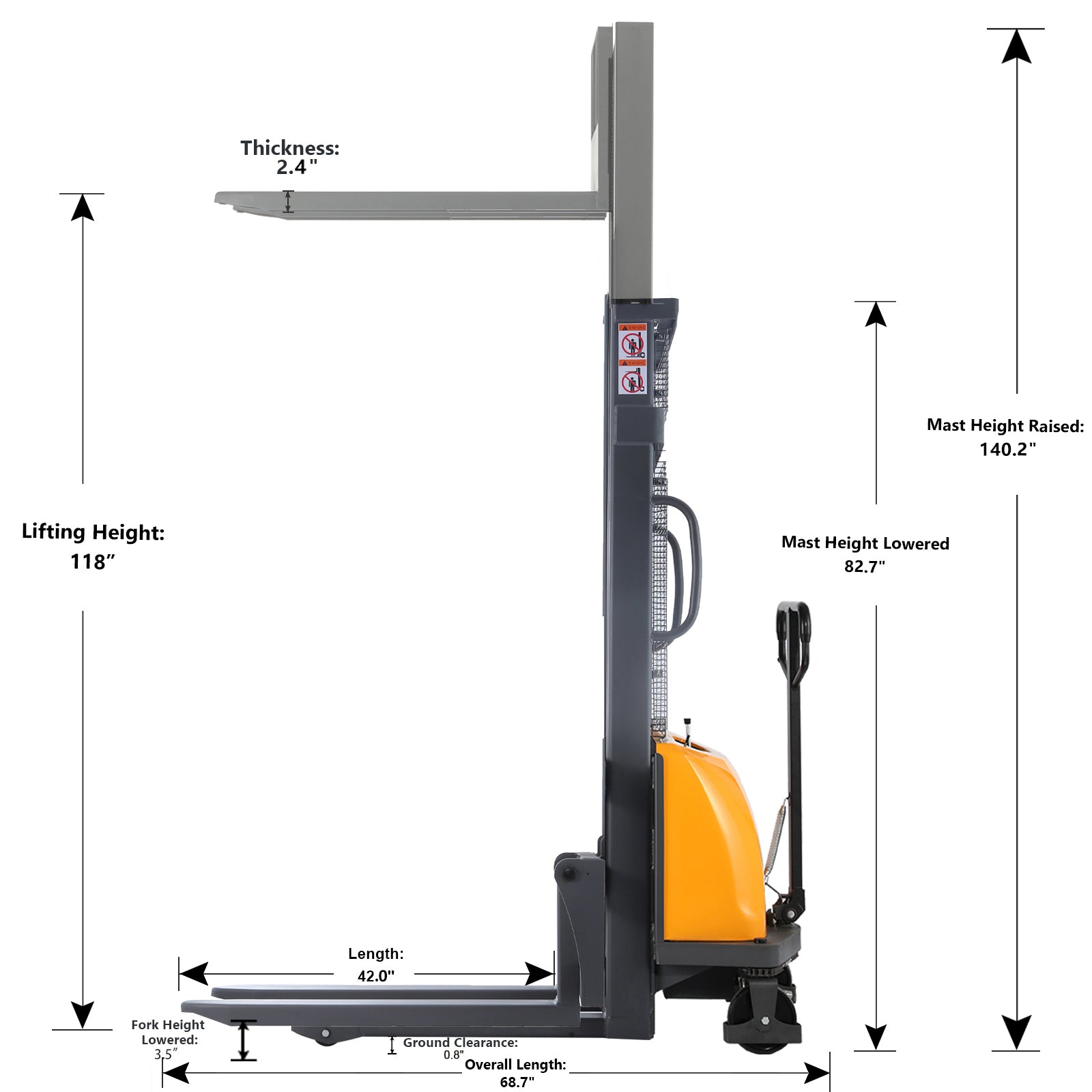

DIMENSIONS:

  • Overall Length：68.7"
  • Overall Width: 37.8''
  • Recommended Aisle Width：90"
  • Turning Radius: 56"
  • Mast Height Lowered: 82.7''
  • Mast Height Raised: 140.3''
  • Load Center: 15.7"
  • Wheel Diameter : 7''/3.15''

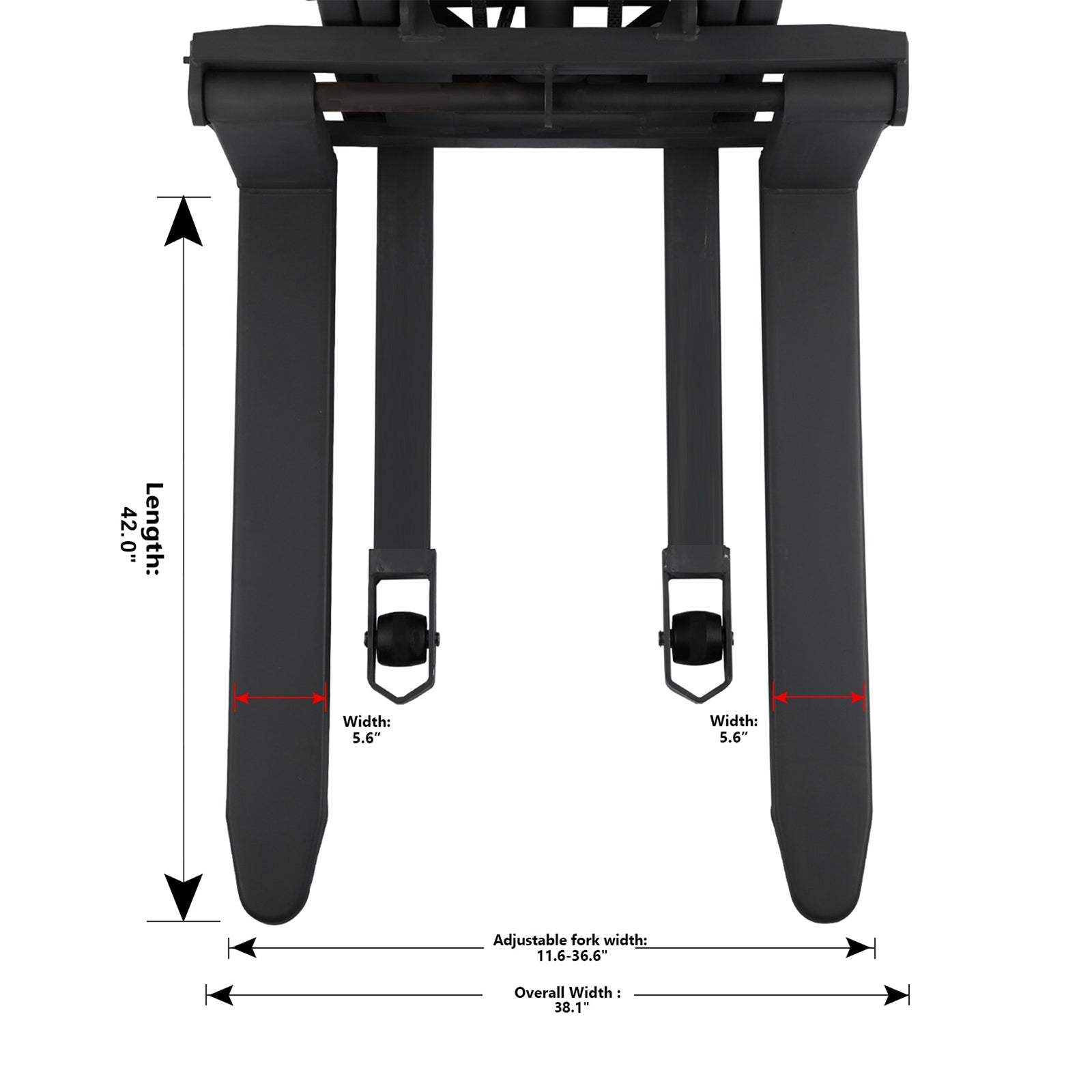

FORKS:

  • Fork height, Lowered: 3.5''
  • Thickness: 2.3''
  • Width: 5.6''
  • Length: 42''
  • Adjustable fork width 11.8-36.6''

FEATURES:

  • Foot pedal brake for safety and ramp usage.
  • Equipped with explosion-proof valve, against sudden drop of forks and prevent operator from harm.
  • With hydraulic leveler control lifting and lowering, speed is adjustable.

SPEED:

  • Lifting speed(laden/unladen) : 2/3.2 mph
  • Lowering speed(laden/unladen) : 3.9/3.5 mph

SPECIFICATIONS:

  • Not explosion proof.
  • This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramps.
  • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
  • Fully charge the battery before use to avoid damaging cells.
  • Charger plugs into standard 110V-120V outlets.
  • Charge the truck once a month even if it's not in use.
  • ⚠️ Installation Video

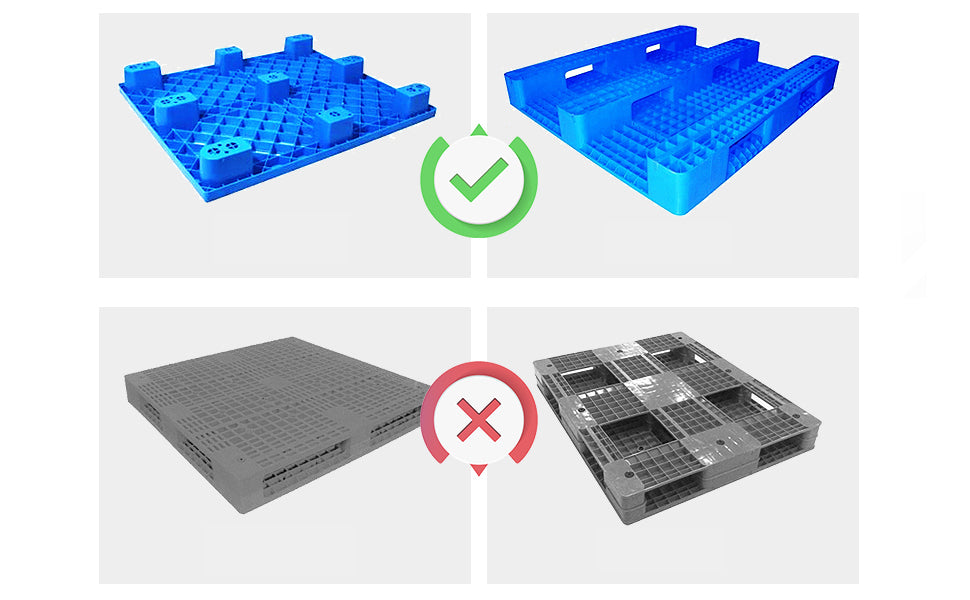

⚠️ Notice: Fix leg is incompatible with US standard pallets and is designed exclusively for open bottom pallets.
Warranty

Warranty

1-Year Warranty (from delivery date):

  • First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
  • 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
  • After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).

Special Warranty Terms:

  • Spare Parts: 3-month warranty.
  • Batteries: 6-month warranty.
  • Used Machines: 3-month parts-only warranty (no labor or returns).
  • Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.

Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
