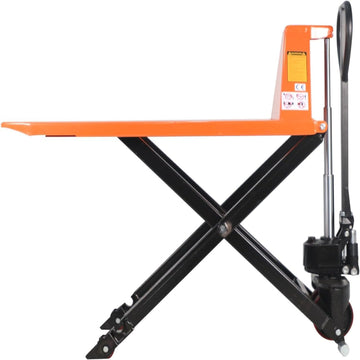

Pallet Lift 2200lbs. 45"Lx27"W Fork 3.3'' lowered. 31.5'' raised O-1015
  • Versatile design, ideal as both pallet truck and scissor lift table
  • Telescopic jack with 3 piston rods for light pumping force and high rigidity
  • Automatic support legs for added stability
  • Prevents movement when forks are raised for operator safety
  • Slows descent speed when heavy loads are on to prevent damage
  • 2 lateral stabilizers ensure stability when raised

Pallet Lift 2200lbs. 45"Lx27"W Fork 3.3'' lowered. 31.5'' raised O-1015

Price:
$620.00
$620.00
Save 0
  • SKU:
    O-1015
Ask a question

Estimated Shipping Widget will be displayed here!

Pallet Lift 2200lbs. 45"Lx27"W Fork 3.3'' lowered. 31.5'' raised O-1015

Pallet Lift 2200lbs. 45"Lx27"W Fork 3.3'' lowered. 31.5'' raised O-1015

$620.00
$620.00
Description
  • 3 position hand control-Raise, Lower, Neutral.
  • Ideal design with numerous possibilities makes the truck very suitable as a pallet truck and scissor lift table.
  • Truck automatically slows the descending speed when heavy goods are loaded to prevent cargo damage.
  • 210 steering arc. and small turning radius.
  • 2 lateral stabilizers when raised ensure good stability.

*PALLET TRUCKS

SKU DESCRIPTION  FORK SIZE  CAPACITY WT(lbs) PRICE
Y-1006 Deluxe 48*21'' 5,500 lbs 127 $340
Y-1007 48*27'' 134 $350
Y-1014 Scissor Lift 45*21'' 2,200 lbs 229 $590
Y-1015 45*27'' 240 $620
Y-1032 Scale Truck 45*27'' 4,400 lbs 308 $1260

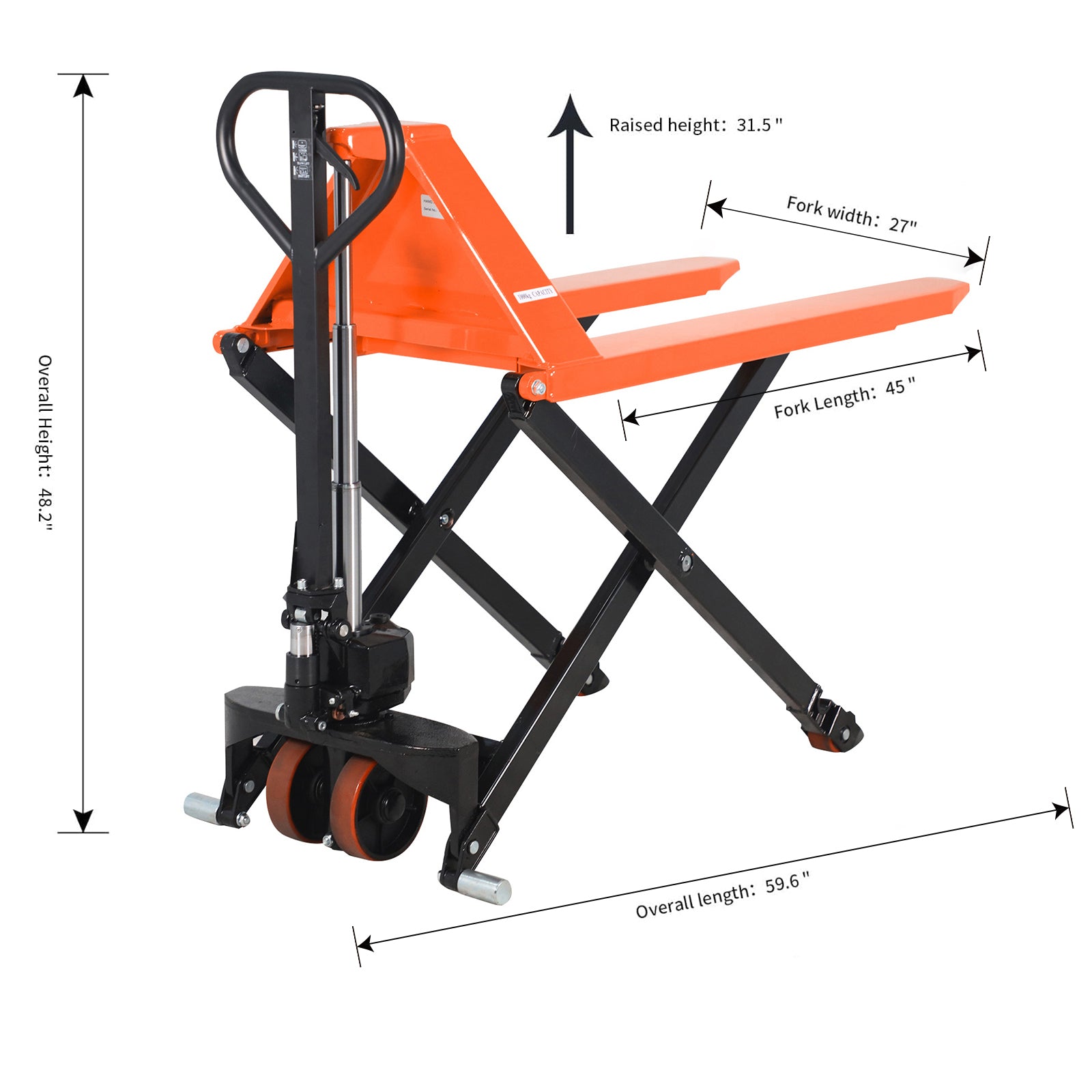

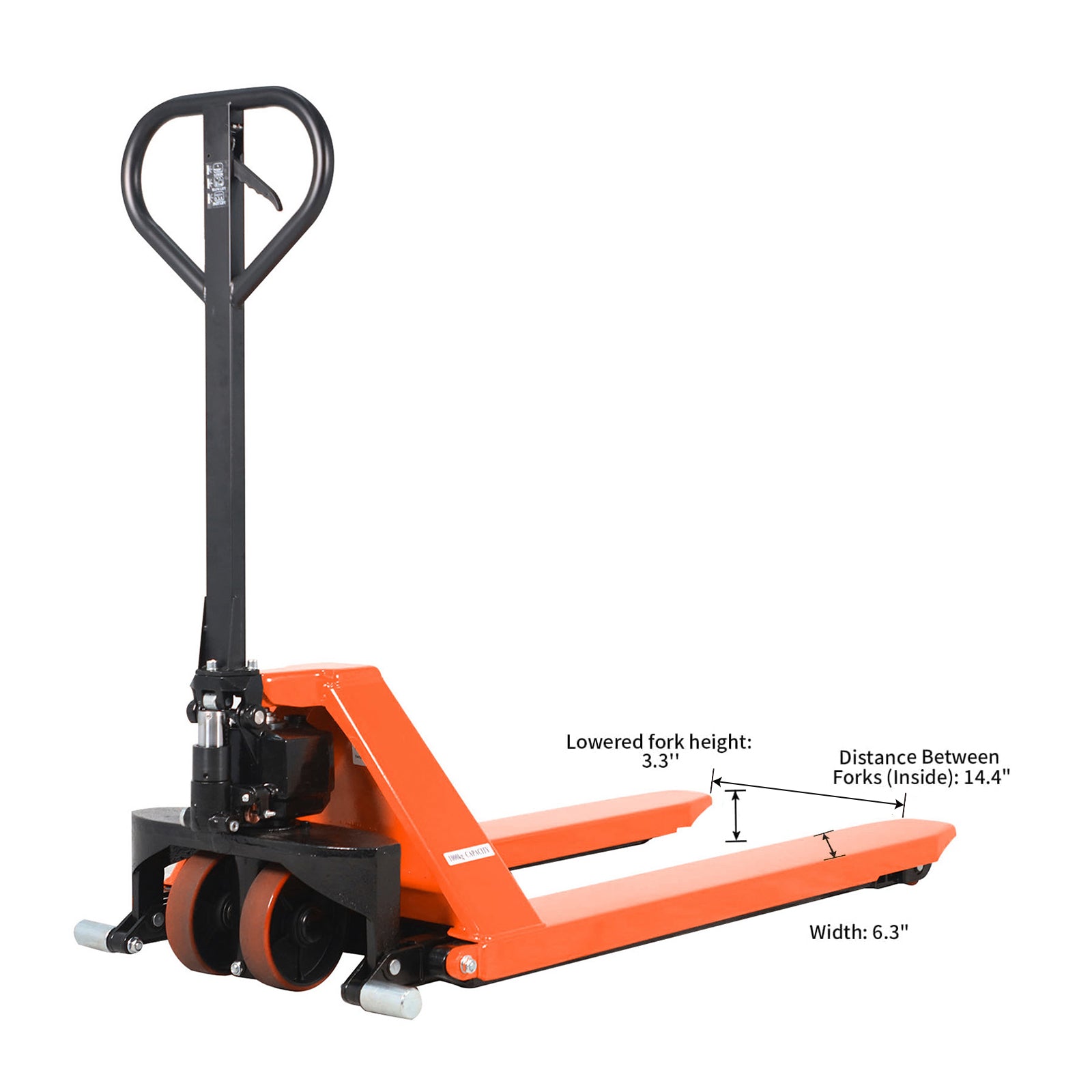

DIMENSIONS

  • 3.3" lowered and 31.5" raised height.
  • 7" polyurethane steering wheels.
  • 3" polyurethane fork wheels.
  • Overall length：59.6''
  • Single fork width：6.3''
  • Distance Between Forks (Inside)：8.4''

TEMPERATURE

Hydraulic fluid may not function properly below minus 13° F.

Warranty

Warranty

1-Year Warranty (from delivery date):

  • First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
  • 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
  • After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).

Special Warranty Terms:

  • Spare Parts: 3-month warranty.
  • Batteries: 6-month warranty.
  • Used Machines: 3-month parts-only warranty (no labor or returns).
  • Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.

Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
