Manual Hydraulic Stacker Pallet Stacker Adjustable Forks 2200lbs Cap. 63" Lift Height O-3003
  • High-quality steel mast for rigidity and durability.
  • Adjustable forged forks.
  • Efficient pump for easier operation.
  • Foot and hand controls reduce physical strain on the operator.
  • Metal grid protects the user from lift chains.
  • Safety wheel guard and brake system ensure secure operation.

Manual Hydraulic Stacker Pallet Stacker Adjustable Forks 2200lbs Cap. 63" Lift Height O-3003

Price:
$1,860.00
$1,860.00 $2,100.00
Save 11%
  • SKU:
    O-3003
Description

Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.

  • High quality steel mast and strong steel construction ensures rigidity and durability.
  • High efficient pumps makes the control easier to operate.
  • Metal grid protects user from lift chains.
  • With safety wheel guard and brake system to ensure safety during operation.
  • Manually raise and lower loads with foot pump and handle operation.

DIMENSIONS

  • Overall width: 37.6''
  • Overall length: 66.1''
  • Load center: 19.7''
  • Recommended Aisle Width: 84.5"
  • Turning radius: 48.6''
  • Inner legs width: 12.7''
  • Outer legs width: 21.8''

MAST

  • Lifting height: 63''
  • Mast lowered height: 82.3''
  • Mast extended height: 82.3''

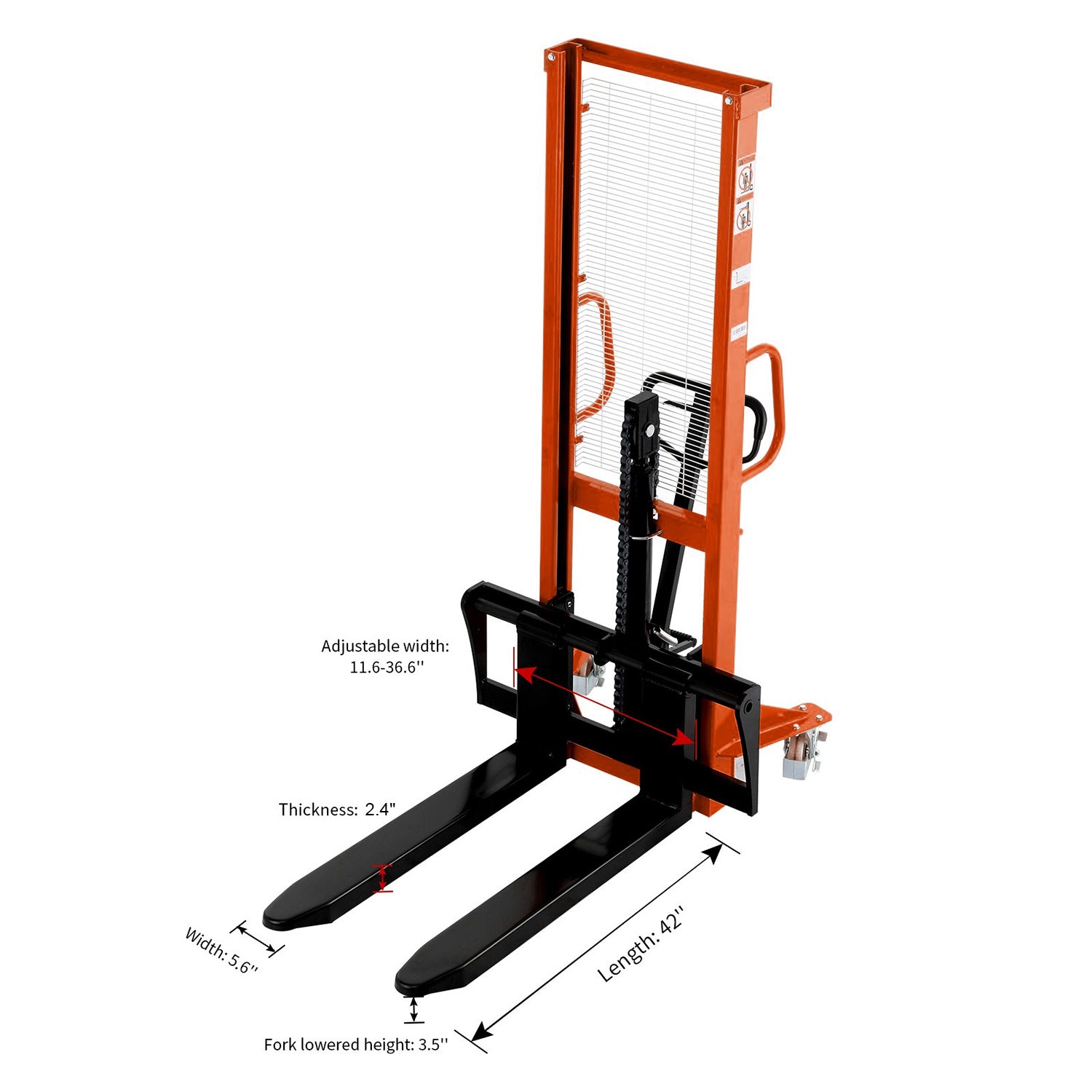

FORKS

  • Adjustable width: 11.6-36.6''
  • Thickness: 2.4''
  • Width: 5.6''
  • Length: 42''
  • Fork lowered height: 3.5''

FEATURES

  • Foot Operated Pump: Lift Height nearly 1'' per stroke.

Warranty

Warranty

1-Year Warranty (from delivery date):

  • First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
  • 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
  • After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).

Special Warranty Terms:

  • Spare Parts: 3-month warranty.
  • Batteries: 6-month warranty.
  • Used Machines: 3-month parts-only warranty (no labor or returns).
  • Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.

Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
