Manual Hydraulic Stacker Pallet Stacker Adjustable Forks 1100lbs Cap. 63" Lift Height Y-3004
-
High-quality steel mast for rigidity and durability.
-
Adjustable forged forks.
-
Efficient pump for easier operation.
-
Foot and hand controls reduce physical strain on the operator.
-
Metal grid protects the user from lift chains.
-
Safety wheel guard and brake system ensure secure operation.
Manual Hydraulic Stacker Pallet Stacker Adjustable Forks 1100lbs Cap. 63" Lift Height Y-3004
Price:
Regular price
$1,890.00
Sale price
$1,890.00
Regular price
$2,200.00
Save 14%
Estimated Shipping Widget will be displayed here!
Description
Warranty
- Compact design for pallets, perfect stacking, and pallet positioning as well as stocking and refilling shelves.
- High-quality steel mast and strong steel construction ensure rigidity and durability
- High efficient pumps make the control easier to operate
- Metal grid protects the user from lift chains
- With safety wheel guard and brake system to ensure safety during operation
- Manually raise and lower loads with foot pump and handle operation.
| MODEL NO. | CAPACITY | LIFTING HEIGHT | WHEEL DIAMETER | WEIGHT | Price |
| A-3005 | 2200 lbs | 63'' | 5.8'' | 647 lbs | $2200 |
| A-3004 | 1100 lbs | 63'' | 5.8'' | 490 lbs | $2000 |
DIMENSIONS:
- Overall width: 60''
- Overall length: 52.7''
- Load center: 19.7''
- Recommended Aisle Width: 77.8"
- Turning radius: 47.2''
MAST:
- Lifting height: 63''
- Mast lowered height: 78.7''
- Mast extended height: 82.7''

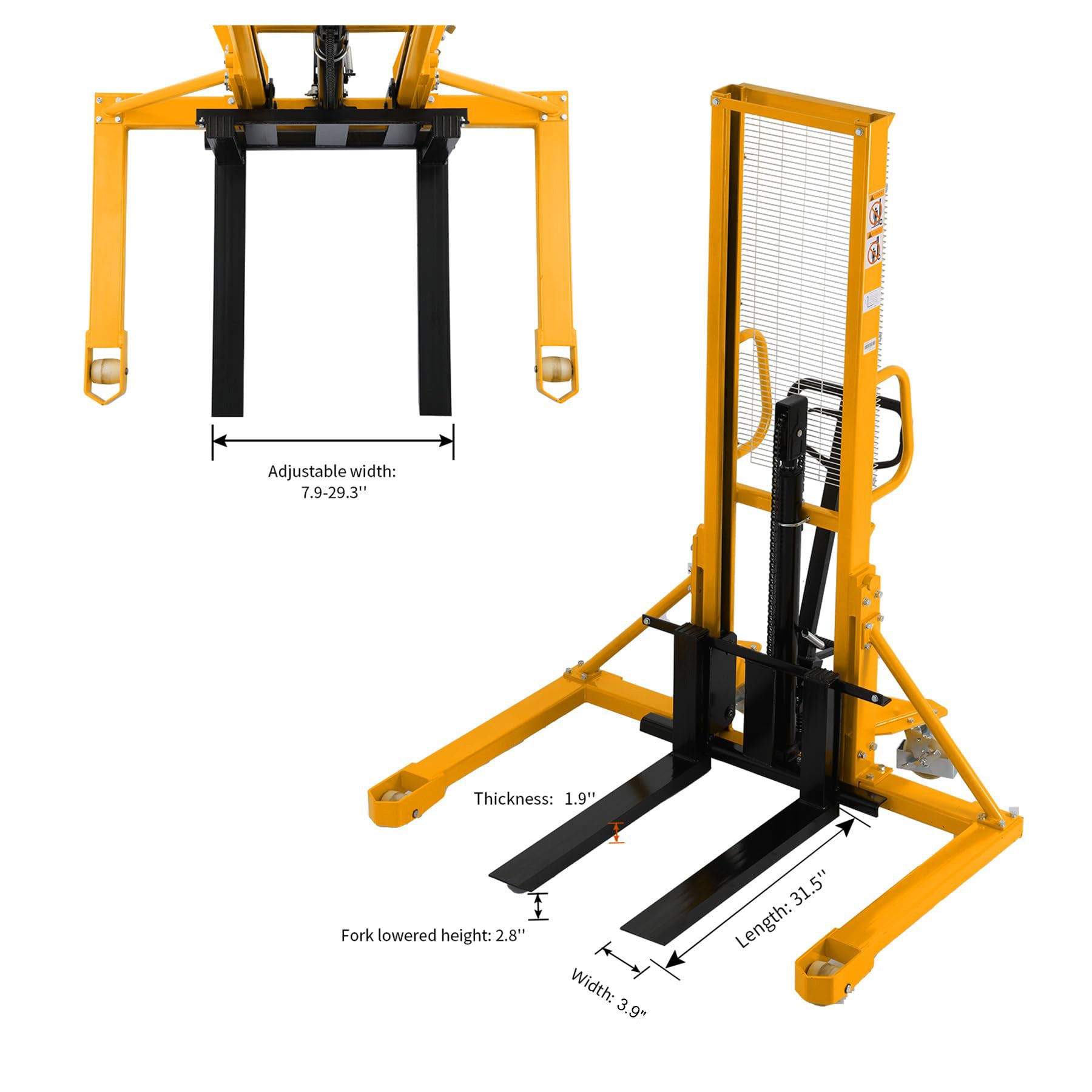

FORKS:
- Adjustable width: 7.9-29.3''
- Thickness: 1.9''
- Width: 3.94''
- Length: 31.5''
- Fork lowered height: 2.8''
STRADDLE LEGS:
- Inner width: 51.1''
- Height: 4.3''
FEATURES:
- Foot Operated Pump: Lift Height nearly 1'' per stroke
Warranty
1-Year Warranty (from delivery date):
- First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
- 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
- After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).
Special Warranty Terms:
- Spare Parts: 3-month warranty.
- Batteries: 6-month warranty.
- Used Machines: 3-month parts-only warranty (no labor or returns).
- Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.
Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
