Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck O-1034
  • Lithium battery: 24V/20AH.
  • Ruyi handle with bully switch.
  • High-quality emergency switch (key switch).
  • Integrated rocker arm for even stress and long-lasting use.
  • Horizontal-mounted motor for easy maintenance.
  • External battery charger connector for separate charging.
  • Single fork roller for smooth operation.

Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck O-1034

Price:
Regular price $1,439.00
Sale price $1,439.00 Regular price $1,680.00
Save 14%
  • SKU:
    O-1034

Estimated Shipping Widget will be displayed here!

Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck O-1034

Lithium Full Electric Pallet Jack Lithium Power Pallet Jack 3300lbs Hydraulic Pallet Truck O-1034

Regular price $1,439.00
Sale price $1,439.00 Regular price $1,680.00
Description

Powered navigation for urban deliveries, small markets, and limited stock space with reliable function.

  • Quick-change battery reduces downtime.
  • Push-button lift control and forward/reverse thumb wheels on the handle.
  • 3 hours of service per charge. 3 hours charge time. Battery life may depend on the usage and environment.
  • 24 hours continuous use with 1 extra battery.
  • Gradeability(laden/unladen): 5%/20%

* BATTERY POWERED PALLET TRUCKS

MODEL NO. FORK SIZE L x W LOAD CAPACITY WT.(LBS) RECHARGEABLE
BATTERY
DRIVE
MOTOR
WHEEL
DIAMETER
PRICE EACH
Y-1034 48x27" 3,300 lbs. 251 24V/20AH 0.75 kw DC 8.3"/3.15" $1,510
Y-1037 48x27" 3,300 lbs. 290 24V/20AH 0.75 kw DC 8.27"/2.95" $1,680

*Includes one lithium-ion battery and charger

*REPLACEMENT PARTS

MODEL NO. DESCRIPTION SPECIFICATION WT.(LBS) PRICE EACH
S-1001 Replacement Lithium Ion Battery 24V/20AH 18 $420
S-1009 Replacement Charger 24V/6A 11 $135

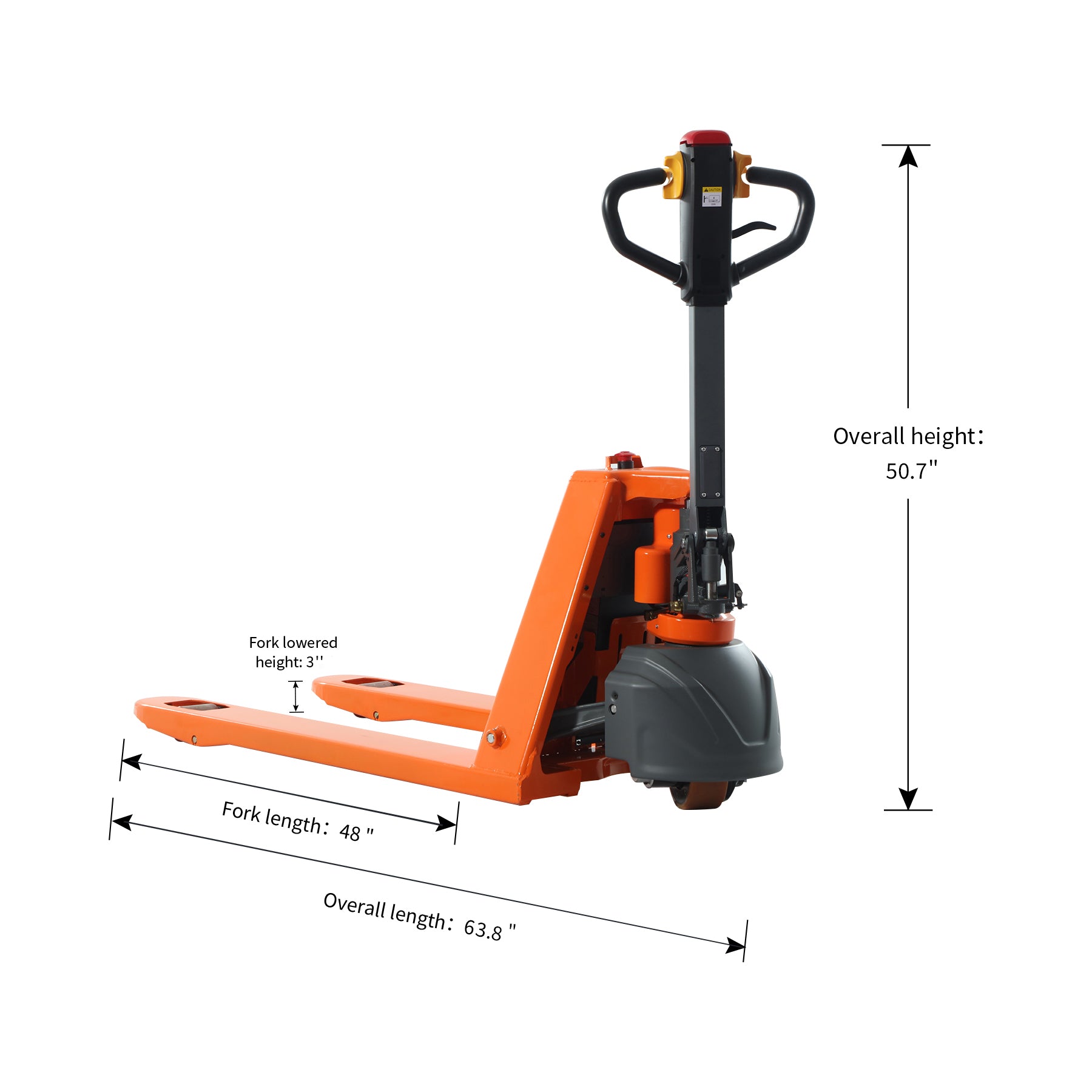

DIMENSIONS:

  • Overall: 65" x 27"x47.24" (L xWx H)
  • Lowered height: 3.3''
  • Raised height: 7½"

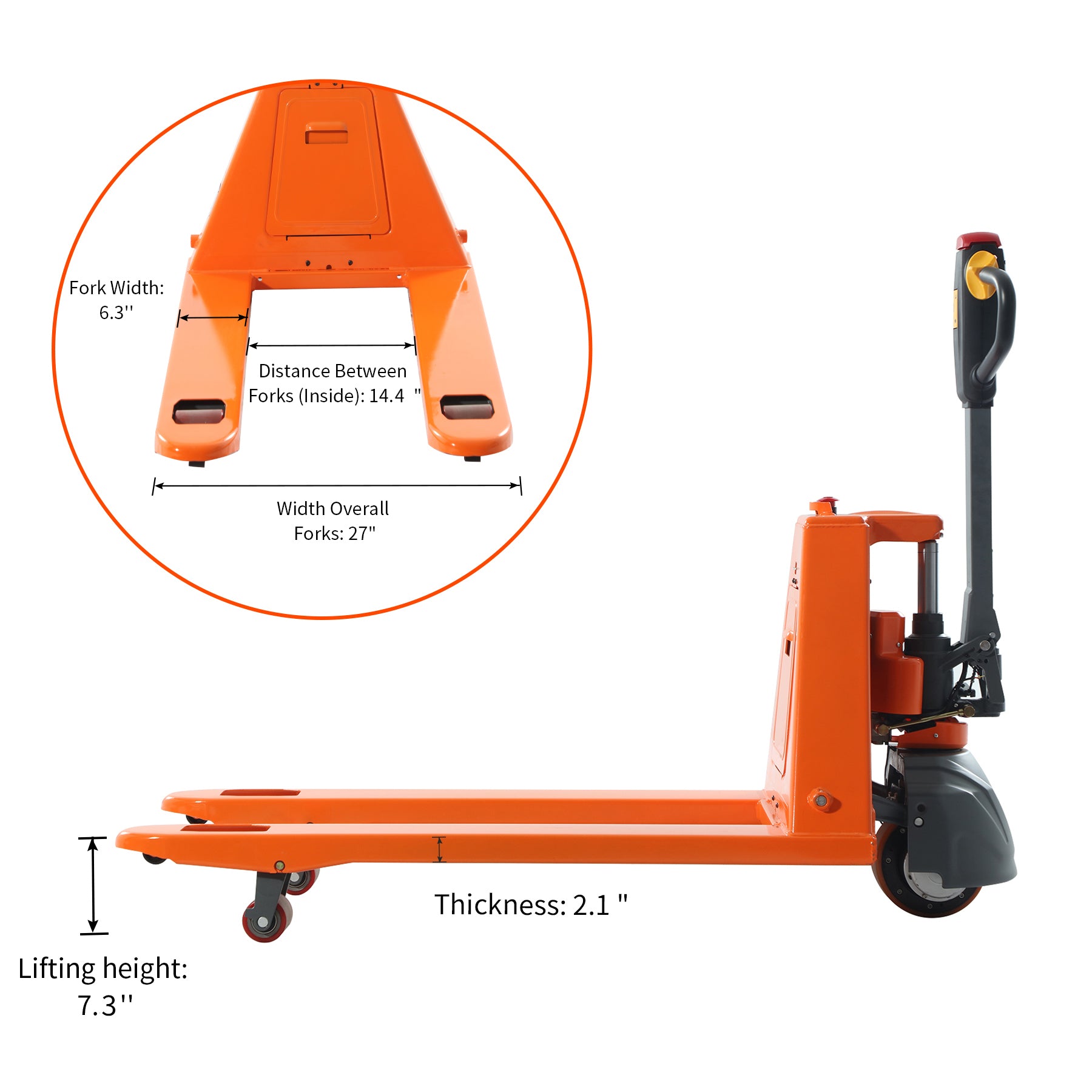

FORKS:

  • Actual: 48 x 27"
  • Width: 6.3"
  • Thickness: 2.1"
  • Distance Between Forks (Inside): 14.37"

FEATURES:

  • Non-marking polyurethane wheels. 180° steering arc.

SPEED:

  • Empty: 2.8mph
  • Loaded: 2.67 mph

CHARGING:

  • Charger plugs into standard 110V-120V outlets.
  • Fully charge the battery before use to avoid damaging cells.
  • Charge the truck once a month even if it's without use.
  • LED light on charger shows battery charge status.
    • Green: Fully Charged
    • Red: Charging

SPECIFICATIONS:

  • Not explosion proof.
  • This truck is designed to be used on flat ground. Avoid uneven grounds with potholes, and large ramps.
  • Temperature range of working environment 50˚F~104˚F.

Specifications

Load Capacity 3300 LBS
Load Center Distance
23.6 inch
Raised Height 7.5 inch
lowered Height 3.1 inch
Fork Size 48*27 inch
Travel Speed (Laden/Unladen) 2.67/2.8 miles/h
Wheel Diameter 8.3 inch
Battery Type Lithium
Battery Capacity 24/20 V/Ah
Service Weight 251 LBS
Warranty

Warranty

1-Year Warranty (from delivery date):

  • First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
  • 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
  • After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).

Special Warranty Terms:

  • Spare Parts: 3-month warranty.
  • Batteries: 6-month warranty.
  • Used Machines: 3-month parts-only warranty (no labor or returns).
  • Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.

Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
