Heavy Duty Manual Hand Pallet Jack for Material Handling 7700 lbs 48" x27"Fork Y-1008
  • 3-position hand control: Raise, Lower, Neutral.
  • Entry/exit rollers for smoother movement.
  • Overload valve for durability.
  • 210° steering angle with a tight turning radius.

Heavy Duty Manual Hand Pallet Jack for Material Handling 7700 lbs 48" x27"Fork Y-1008

Price:
$520.00
$520.00
Heavy Duty Manual Hand Pallet Jack for Material Handling 7700 lbs 48" x27"Fork Y-1008

Heavy Duty Manual Hand Pallet Jack for Material Handling 7700 lbs 48" x27"Fork Y-1008

$520.00
$520.00
Description
  • Heavy-duty capacity with 7,700 lbs
  • 3 position hand control-Raise, Lower, Neutral
  • Entry/exit roller, more freely travel
  • Equipped with an over-load valve, with long service time
  • 210 steering arc. And small turning radius
  • With Copping Supporting NOG & strengthening ribbing under the top triangle cover
  • Rubber-wrapped handle PU wheels. Non-marking, low-noise wheels.

*PALLET TRUCKS

SKU DESCRIPTION  FORK SIZE  CAPACITY WT(lbs) PRICE
Y-1006 Deluxe 48*21'' 5,500 lbs 127 $340
Y-1007 48*27'' 134 $350
Y-1014 Scissor Lift 45*21'' 2,200 lbs 229 $590
Y-1015 45*27'' 240 $620
Y-1032 Scale Truck 45*27'' 4,400 lbs 308 $1260

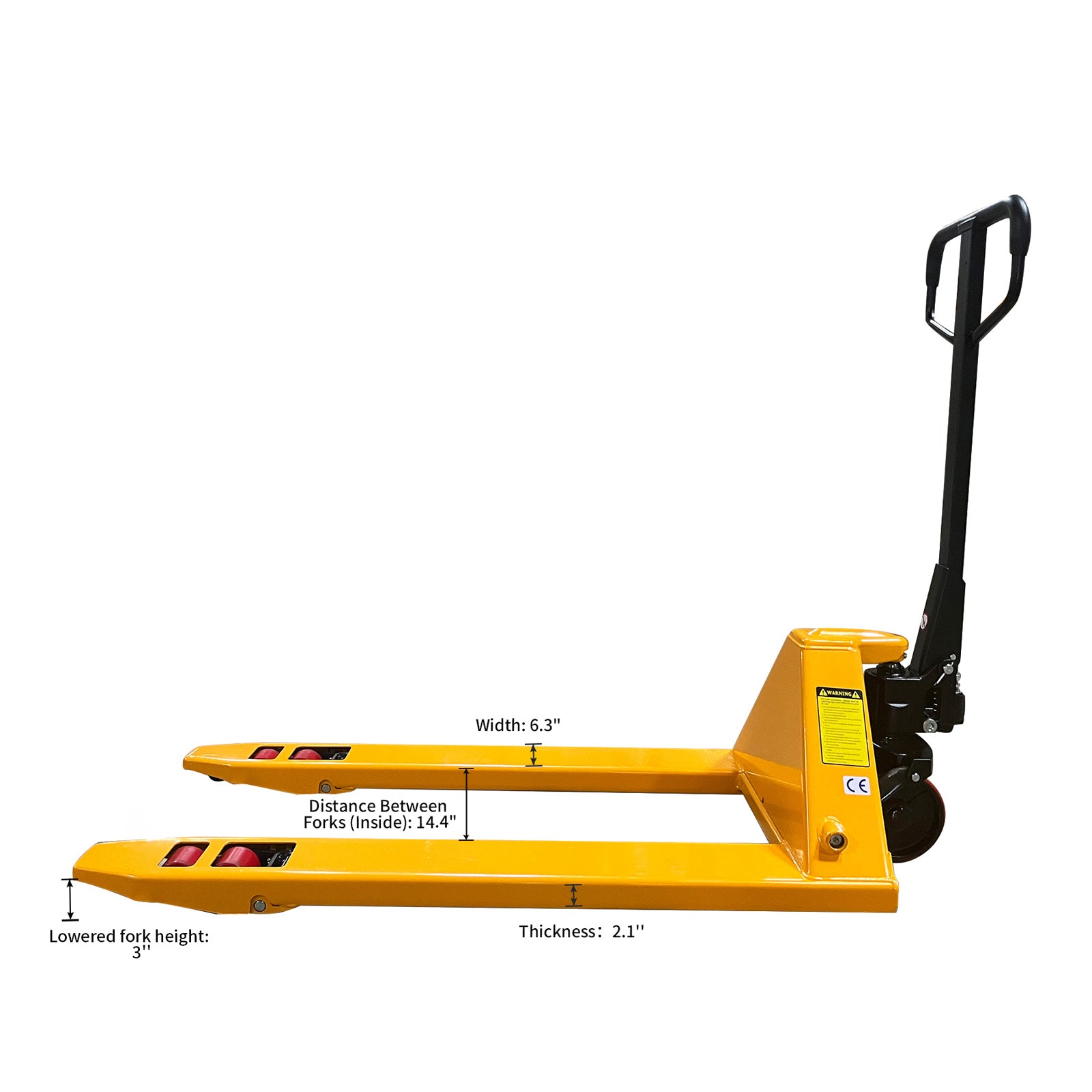

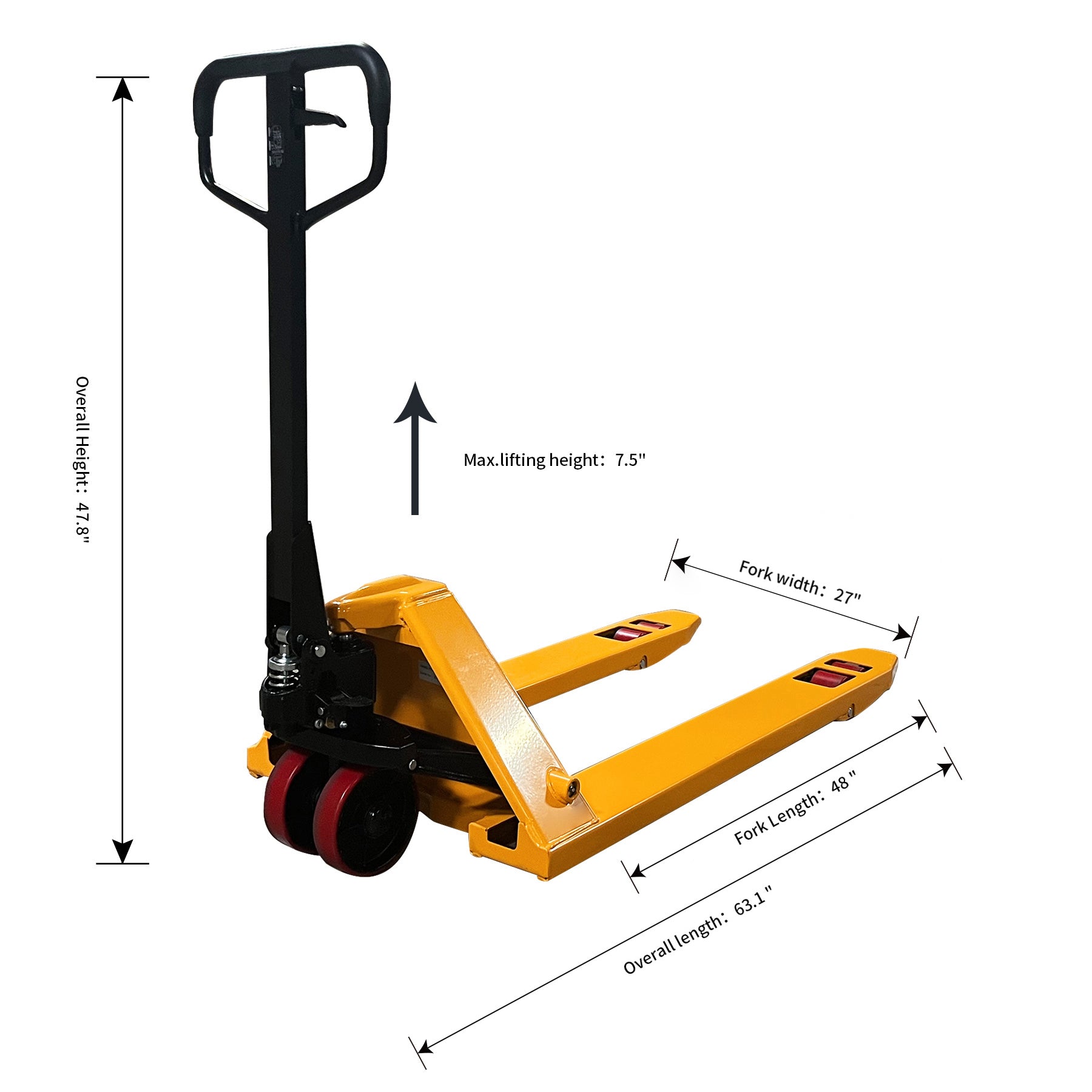

  DIMENSIONS

  • 3" lowered and 7.5" raised height.
  • 7" polyurethane steering wheels.
  • 3" polyurethane fork wheels.
  • Overall length：63.1''
  • Single fork width：6.3''
  • Fork thickness：2.1''
  • Distance Between Forks (Inside)：14.4''


  • TEMPERATURE

    Hydraulic fluid may not function properly below minus 13° F.
