Fully Electric Mini Order Picker With Load Tray 200lbs. Capacity Y-5001
Fully Electric Mini Order Picker With Load Tray 200lbs. Capacity (6814947541160)
Fully Electric Mini Order Picker With Load Tray 200lbs. Capacity (6814947541160)
Fully Electric Mini Order Picker With Load Tray 200lbs. Capacity (6814947541160)
Fully Electric Mini Order Picker With Load Tray 200lbs. Capacity (6814947541160)
  • Compact design (29" width) for easy navigation through narrow aisles and low doors.
  • Reach heights up to 197" for efficient stock picking, inspections, and installations.
  • Fingertip control and foot sensors for easy operation and safety.
  • Adjustable mesh tray offers good downward visibility and secure loading.

Fully Electric Mini Order Picker With Load Tray 200lbs. Capacity Y-5001

Price:
$12,790.00
$12,790.00 $11,999.00
Description

HEIGHT EXPERT

  • 500-watt drive motor, 2,200-watt lift motor.
  • The safety guard gives the biggest safety concern that the power will be cut off if the gate is open when lifting to 20'' height.
  • Dual foot pedals will detect if the operator has both feet properly positioned on the platform for safety aims.
  • Hand sensors ensure the operator has both hands on the controls for normal travel and lift functions.
  • Humanism design with flashing light.

*ORDER PICKER

SKU NO. LOAD TRAY CAPACITY  LOAD DECK CAPACITY  PLATFORM LIFTING HEIGHT  MAX. REACHABLE HEIGHT WHEEL           DIAMETER  WT(LBS)  PRICE EACH
A-5001 200 lbs 330 lbs 118'' 197'' 9.8''/7'' 1650 $11397

*SHIPS ASSEMBLED VIA MOTOR FREIGHT

SPEED CHART SHEET
Lifting height  Travel speed
Mast collapsed 2.8 mile/h
19-39'' 1.4 mile/h
39-118'' 0.75 mile/h

REPLACEMENT PARTS

MODEL NO. BATTERY TYPE BATTERY CAPACITY WT. (LBS) DIMENSIONS PRICE EACH 2 PCS PRICE
S-1005 Gel Battery 24V/105AH 115 10.2x6.6x8.5" $600 $1,150

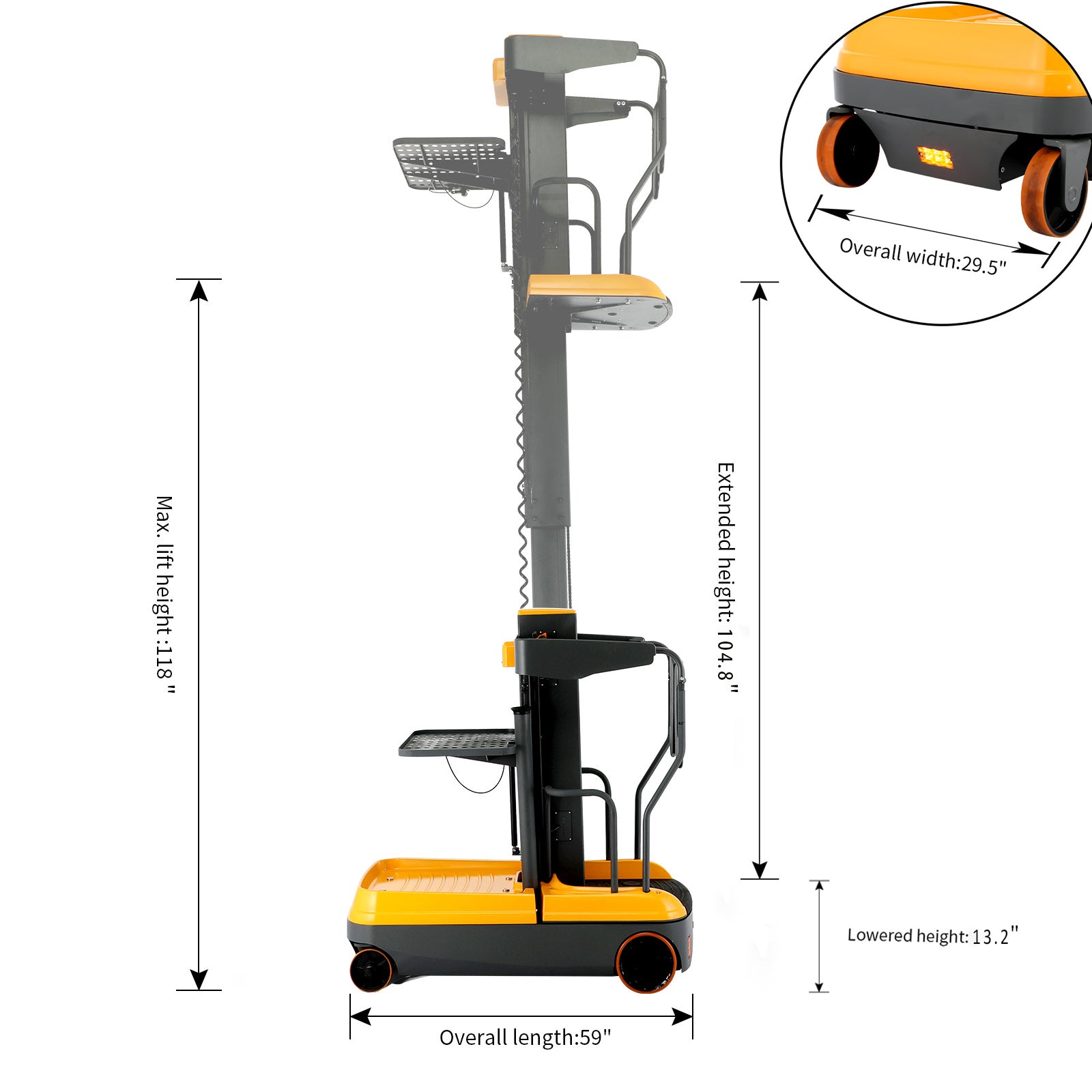

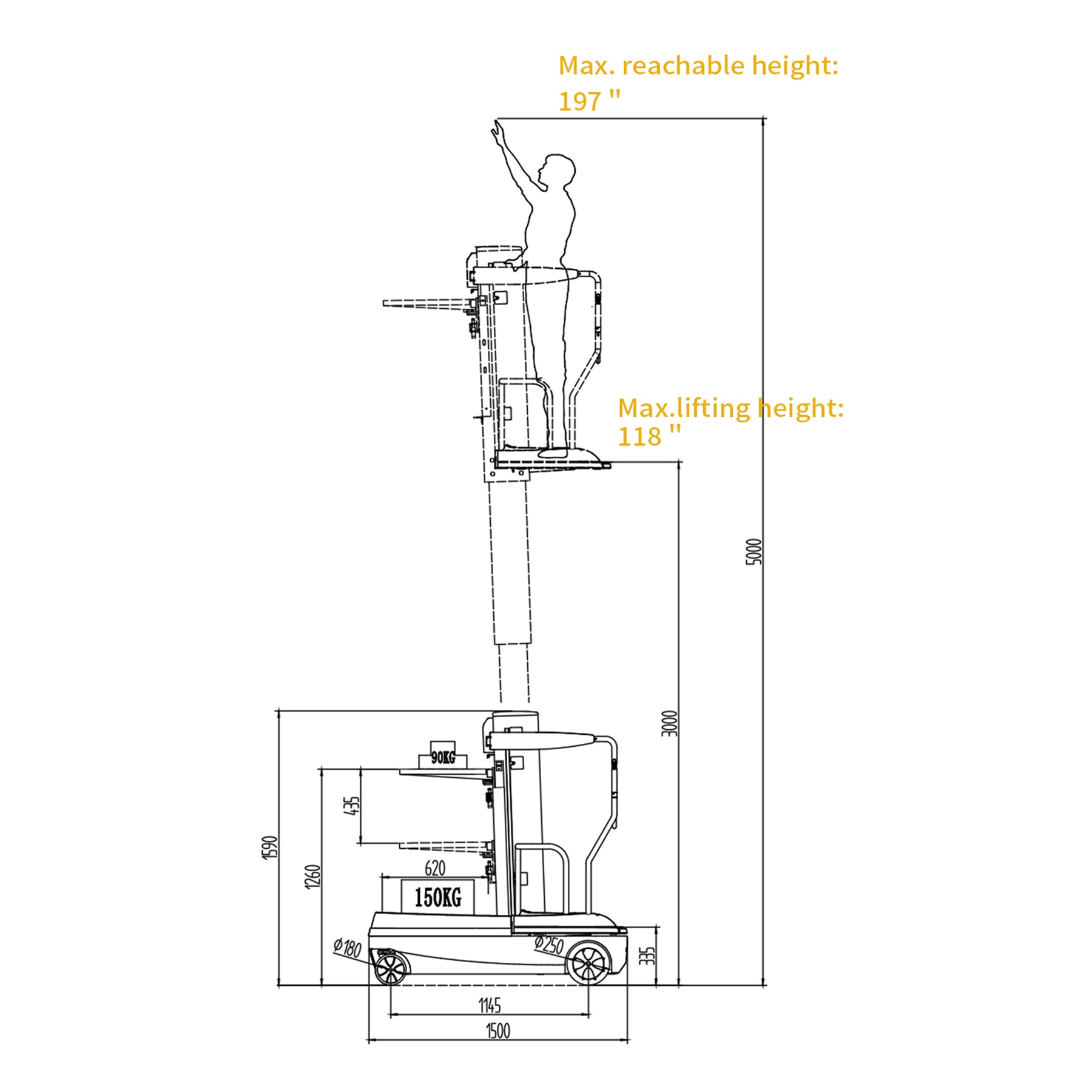

DIMENSIONS:

  • Overall Length: 59"
  • Overall width: 29.5''
  • Recommended Aisle Width:68.9"
  • Turning Radius : 51.2"

LOADING TRAY:

  • Adjustable height:10.2''
  • Size:27.5''x19.7''

FEATURES:

  • A high-powered solution for facilities and outlets
  • Idealy for handling high lift tasks, including stock picking, inspection, maintenance and installation.
  • Smart for light maintenance applications or picking tasks without a pallet.
  • 105 Ah rechargeable batteries free to maintain, built-in charger

    SPECIFICATIONS:

    • Not explosion proof.
    • This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramps.
    • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
    • Fully charge the battery before use to avoid damaging cells.
    • Charger plugs into standard 110V-120V outlets.
    • Charge the truck once a month even if it's not in use.
