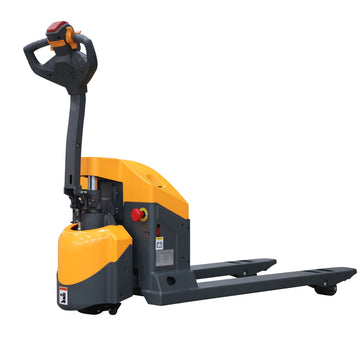

Full Electric Pallet Jack With Emergency Key Switch 3300lbs Cap. 48" x27" Y-1029
  • Floating balance wheel ensures smooth, stable travel with anti-vibration.
  • Removable balance wheel for easy maintenance.
  • Integrated rock arm for improved strength and reduced fork deflection.
  • Horizontal drive wheel protects the motor from dust and dirt.
  • Height limit switch for added safety.

Full Electric Pallet Jack With Emergency Key Switch 3300lbs Cap. 48" x27" Y-1029

Price:
$1,910.00
$1,910.00 $2,100.00
Save 9%
  • SKU:
    Y-1029
Full Electric Pallet Jack With Emergency Key Switch 3300lbs Cap. 48" x27" Y-1029

Full Electric Pallet Jack With Emergency Key Switch 3300lbs Cap. 48" x27" Y-1029

$1,910.00
$1,910.00 $2,100.00
Description

Effortlessly move heavier loads with these quiet, self-propelled pallet trucks. Load and unload delivery and transfer trucks.Free your manpower

  • Fully Electric Operation: 3300 lb capacity, 48” x 27” forks, powered by a 24V/65Ah GEL battery with 3–5 hours of work per charge.

  • Floating Balance Wheels: Reduce side swing for smoother, more stable travel.

  • Swingarm Mechanism: Enhances structural strength and distributes fork force evenly to minimize height deviation over time.

  • Horizontal Motor Design: Elevated motor prevents water, dust, and oil buildup for longer service life.

  • Textured Multi-Function Handle: Includes lift/lower controls, forward/reverse thumb wheels, and safety switch for secure, intuitive operation.

  • Turtle Speed Mode: Enables slow, precise movement in tight spaces for better control.

  • Height Limit Switch: Prevents over-extension to enhance operational safety.

  • Built-in Charger: Fully recharges in 6–8 hours for up to 3–5 hours of use. Charge at least once a month to maintain battery health.

  • Compact Design: Fits easily into narrow aisles, supermarkets, and cargo containers.

  • Durable Construction: Rocker arm design reduces fork deflection, maintaining performance over time.

  • Partial Assembly Required.

Additional Info

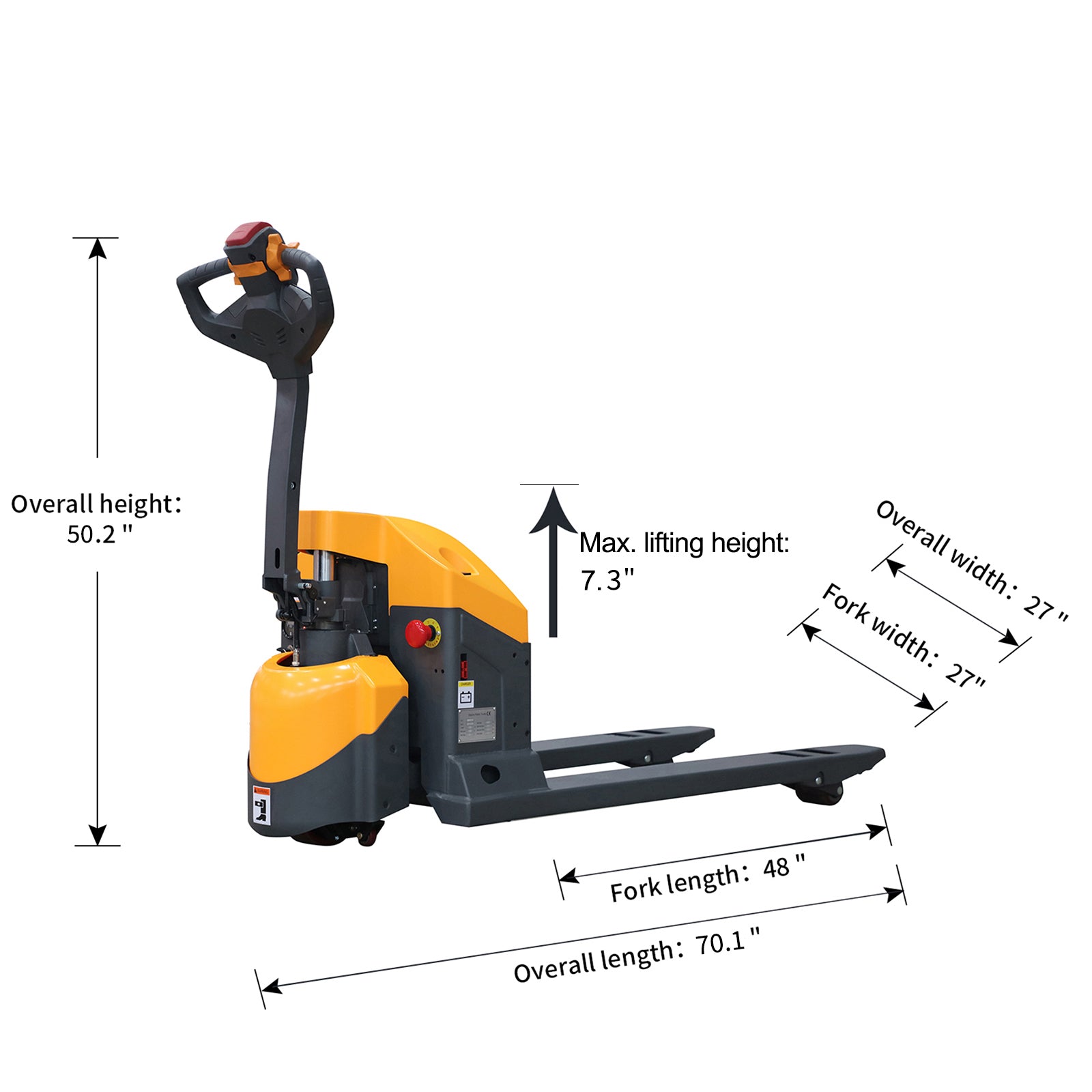

DIMENSIONS

Overall: 67.8" x 27"x49.21" (L xWx H)

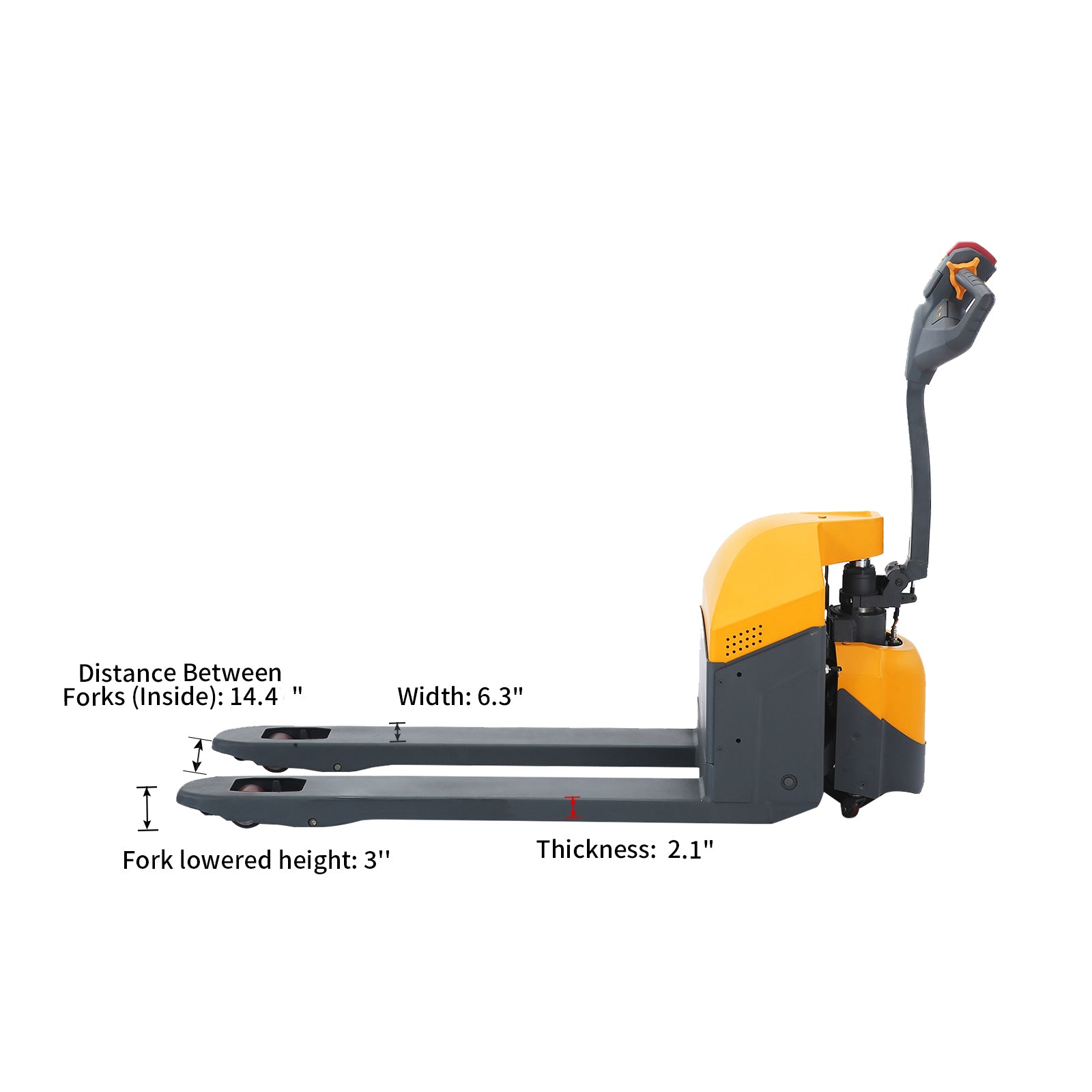

FORKS

  • Actual: 48 x 27"
  • Width: 6.3"
  • Thickness: 2"
  • Distance Between Forks (Inside): 14.37"

FEATURES

Non-marking wheels

SPEED

  • Empty: 2.98 mph
  • Loaded: 2.67 mph

BATTERY

  • Type: Gel Battery
  • Fully charge the battery before use to avoid damaging cells.
  • Charger plugs into standard 110V-120V outlets.
  • Full charges may take up to 10 hours.
  • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.

Specifications

Model Name T-1029
Load Capacity 3300 LBS
Load Center Distance 23.6 inch
Height, Mast Lowered 3 inch
Lifting Height 7.5 inch
Fork Dimensions 48*27*2 inch
Lifting Speed(Laden/Unladen) 2.67/2.8 inch/s
Travel Speed (Laden/Unladen) 2.67/2.8 miles/h
Wheel Diameter 7.7 inch
Turning Radius 57.2 inch
Battery Type GEL
Battery Capacity 24/65 V/Ah
Service Weight 451 LBS
Warranty

Warranty

1-Year Warranty (from delivery date):

  • First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
  • 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
  • After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).

Special Warranty Terms:

  • Spare Parts: 3-month warranty.
  • Batteries: 6-month warranty.
  • Used Machines: 3-month parts-only warranty (no labor or returns).
  • Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.

Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
