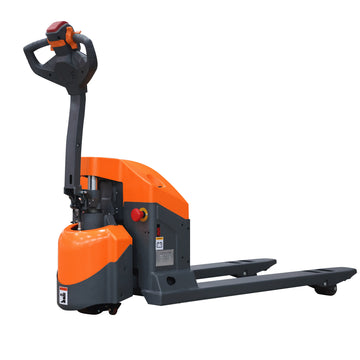

Full Electric Pallet Jack With Emergency Key Switch 3300lbs Cap. 48" x27" O-1029
  • Floating balance wheel ensures smooth, stable travel with anti-vibration.
  • Removable balance wheel for easy maintenance.
  • Integrated rock arm for improved strength and reduced fork deflection.
  • Horizontal drive wheel protects the motor from dust and dirt.
  • Height limit switch for added safety.

Full Electric Pallet Jack With Emergency Key Switch 3300lbs Cap. 48" x27" O-1029

Price:
Regular price $1,910.00
Sale price $1,910.00 Regular price
Save 0
  • SKU:
    O-1029

Estimated Shipping Widget will be displayed here!

Full Electric Pallet Jack With Emergency Key Switch 3300lbs Cap. 48" x27" O-1029

Full Electric Pallet Jack With Emergency Key Switch 3300lbs Cap. 48" x27" O-1029

Regular price $1,910.00
Sale price $1,910.00 Regular price
Description

Effortlessly move heavier loads with these quiet, self-propelled pallet trucks. Load and unload delivery and transfer trucks.

Free your manpower

  • Push-button lift controls and forward/reverse thumb wheels on an ergonomic handle. The reverse safety switch keeps the operator safe.
  • Maintenance-free batteries with built-out charger.
  •  5 hours of service per charge. Compact design moves easily in narrow warehouses and retail aisles.
  • Lift range: 3.1 to 7.5".
  • Polyurethane wheels.
  • 180° steering arc.
  • This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramps.
MODEL NO. LOAD CAPACITY BATTERY TYPE BATTERY CAPACITY WT.(LBS) DRIVE
MOTOR
WHEEL
DIAMETER
PRICE EACH
A-1029 3,300 lbs. GEL 24V/65AH 452 .65 kw DC 7.6"/3.15" $2180
*Includes Gel battery and Build-out charger
Lead time 1-2 Days
MODEL NO. LOAD CAPACITY BATTERY TYPE BATTERY CAPACITY WT.(LBS) DRIVE
MOTOR
WHEEL
DIAMETER
PRICE EACH
A-1030 4,400 lbs. GEL 24V/80AH 470.8 .65 kw DC 7.6"/3.15" $2830
*Includes Gel battery and Build-out charger
Lead time 1-2 Days



Additional Info

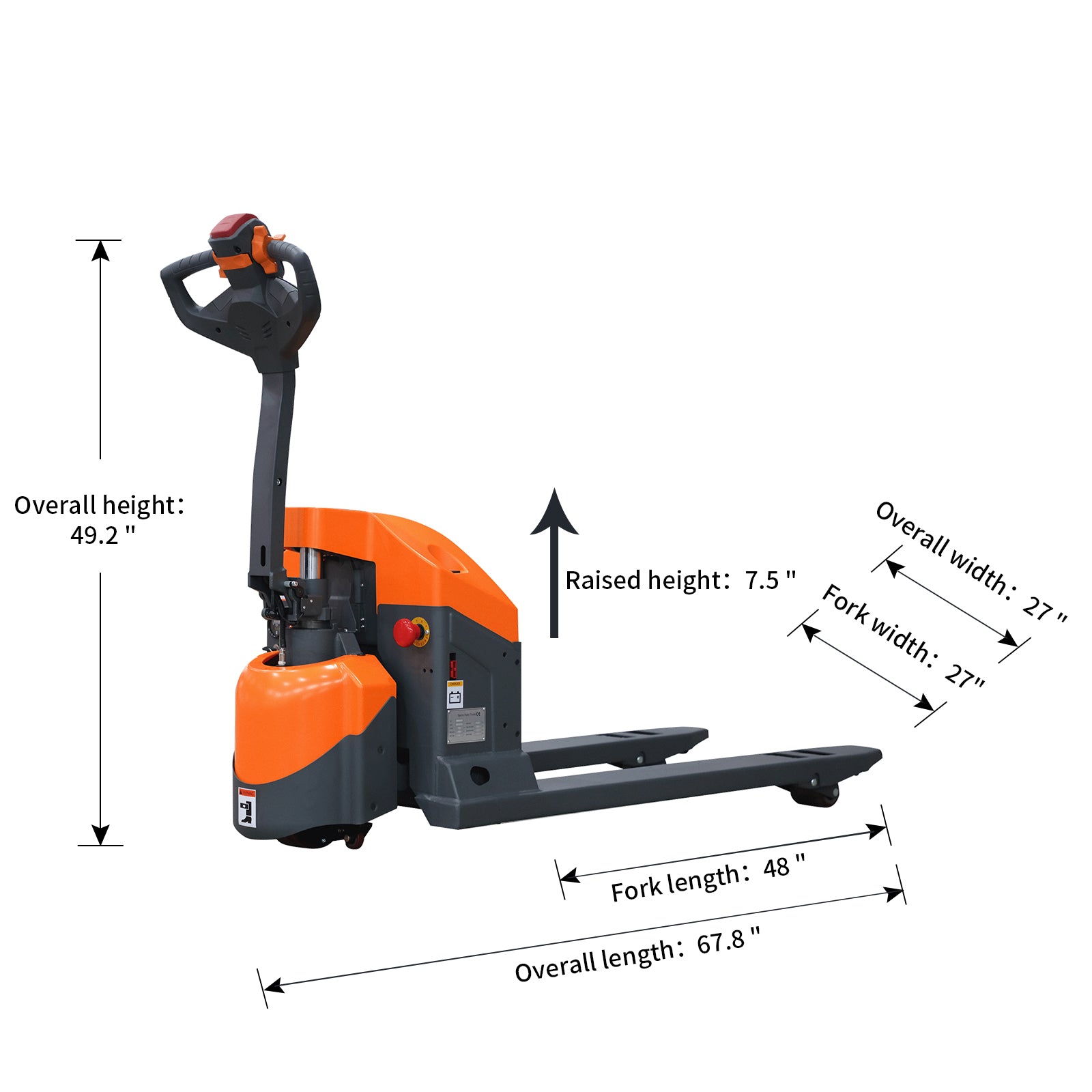

DIMENSIONS

Overall: 67.8" x 27"x49.21" (L xWx H)

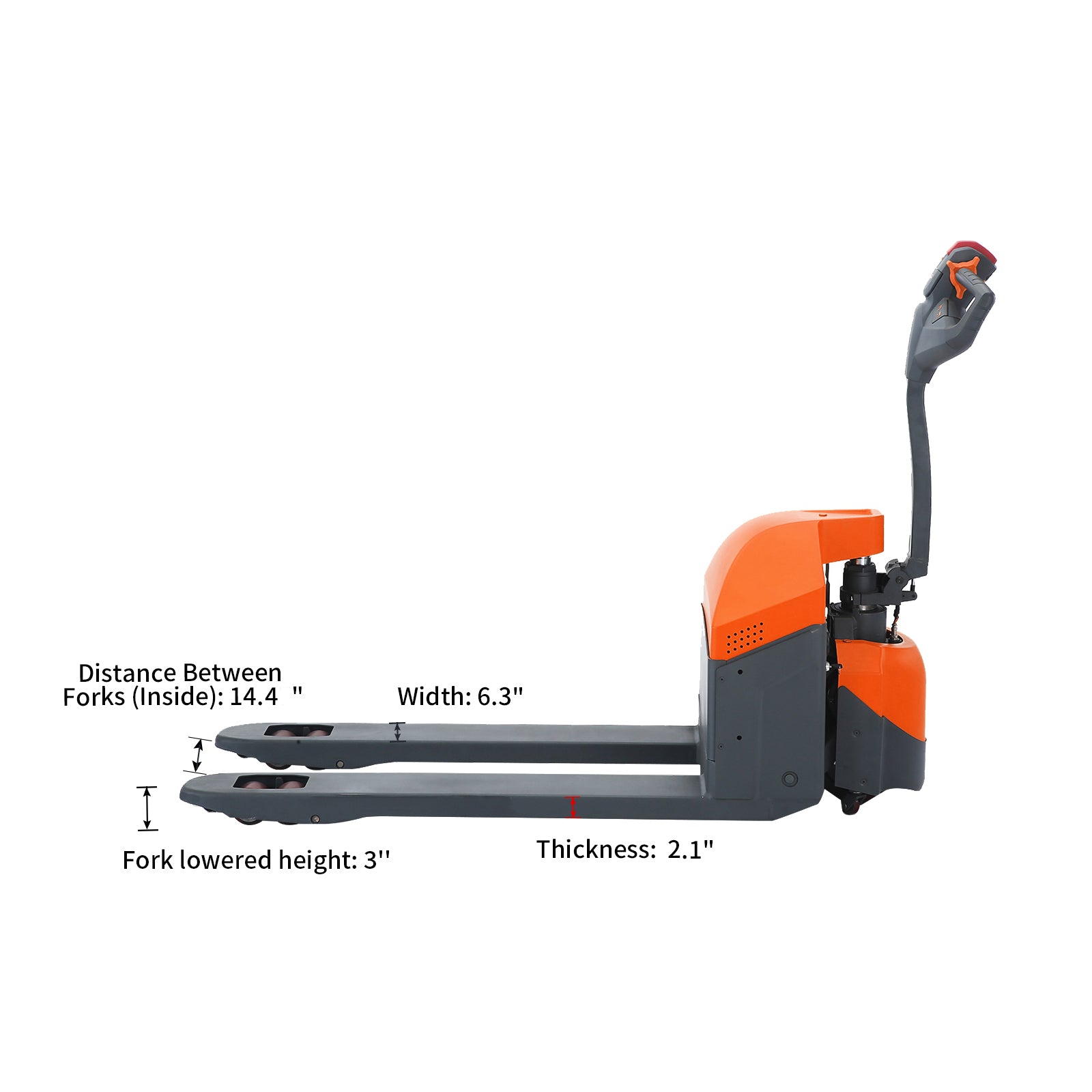

FORKS

  • Actual: 48 x 27"
  • Width: 6.3"
  • Thickness: 2"
  • Distance Between Forks (Inside): 14.37"

FEATURES

Non-marking wheels

SPEED

  • Empty: 2.98 mph
  • Loaded: 2.67 mph

BATTERY

  • Type: Gel Battery
  • Fully charge the battery before use to avoid damaging cells.
  • Charger plugs into standard 110V-120V outlets.
  • Full charges may take up to 10 hours.
  • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.

Specifications

Model Name T-1029
Load Capacity 3300 LBS
Load Center Distance 23.6 inch
Height, Mast Lowered 3 inch
Lifting Height 7.5 inch
Fork Dimensions 48*27*2 inch
Lifting Speed(Laden/Unladen) 2.67/2.8 inch/s
Travel Speed (Laden/Unladen) 2.67/2.8 miles/h
Wheel Diameter 7.7 inch
Turning Radius 57.2 inch
Battery Type GEL
Battery Capacity 24/65 V/Ah
Service Weight 451 LBS
Warranty

Warranty

1-Year Warranty (from delivery date):

  • First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
  • 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
  • After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).

Special Warranty Terms:

  • Spare Parts: 3-month warranty.
  • Batteries: 6-month warranty.
  • Used Machines: 3-month parts-only warranty (no labor or returns).
  • Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.

Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
