Counterbalanced Electric Stacker 3300lbs 118" High Local Pick-Up Y-3048

Product Description

• 750-watt drive motor, 2,200-watt lift motor.

• Perfect for approaching racks and trucks, as there are no straddle legs to obstruct a close approach.

• Upright walking function, making it especially suitable for narrow aisles.

• Vertical driving wheel for improved driving efficiency, easy installation, and maintenance.

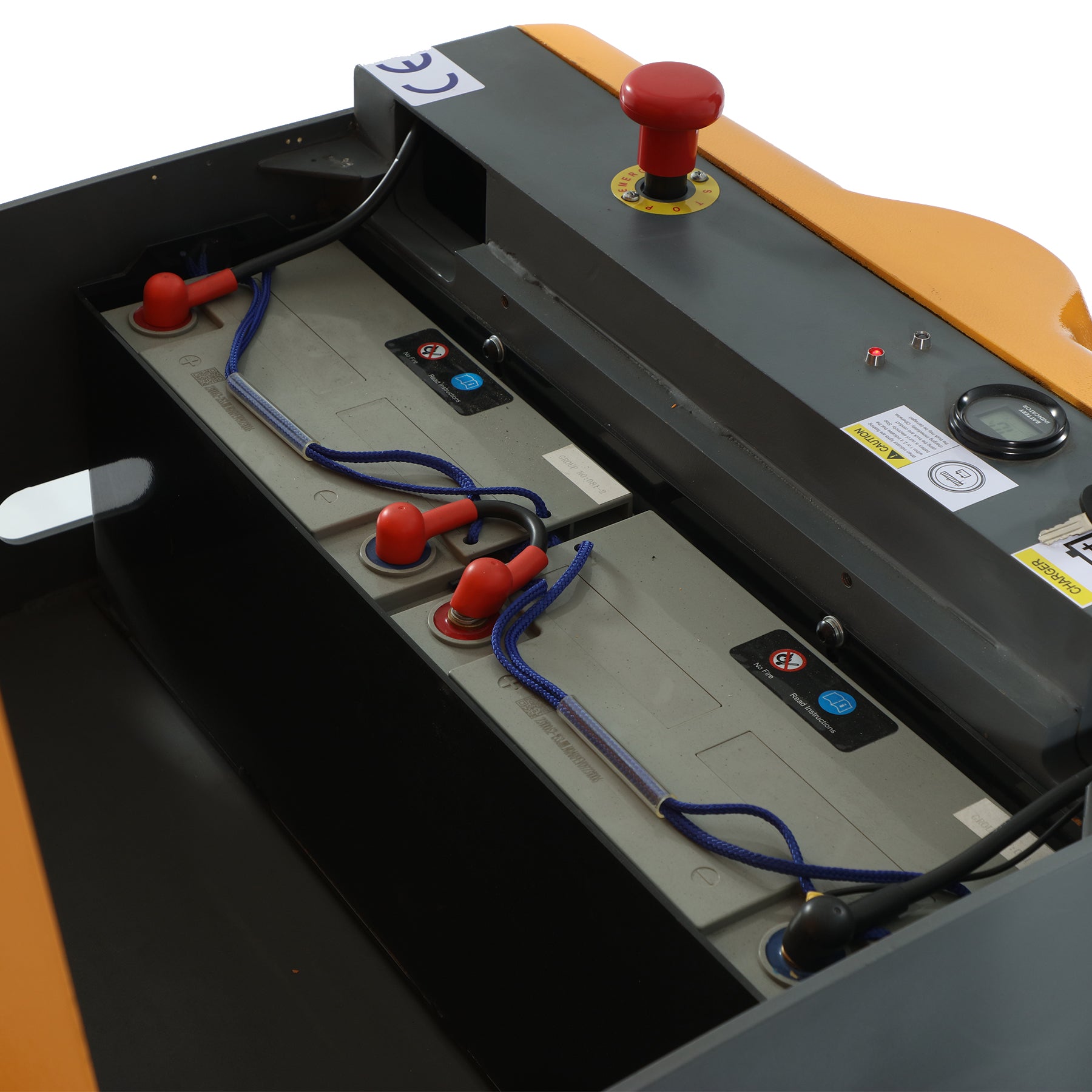

• 4-5 hours of service per charge: two 12-volt, 125 Ah rechargeable GEL batteries

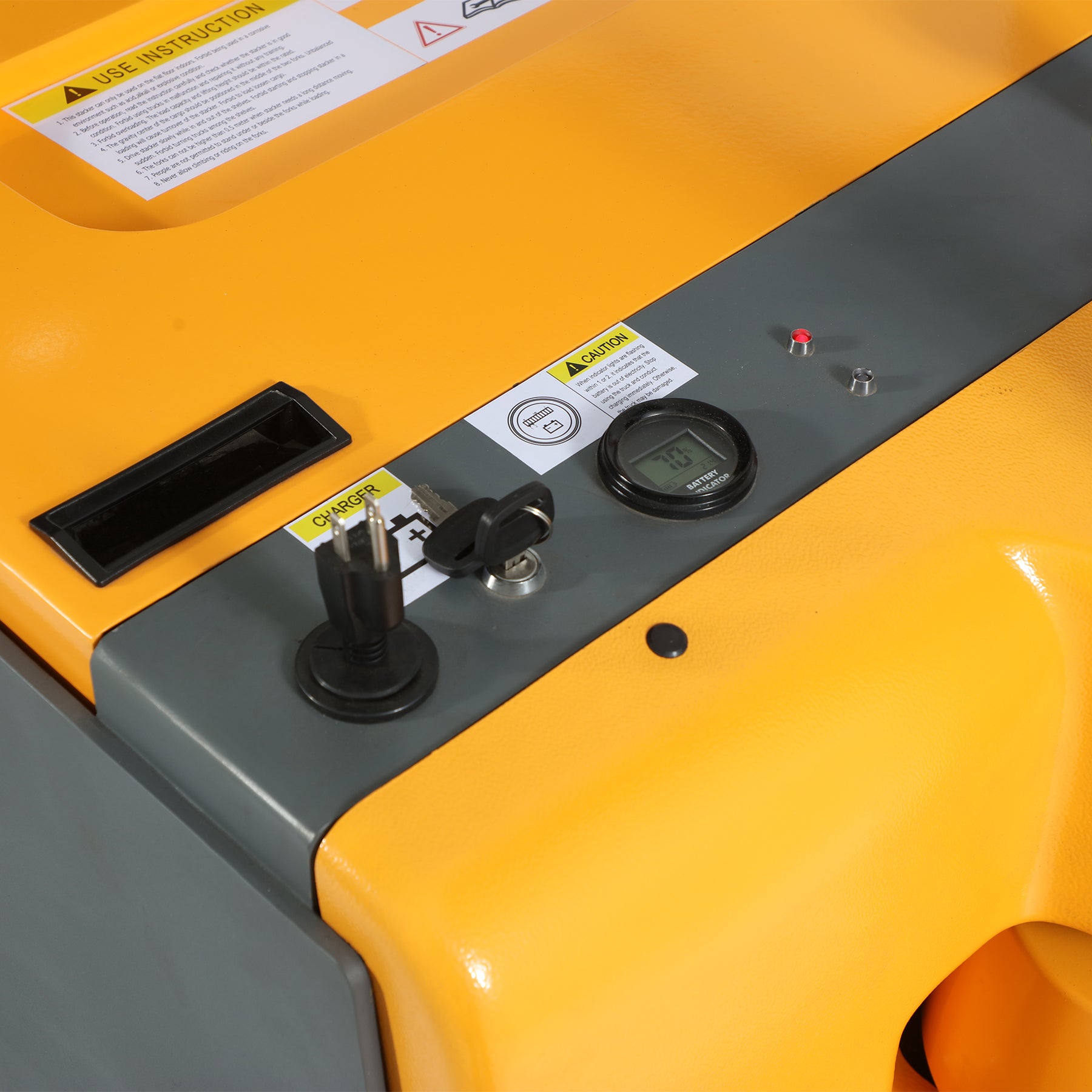

• Built-in 110V charger.

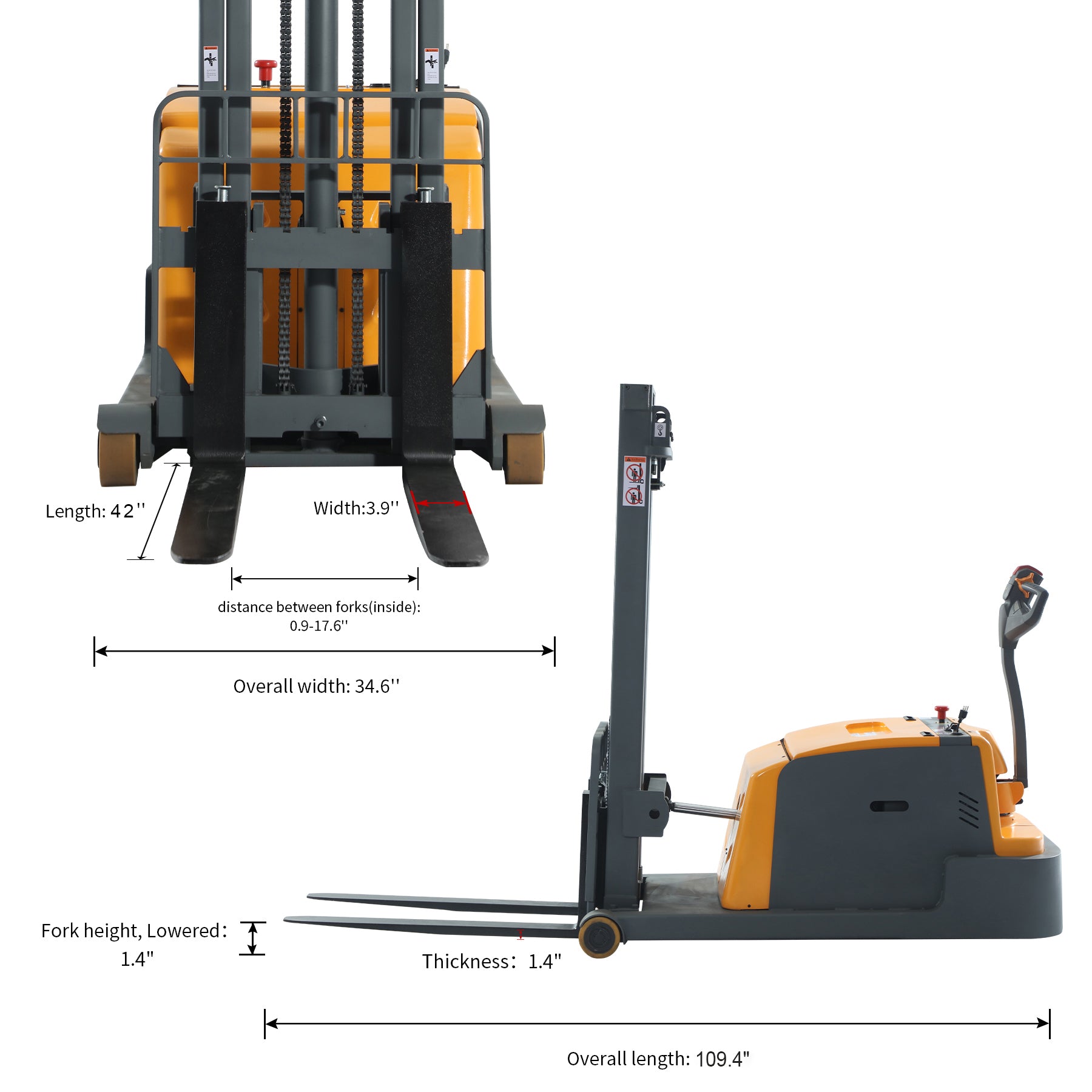

DIMENSIONS

Overall Length: 107.4"

Overall Width：34.6"

Recommended Aisle Width: 128'' for Pallet 1000x1200, 122'' for Pallet 800x1200

Turning Radius: 66.9"

Load Center: 19.7"

Gradeability (laden/unladen): 5%/10%

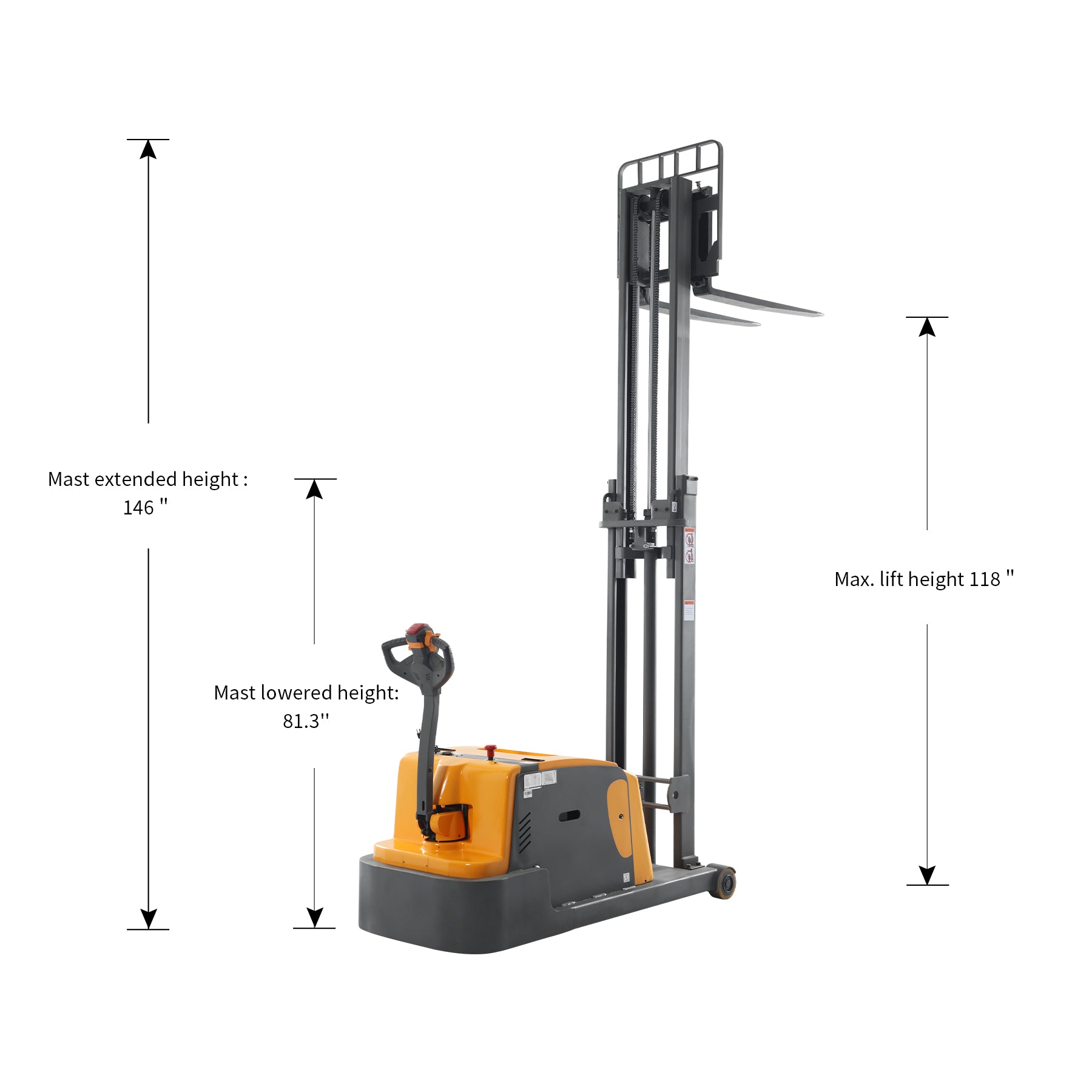

MAST

Mast Height Lowered: 81.3"

Mast Lifting Height: 118"

Mast Height Raised: 146.1"

Mast Tilt (forward/backward): 1°/3°

FORKS

Thickness: 1.4"

Width: 3.9"

Length: 37.4"

Fork Width Range: 8.7"-25.4"

FEATURES

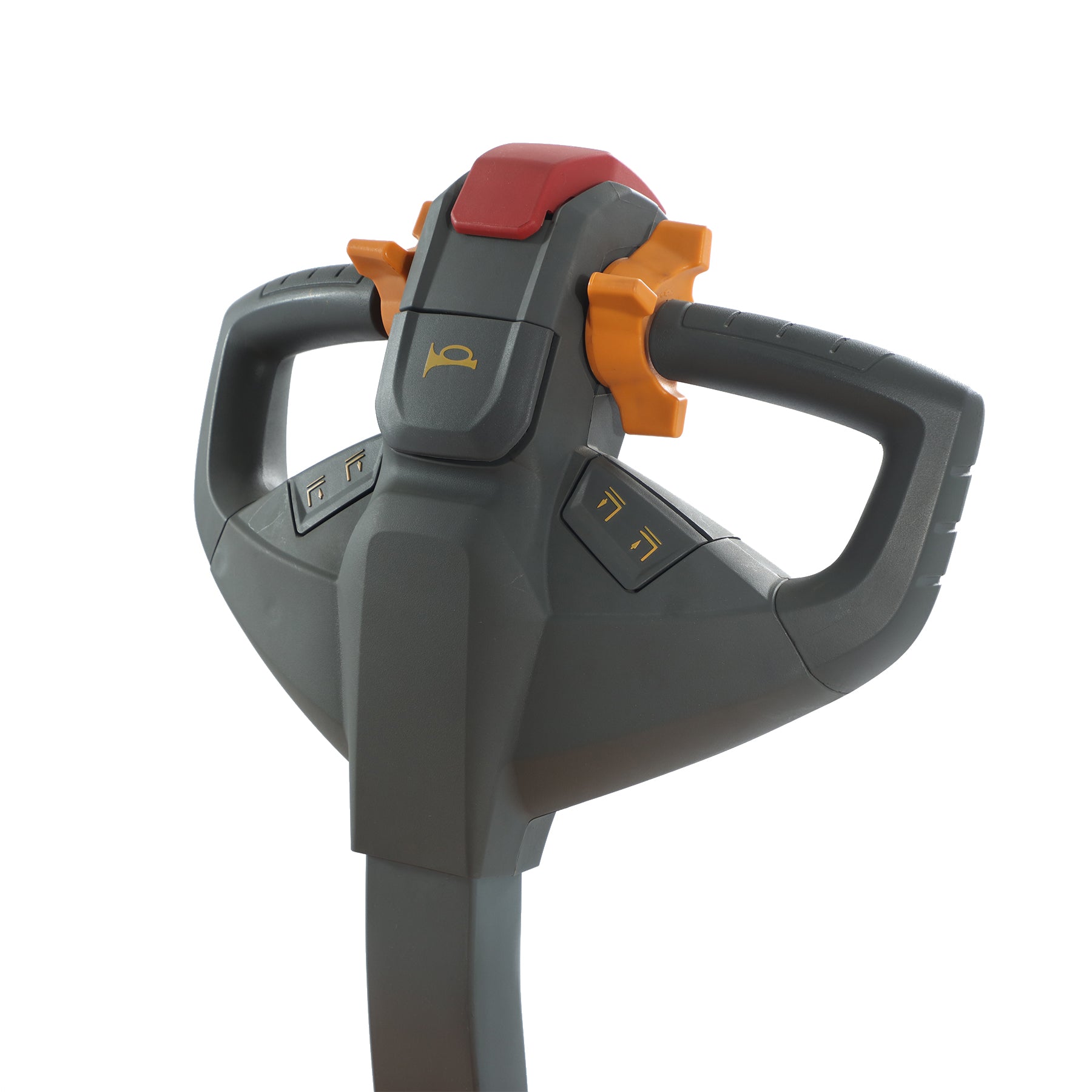

• Long handle structure makes truck steering light and flexible.

• Thoughtful mast design allows for wide viewing angles.

• The tilting fork system makes loading and stacking easier.

SPEED

• Lifting Speed (laden/unladen) : 3.1/4.7 inch/s

• Lowering speed (laden/unladen) 4.7/3.9 inch/s

OPERATING CONDITIONS AND ENVIRONMENTAL REQUIREMENTS

• The surface on which the vehicle operates should be flat and solid.

• The forklift is generally used in temperatures ranging from 32°F to 95°F.

• This vehicle must not be used in conditions requiring explosion-proof standards.
