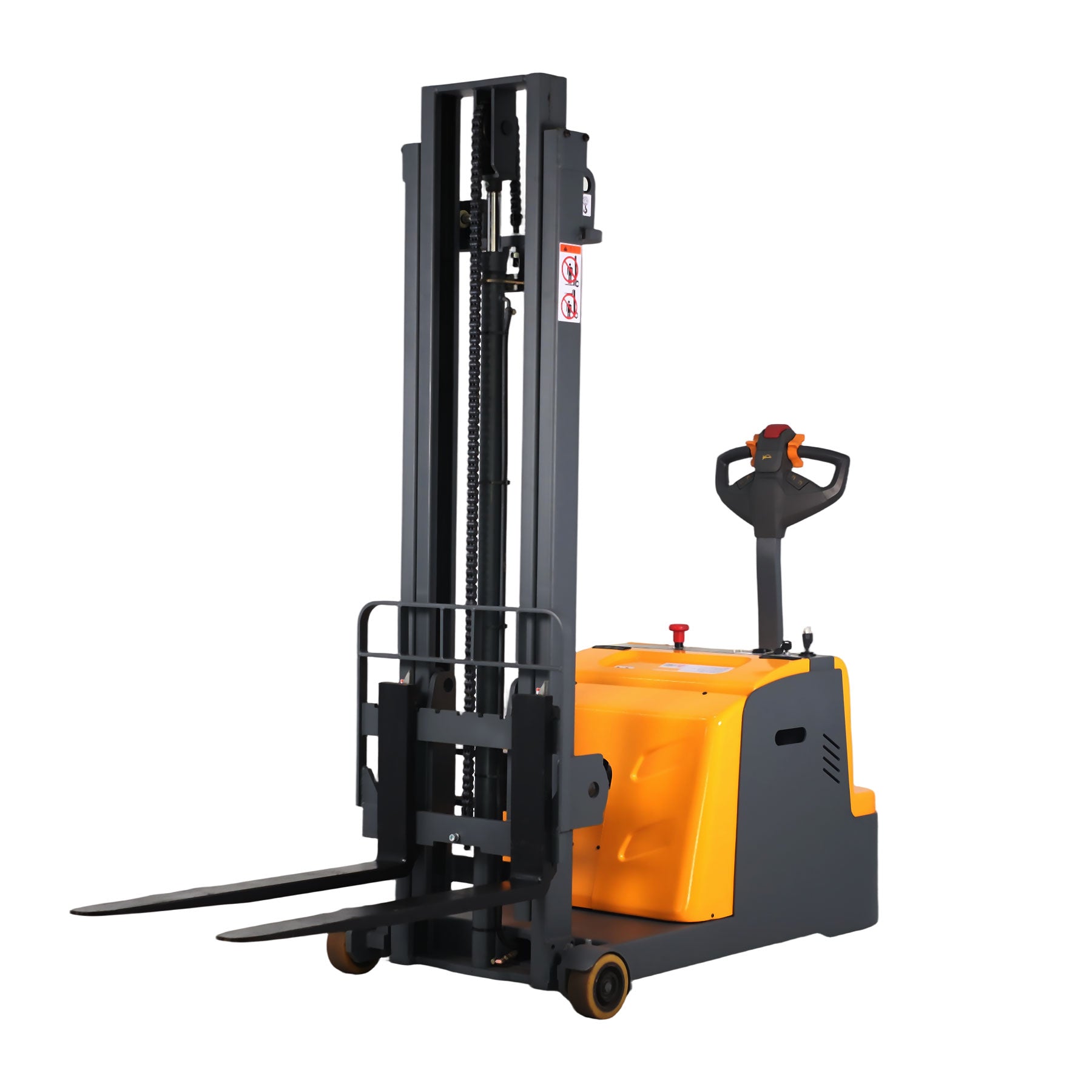

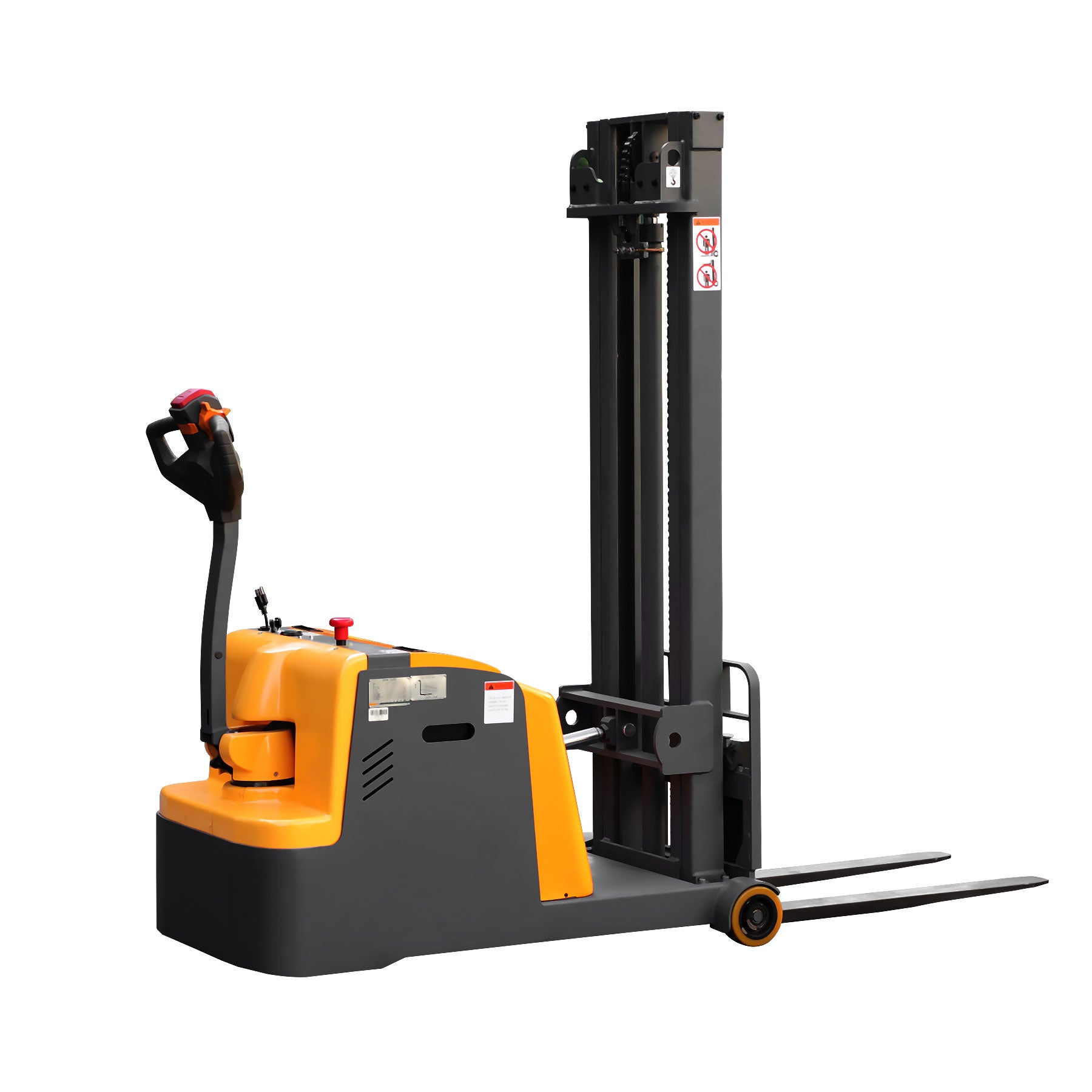

Counterbalanced Electric Stacker 2200lbs 98" High Local Pick-Up Y-3043
  • Adjustable forks and no legs, perfect for tight spaces near racks or trucks.
  • Upright walking function for narrow aisle maneuvering
  • Smooth steering with long handle design.
  • The tilting fork mechanism simplifies loading and stacking.
  • Quick 2-minute wheel replacement with horizontal top

Counterbalanced Electric Stacker 2200lbs 98" High Local Pick-Up Y-3043

Price:
$8,899.00
$8,899.00
Save 0
  • SKU:
    Y-3043

  • Shipping calculated based on your ZIP code

Counterbalanced Electric Stacker 2200lbs 98" High Local Pick-Up Y-3043

Counterbalanced Electric Stacker 2200lbs 98" High Local Pick-Up Y-3043

$8,899.00
$8,899.00
Description

  • 650-watt drive motor,  2,200-watt lift motor.
  • Perfect for approaching racks and trucks, as there are no straddle legs to obstruct to close approach.
  • With upright walking function, especially suitable for narrow aisle.
  • 2 minutes will replacement thanks to the wheel because of the upper horizontal structure design.
  • 4-5 hours service per charge: two 12-volt, 125 Ah rechargeable GEL batteries
  • 110V Built-in charger.

REPLACEMENT PARTS

MODEL NO. BATTERY TYPE BATTERY CAPACITY WT. (LBS) DIMENSIONS PRICE EACH 2 PCS PRICE
35302000054 Gel Battery 24V/125AH 115 10.2x6.6x8.5" $700 $1,400

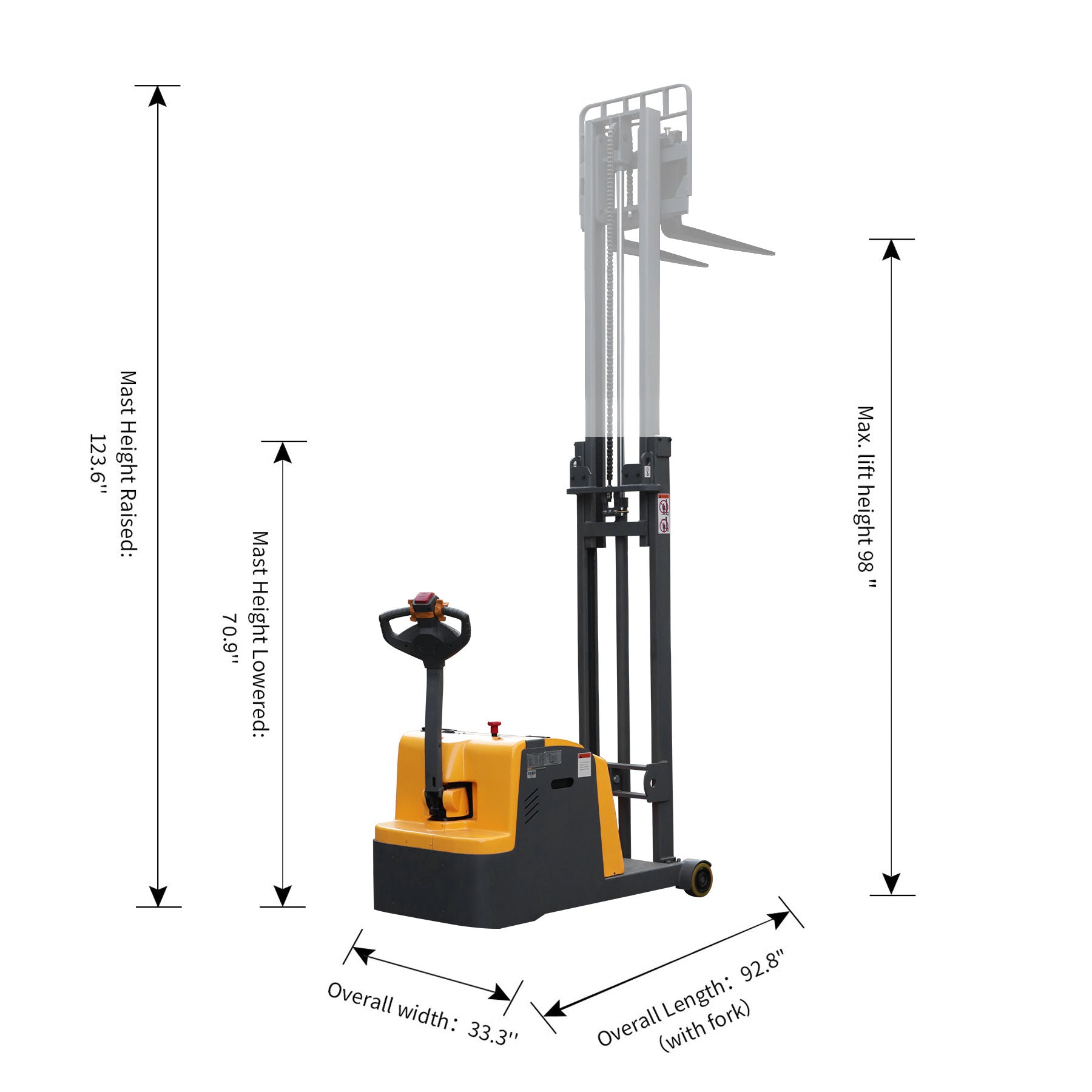

DIMENSIONS

  • Overall Length：92.8"
  • Overall Width: 33.3''
  • Recommended Aisle Width：113.38"/ 9.45 feet
  • Turning Radius：52.5"
  • Load Center: 15.7"
  • Gradeability(laden/unladen):6%/10%

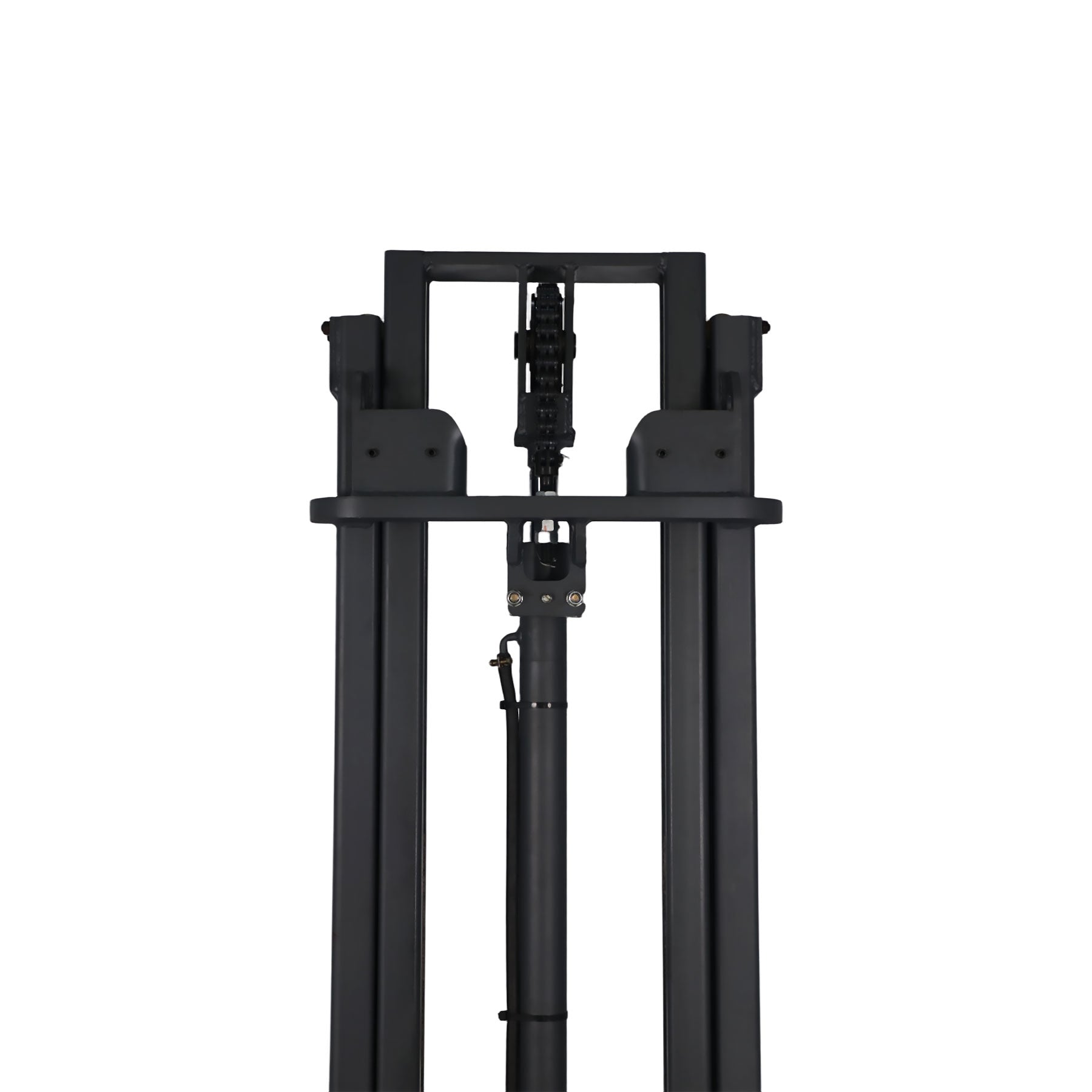

MAST

  • Mast Height Lowered: 70.9''
  • Mast Lifting Height: 98''
  • Mast Height Raised: 123.6''
  • Mast tilt(forward/backward):1°/3°

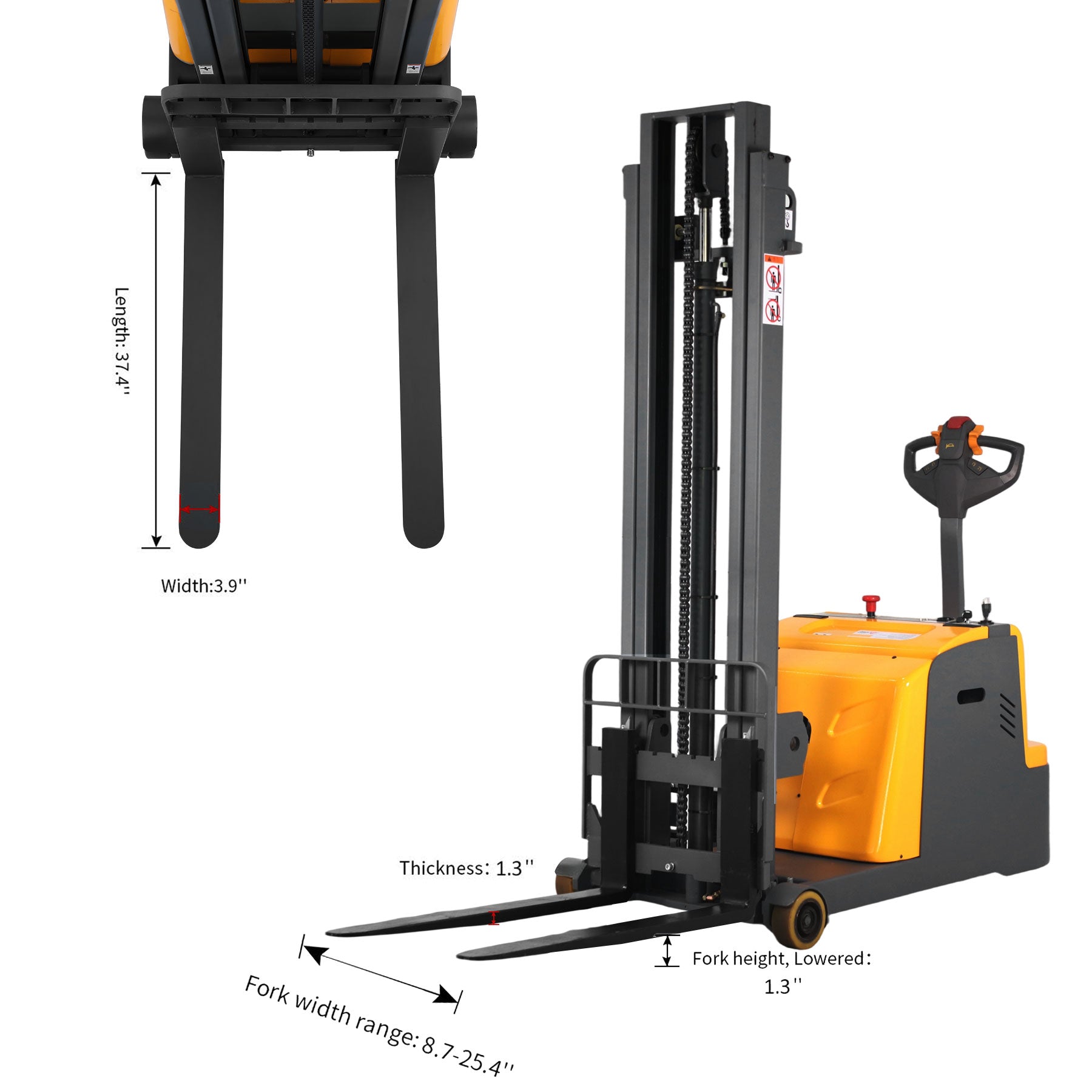

FORKS

  • Thickness: 1.3''
  • Width:3.9''
  • Length: 37.4"
  • Fork width range: 8.7-25.4''

FEATURES

  • Long handle structure makes truck steering light and flexible
  • Thoughtful mast design for wide viewing angles
  • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.

SPEED

  • Lifting speed(laden/unladen) : 4.3/5.9 inch/s
  • Lowering speed(laden/unladen) : 3.5/3.2 inch/s
Load Capacity 2,200 lbs
Load Center 15.7"
Turning Radius 52.5"
Aisle Width 113"
Fork Dimensions 37.4" L × 8.7–25.4" W × 1.3" Thick
Inside Fork Width 0.9"–17.6"
Overall Dimensions 92.7" L × 33.3" W
Max Lifting Height 98"
Mast Height (Lowered/Extended) 70.9" / 123.6"
Fork Lowered Height 1.3"
Battery 24V / 125Ah (Maintenance-Free)
Charger 24V / 10A Built-in
Travel Speed (L/U) 2.4 / 2.6 mph
Lifting Speed (L/U) 4.3 / 5.9 inch/s
Lowering Speed (L/U) 3.5 / 3.2 inch/s
Service Weight 2650 lbs

    Warranty

    Warranty

    1-Year Warranty (from delivery date):

    • First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
    • 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
    • After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).

    Special Warranty Terms:

    • Spare Parts: 3-month warranty.
    • Batteries: 6-month warranty.
    • Used Machines: 3-month parts-only warranty (no labor or returns).
    • Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.

    Battery Maintenance:
    To extend battery life and ensure proper function, charge the battery once a month when not in use.
